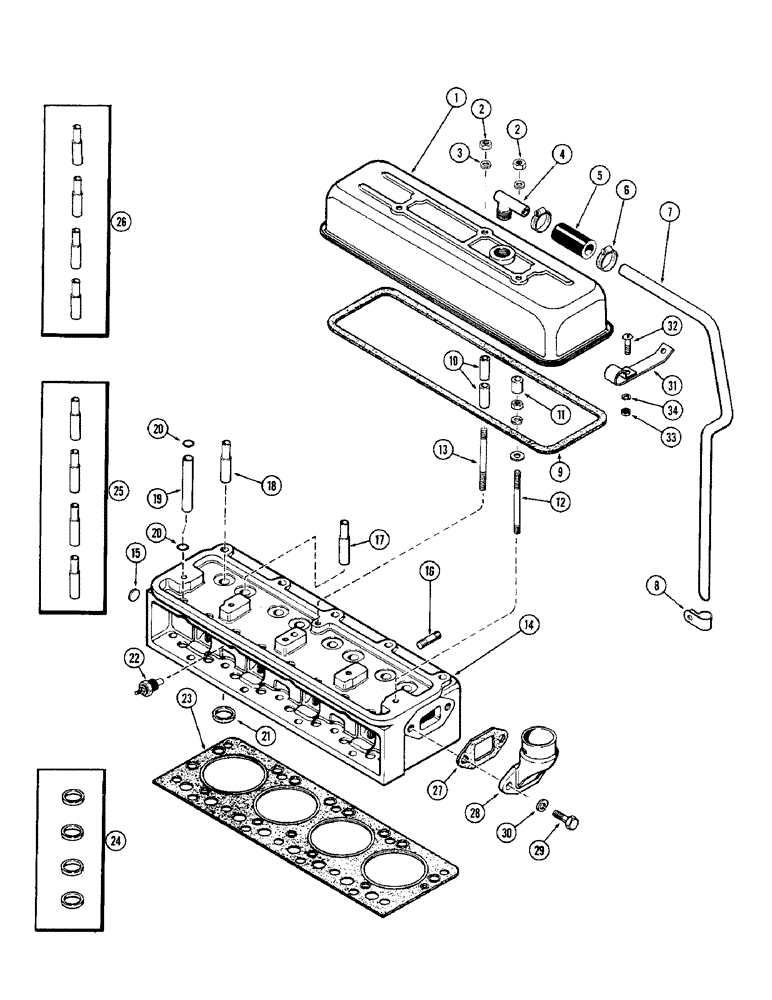

Запчасти Case IH M570AT (010) - CYLINDER HEAD ASSEMBLY, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

A37212

COVER

- valve and head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

3

A29277

WASHER

- plain, cover nut

1шт.

4

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

7

A37979

X

TUBE - breather

1шт.

8

D35026

CLAMP -, Serial Range: tube-block

1шт.

9

A30009

GASKET

-, Serial Range: cover-head

1шт.

10

A29999

SPACER

- cover (19/32" high)

2шт.

11

A30065

SPACER

- cover (17/32" high)

2шт.

12

G49505

STUD

- cover (3/8" x 4-5/8" w/2" thread)

2шт.

13

G49504

STUD

- cover (3/8" x 4-5/8" w/1" thrd.)

1шт.

14

G11874

HEAD (CYLINDER)

HEAD ASSY. - cylinder, Includes: Ref. 15 - 21

1шт.

15

41-18

PLUG

- rear (1-1/8" dia.)

1шт.

16

A29431

STUD

- manifold

7шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 25)

4шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 26)

4шт.

19

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube seal

16шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 24)

4шт.

22

A21462

SENDER UNIT

SENDER - heat gauge

1шт.

23

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

24

G11960

KIT

INSERT KIT - exhaust valve seat (Set of 4)

1шт.

25

G10269

KIT

GUIDE KIT - intake valve (Set of 4)

1шт.

26

A30270

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

27

A30003

GASKET

- water outlet mgt.

1шт.

28

G11965

ELBOW

- water, Serial Range: outlet-radiator

1шт.

29

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

A38134

SPRING

CLIP - breather tube

1шт.

32

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- mach., 1/4 x 1/2" N.C. rd. hd.

1шт.

33

25-104

NUT,1/4"-20, G5

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
