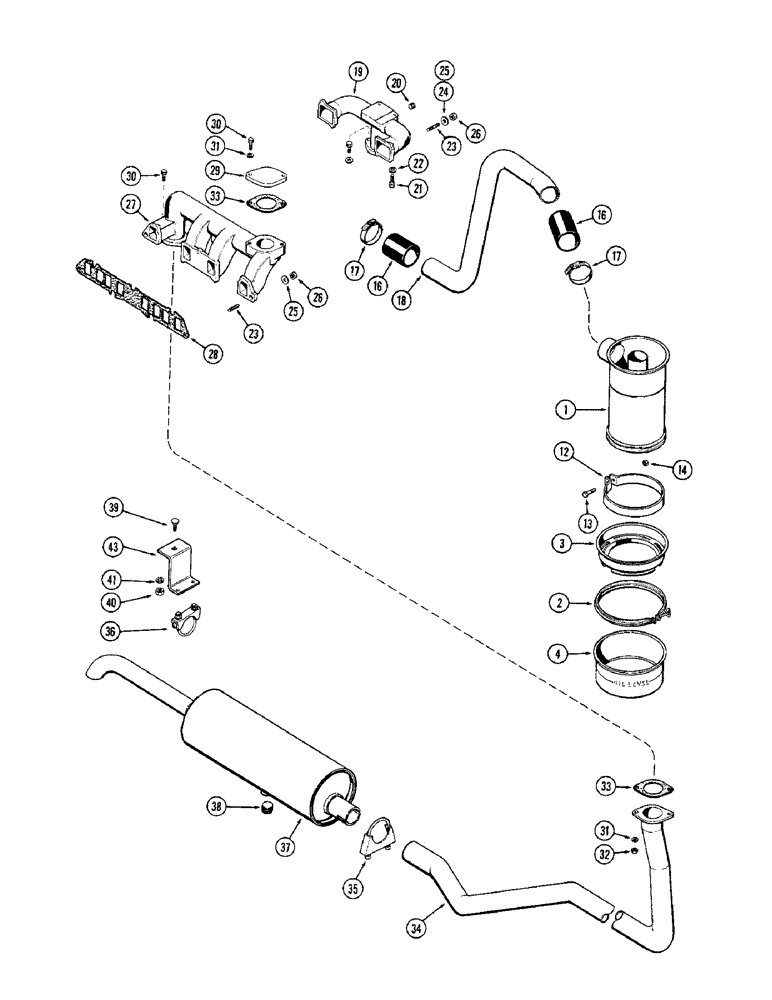

Запчасти Case IH M570AT (006) - AIR CLEANER, MANIFOLD, MUFFLER, (159) SPARK IGNITION ENGINE (02) - ENGINE

1

G45238

CLEANER ASSY. - air, Includes: Ref. 2 - 4

1шт.

2

G45153

CLAMP

- oil cup

1шт.

3

G46324

CUP

- oil, inner

1шт.

4

G46325

CUP

- oil, outer

1шт.

12

G15614

BAND - air cleaner mounting

1шт.

13

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- 1/4 x 1-3/4" rd. hd. mach.

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

16

G46257

HOSE - intake tube 2" ID x 2.375" OD

2шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

18

G46258

TUBE - air cleaner to carburetor 2" OD

1шт.

19

A37004

MANIFOLD

- intake

1шт.

20

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. hd.

1шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex. hd.

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A29431

STUD

- manifold to head (3/8 x 1-3/4")

7шт.

24

A30058

WASHER

- stud (13/32 I.D. x 7/8" O.D. x 1/8")

4шт.

25

195-25

WASHER,3/8"

3шт.

26

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf)

7шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

A30030

GASKET

-, Serial Range: manifold-head

1шт.

29

A38188

PLATE

COVER - exhaust opening

1шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover & exhaust pipe (3/8 x 1-1/2" N.C. hex.)

4шт.

31

195-25

WASHER,3/8"

4шт.

32

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf)

4шт.

33

G46853

MANIFOLD GASKET

- exhaust opening flange

2шт.

34

A38060

PIPE

- underneath exhaust

1шт.

35

G13184

CLAMP

- pipe to muffler (2" O.D.)

1шт.

36

L14262

CLAMP

- muffler rear (1-3/4" O.D.)

1шт.

37

A38736

MUFFLER

ASSY. - exhaust (includes tail pipe), Includes: Ref. 38

1шт.

38

222-1666

PLUG - pipe, 1" hex. socket hd.

1шт.

39

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

40

25-108

NUT,1/2"-13, G5

- 3/8" N.C. hex.

1шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

A38090

SUPPORT - muffler

1шт.
