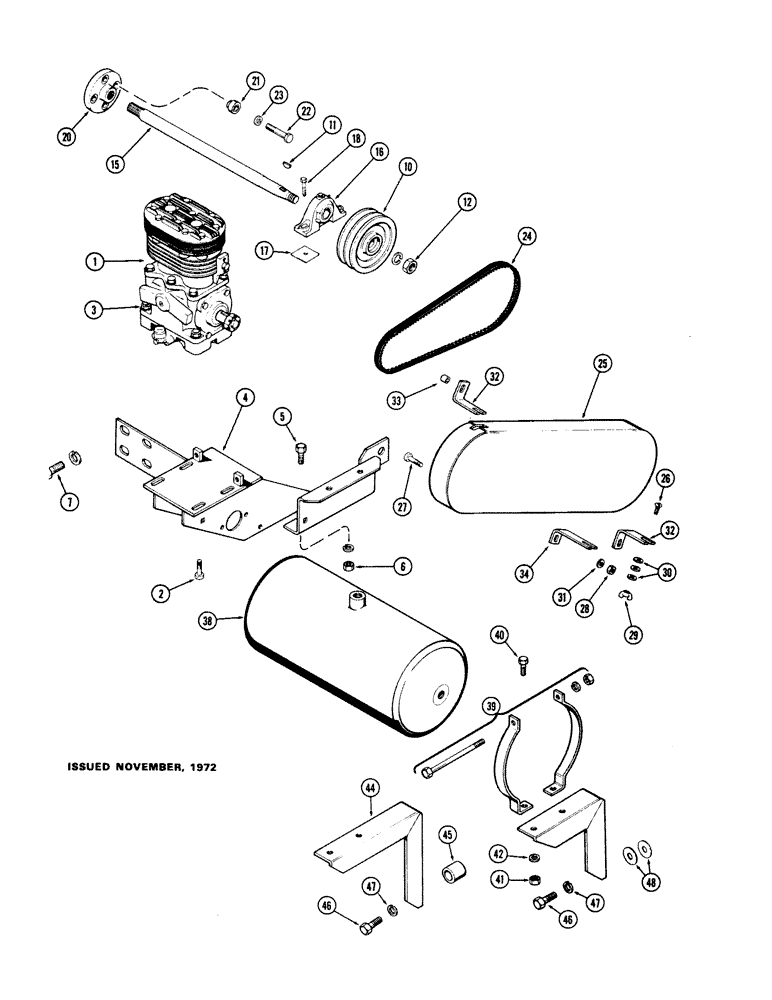

Запчасти Case IH M570 (104) - AIR COMPRESSOR AND RESERVOIR, TRAILER AIR BRAKES (09) - CHASSIS/ATTACHMENTS

1

A38698

COMPRESSOR ASSY. - air brake

1шт.

2

14-736

BOLT,Hex, 7/16" - 20 x 2-1/4", Gr 5

- 7/16 x 2-1/4" N.F. hex.

4шт.

3

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

4

A38680

PLATFORM - compressor mounting

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

7

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

10

G1408

PULLEY - drive, air compressor

2шт.

11

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Pulley #15, 1/4" x 1"

2шт.

12

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. hex.

2шт.

15

A38678

SHAFT - pulley drive

1шт.

16

G13627

BEARING - front, pulley drive shaft

1шт.

17

T10632

SHIM - bearing adjusting

1шт.

18

11-624

BOLT

- 3/8 x 1-1/2" N.C. rd. hd. sq. nk.

2шт.

20

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - pulley shaft

1шт.

21

G36905

BLOCK

BUSHING - mounting bolt

4шт.

22

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-7

LOCK WASHER,7/16"

4шт.

24

A38866

SET OF BELTS,0.71" W x 52.50" L

SET OF 2 BELTS , Drive, Compressor pulley 0.71" W x 52.50" L

1шт.

25

G30562

GUARD ASSY. - drive belt

1шт.

26

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

5шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

29

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" N.C.

3шт.

30

195-21

WASHER,5/16"

- plain () (11/32" I.D. x 11/16" O.D. x 13/16") 5/16"

6шт.

31

92-5

LOCK WASHER,5/16"

6шт.

32

A38679

BRACKET - belt guard, short

2шт.

33

A38843

SPACER - belt guard bracket

1шт.

34

A38842

BRACKET - belt guard, long

1шт.

38

G45426

RESERVOIR ASSY.

RESERVOIR - air compressor

1шт.

39

G45427

BRACKET

ASSY. - reservoir (Incl. bolt & nut)

2шт.

40

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8 x 1" N.F. hex.

4шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

A38987

SUPPORT - front, reservoir

1шт.

44

A38988

SUPPORT - rear, reservoir

1шт.

45

G49636

SPACER - rear support (15/16" O.D. x 1-1/2" high)

1шт.

46

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

3шт.

46

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.C. hex.

1шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

48

195-108

WASHER,5/8"

- spacer, 11/16 x 1-3/4 x 9/64"

4шт.
