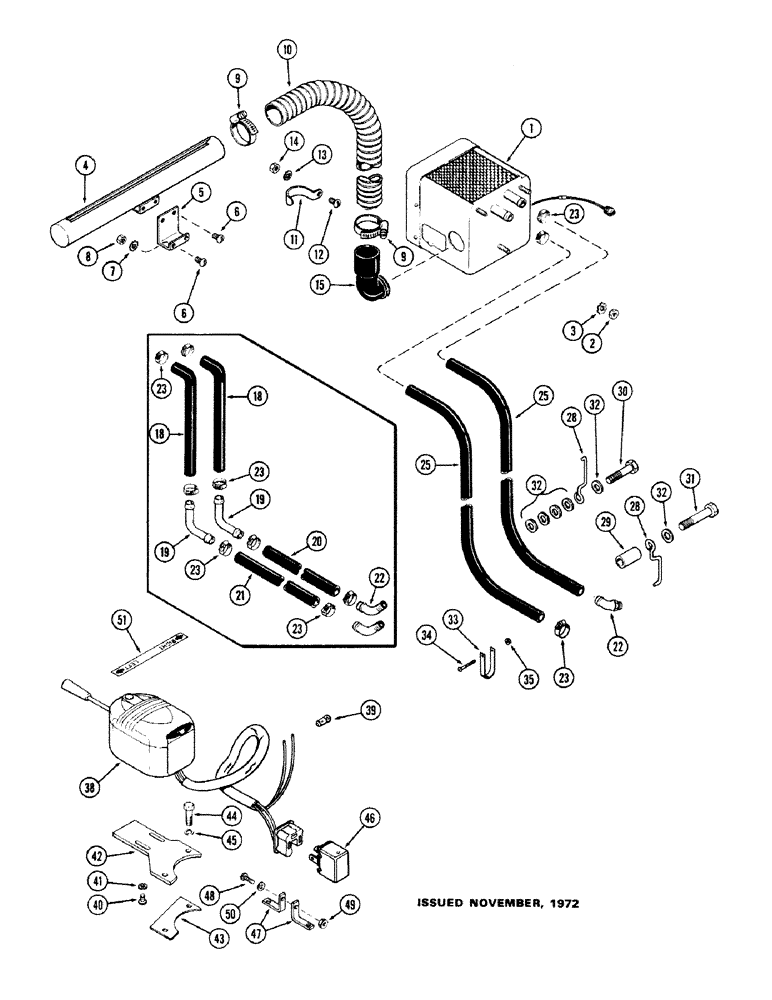

Запчасти Case IH M570 (100) - HEATER AND DEFROSTER (09) - CHASSIS/ATTACHMENTS

1

A44322

SPARE PART

HEATER ASSY. - cab

1шт.

2

9635082

NUT,5/16" - 18, Gr 5

3шт.

3

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

3шт.

4

A43221

DEFROSTER - cab windshield

1шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - adapter, defroster

1шт.

6

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

- Sems, 1/4 x 1/2" N.C. truss hd.

4шт.

7

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

Assy - defroster tube #36, 1.81/2.75 Type F Worm

2шт.

10

A44332

TUBE - air, defroster (2" I.D. x 36" lg.)

1шт.

11

A44324

SPARE PART

CLAMP - defroster tube

1шт.

12

175-300

SCREW - mach., #10 x 3/4" N.F. truss hd.

1шт.

13

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - lock, #10 int. - ext. Shakeproof

1шт.

14

129-37

NUT,#10-32

1шт.

15

A44323

SHIELD

ELBOW - defroster, Serial Range: tube-heater

1шт.

18

A44325

HOSE

ELBOW - heater (5/8" I.D. hose) (See ref. 25)

2шт.

19

A44326

ELBOW

- hose connector (See ref. 25)

2шт.

20

A44328

HOSE - lower, heater to engine (53") (See ref. 25)

1шт.

21

A44329

HOSE

- upper, heater to engine (60") (See ref. 25)

1шт.

22

A44327

ADAPTER - heater hose (45 degrees)

2шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP ASSY. - heater hose (1-3/16" to 1-3/4")

6шт.

25

T39303

HEATER HOSE,0.62" ID x 67.00"

HOSE - Heater (Used for service) (Cut to 66" to replace lower hose & 61" to replace upper hose. Also replaces A44325 & A44326 elbows) 0.62" ID x 67.00"

2шт.

28

A36402

SUPPORT

CLIP - heater hose support

2шт.

29

A38141

SPACER - hose clip (Front clip)

1шт.

30

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Rear clip) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

1шт.

31

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

32

195-41

WASHER,5/8"

6шт.

33

G15894

STRAP - tie, heater hose

1шт.

34

173-219

SCREW - mach., #10 x 1-1/2" N.F. rd. hd.

1шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- Keps, #10 N.F.

1шт.

38

A51241

SWITCH ASSY. - turn signal (12 volt)

1шт.

39

B50213

BULB

- signal switch (12 volt #53), turn

1шт.

40

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- mounting, #8-32 x 1/2" Phillips pan hd. , turn signal switch

2шт.

41

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, , Turn signal switch Ext, #8

2шт.

42

A51238

PLATE - mounting, signal switch, turn

1шт.

43

A51239

SHIM - switch mounting, turn signal

2шт.

44

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Turn signal switch Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

45

92-5

LOCK WASHER,5/16"

turn signal switch 5/16"

2шт.

46

A42893

FLASHER - signal switch (12 volt), turn

1шт.

47

A51240

BRACKET - flasher mounting , turn signal switch

2шт.

48

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- mach., #6-32 x 1/2" Phillips pan hd. (Flasher to brkt.) , turn signal switch

1шт.

49

129-15

NUT,#6-32

Turn signal switch #6-32

1шт.

50

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, , Turn signal switch #6

1шт.

51

321-2471

DECAL - turn signal switch (Right-Left)

1шт.
