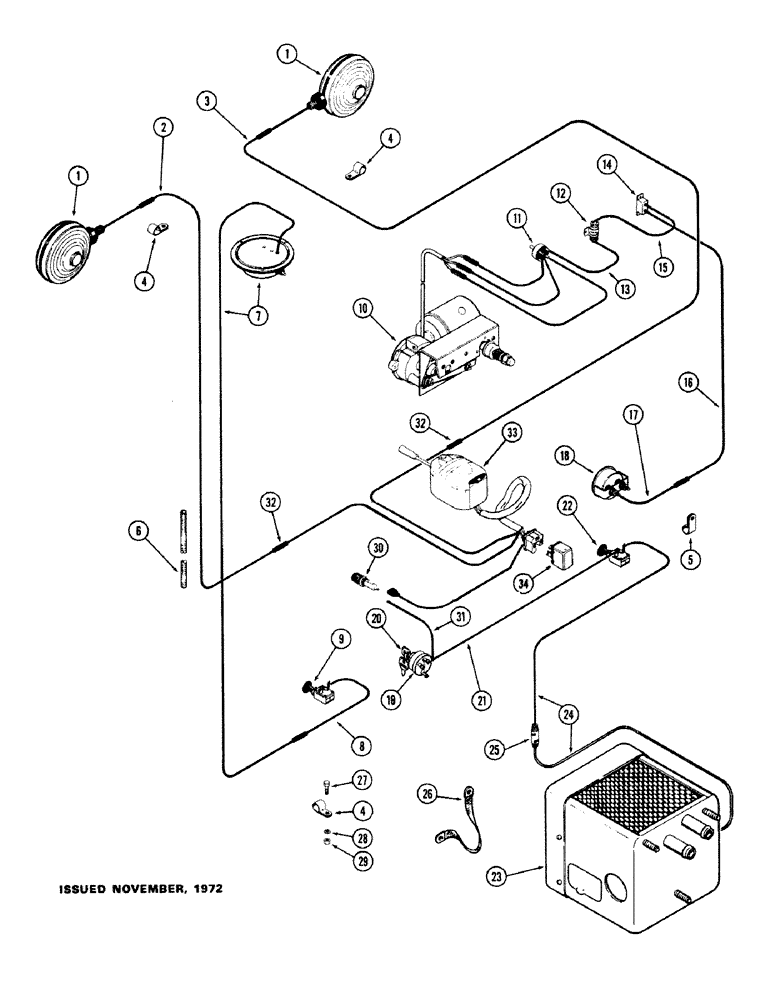

Запчасти Case IH M570 (096) - CAB ELECTRICAL (09) - CHASSIS/ATTACHMENTS

1

A34853

LAMP

ASSY. - turn signal (Repairs Page 102)

2шт.

2

A38121

WIRE - turn lamp R.H. to switch (Red - 106" lg.)

1шт.

3

A38122

WIRE - turn lamp L.H. to switch (Green - 106" lg.)

1шт.

4

A36402

SUPPORT

CLIP - wire retainer

3шт.

5

A38799

CLAMP

CLIP - wire retainer

1шт.

6

A43219

LOOM - cab wiring (38.5" lg.)

2шт.

7

A38120

LIGHT ASSY. - dome, cab (w/wire)

1шт.

193-525

SCREW - Sems, #10 x 3/8" rd. hd. (Type Z) (Not illust.)

3шт.

8

A11945

WIRE - light swt. to dome conn. (Black)

1шт.

9

A39887

SWITCH

- light

1шт.

10

A36092

MOTOR ASSY. - windshield wiper

1шт.

11

A36120

SWITCH ASSY. - wiper

1шт.

12

A43213

CAPACITOR

- electrical

1шт.

13

A36124

WIRE - wiper swt. to capacitor (3")

1шт.

14

A36122

BREAKER

- circuit

1шт.

15

A36125

WIRE - capacitor to circuit breaker aux. term (2-1/4")

1шт.

16

A36127

WIRE ASSY. - circuit breaker to amm. wire (67-1/2")

1шт.

17

A36067

WIRE - ammeter to wiper wire

1шт.

18

A38046

AMMETER - electrical

1шт.

19

A24511

SWITCH

ASSY - starting (Includes keys) (Gas)

1шт.

20

A24509

KEY

- ignition switch (Set of 2)

1шт.

21

A51477

WIRE - ignition switch to heater switch

1шт.

22

A44321

SPARE PART

SWITCH ASSY. - heater

1шт.

23

A44322

SPARE PART

HEATER ASSY. - cab (12 volt) (Repairs Page 100)

1шт.

24

A44336

WIRE ASSY. - heater to heater switch

1шт.

25

223-16

FUSE - electrical (6 amp.)

1шт.

26

A36141

CABLE - strap, cab grounding to inst. panel

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

28

13-44

WASHER - lock, 1/4" int. - ext. Shakeproof

1шт.

29

25-104

NUT,1/4"-20, G5

1шт.

30

A22874

HOLDER

ASSY. - fuse (See Page 34)

1шт.

31

A38921

WIRE - fuse to ignition switch (Red 12")

1шт.

32

F21330

CONNECTOR - wire, single

4шт.

33

A51241

SWITCH ASSY. - turn signal (See Page 100)

1шт.

34

A42893

FLASHER - turn signal lamp (12 volt)

1шт.
