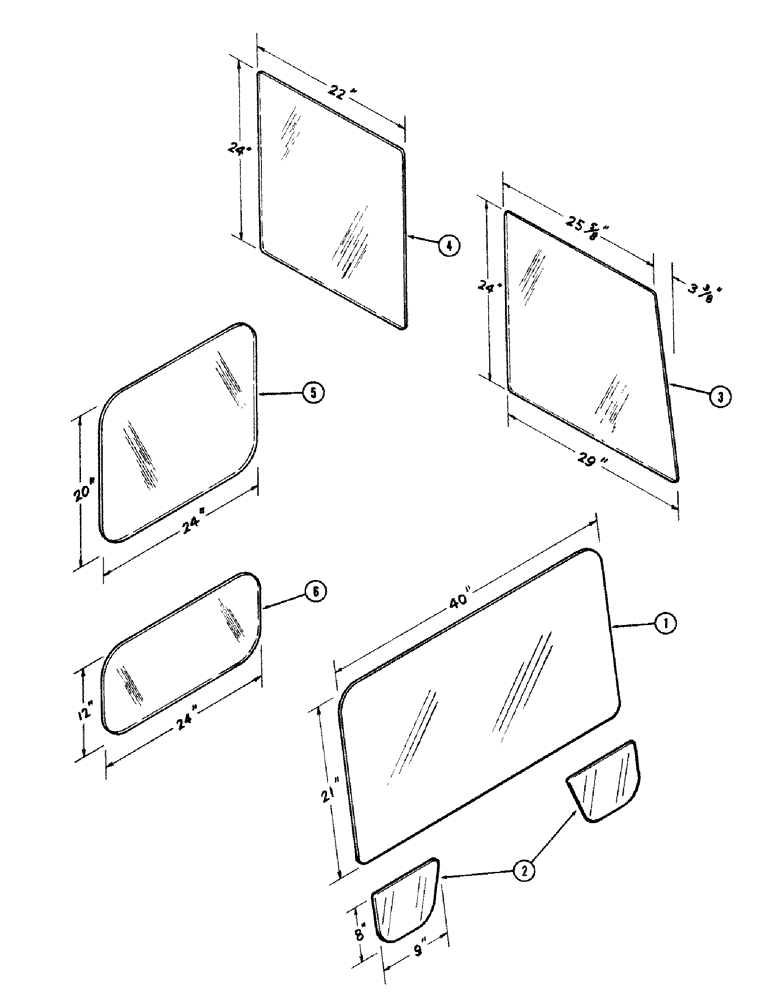

Запчасти Case IH M570 (089A) - CAB GLASS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield (21" x 40" x 7/32" clear tempered w/2-7/8" corner rad.)

1шт.

2

NSS

NOT SOLD SEPARAT

GLASS - front lower (8" x 9" x 7/32" clear tempered w/3/16" corner rad.)

2шт.

3

NSS

NOT SOLD SEPARAT

GLASS - side front (25-5/8 x 24 x 29" x 7/32" clear tempered w/1/4" corner rad.)

2шт.

4

NSS

NOT SOLD SEPARAT

GLASS - side rear (22" x 24" x 7/8" clear tempered w/1/4" corner rad.)

2шт.

5

NSS

NOT SOLD SEPARAT

GLASS - upper, rear door (20 x 24" 7/32" clear tempered w/2-7/8" radius)

1шт.

6

NSS

NOT SOLD SEPARAT

GLASS - lower, rear door (12" x 24" x 7/32" clear tempered w/2-7/8" corner rad.)

1шт.
