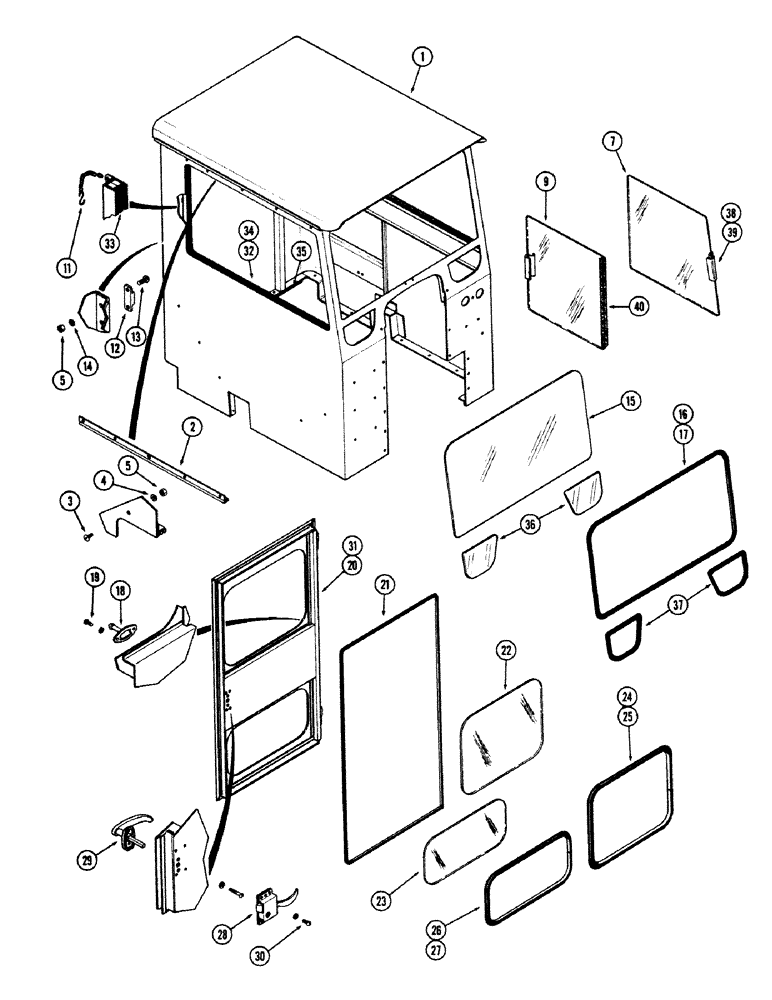

Запчасти Case IH M570 (088) - CAB, REAR DOOR AND GLASS (09) - CHASSIS/ATTACHMENTS

1

A38968

CAB - operator's

1шт.

2

A43208

RETAINER ASSY. - upper, R.H. sliding window

1шт.

2

A43209

RETAINER

ASSY. - upper, L.H. sliding window

1шт.

3

175-436

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- mach. 1/4" -20 x 5/8" N.C. truss hd.

10шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

5

25-104

NUT,1/4"-20, G5

12шт.

7

NSS

NOT SOLD SEPARAT

GLASS - sliding, front (Order from Page 89A)

1шт.

9

NSS

NOT SOLD SEPARAT

GLASS - sliding, rear (Order from Page 89A)

1шт.

11

NSS

NOT SOLD SEPARAT

CHAIN ASSY. - sliding glass lock

4шт.

12

A36080

PLATE

- striker, door latch

1шт.

13

68-410

SCREW - mach., 1/4" -20 5/8" N.C. oval hd.

2шт.

14

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int. - ext. Shakeproof

2шт.

15

NSS

NOT SOLD SEPARAT

GLASS - windshield (Order from Page 89A)

1шт.

16

A38095

SEAL

SETTING - windshield glass (156" lg.)

1шт.

17

A38096

STRIP

- filler, windshield (156" lg.)

1шт.

18

A36089

LATCH

PLUNGER - door check

1шт.

19

173-239

SCREW

- mach., 1/4" x 1" N.C. rd. hd.

2шт.

20

A38115

DOOR ASSY.

- rear (Complete)

1шт.

21

A42504

TYRE/TIRE

SEAL - weather, door (Roll)

1шт.

22

NSS

NOT SOLD SEPARAT

GLASS - rear door upper (Order from Page 89A)

1шт.

23

NSS

NOT SOLD SEPARAT

GLASS - rear door lower (Order from Page 89A)

1шт.

24

A38116

STRIP

SETTING - upper glass (91" lg.)

1шт.

25

A38117

MOLDING

STRIP - filler, glass (91" lg.)

1шт.

26

A38116

STRIP

SETTING - lower glass (91" lg. - cut to 72" lg.)

1шт.

27

A38117

MOLDING

STRIP - filler, glass (91" lg. - cut to 72" lg.)

1шт.

28

A36087

SPLIT PIN/SAFETY PIN

LATCH ASSY. - rear door

1шт.

29

A36088

HANDLE - door latch

1шт.

30

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- mach. #10-32 x 1/2" N.F. truss hd.

4шт.

31

A38118

DOOR

- rear, cab

1шт.

32

A38097

CHANNEL - glass, lower (46-1/4")

2шт.

33

A38098

CHANNEL - glass, front rear side (24")

4шт.

34

A38100

STRIP - plastic, channel (46-1/4")

2шт.

35

A38114

SEAL - weather (54" lg.)

1шт.

36

NSS

NOT SOLD SEPARAT

GLASS - lower front (Order from Page 89A)

2шт.

37

NSS

NOT SOLD SEPARAT

SEAL - lower window

2шт.

38

A43253

HANDLE

PULL - finger, sliding window

4шт.

39

A43252

HANDLE

SEAL - holding, finger pull (Under pull)

4шт.

40

A43254

SEAL - weather, front of rear sliding window

2шт.
