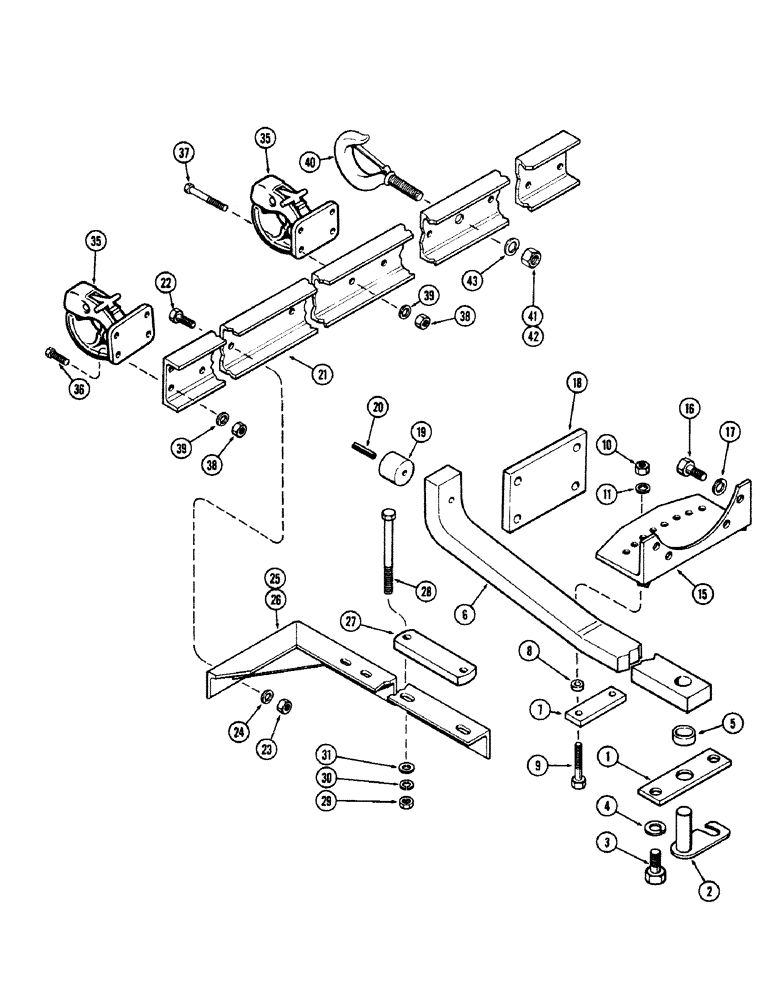

Запчасти Case IH M570 (086) - DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

G10617

SUPPORT

- front, drawbar

1шт.

2

G14403

PIN

- pivot, drawbar

1шт.

3

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

A38663

PULLEY

SPACER - drawbar pivot

1шт.

6

A38676

DRAWBAR

1шт.

7

G15839

SUPPORT - lower rear, drawbar

1шт.

8

A38699

SPACER - rear support (1/2" I.D. x 1" O.D. x 1/4" high)

2шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2 N.C. hex.

2шт.

10

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

15

G30266

SUPPORT

- rear, drawbar

1шт.

16

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

A38664

PLATE - clamp, drawbar to pintle bar

1шт.

19

A38713

SPACER - drawbar to pintle bar

1шт.

20

138-175

LOCK PIN,3/8" x 1 5/8", Slotted

Pin, 3/8" x 1 5/8", Slotted

1шт.

21

G15867

BAR - pintle

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

23

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

G30558

SUPPORT - R.H., pintle bar

1шт.

26

G30559

SUPPORT - L.H., pintle bar (R.H. shown)

1шт.

27

A29386

CLAMP - support, pintle bar

2шт.

28

13-10112

SCREW,Hex, 5/8" - 11 x 7", Gr 5

BOLT, MACHINE, Hex, 5/8"-11 x 7", G5

4шт.

29

25-1010

NUT,5/8"-11, G5

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

195-42

WASHER - plain, 11/16" I.D. x 1-1/2" O.D. x 5/32"

4шт.

35

G45406

PIN

TLE - towing

3шт.

36

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

37

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

38

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

12шт.

39

92-8

LOCK WASHER,1/2"

12шт.

40

G45417

HOOK - safety (w/air compressor only)

1шт.

41

25-1014

NUT,7/8"-9, G5

1шт.

42

25-1414

NUT,Jam, 7/8"-9, G5

- jam, 7/8" N.C. hex.

1шт.

43

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.
