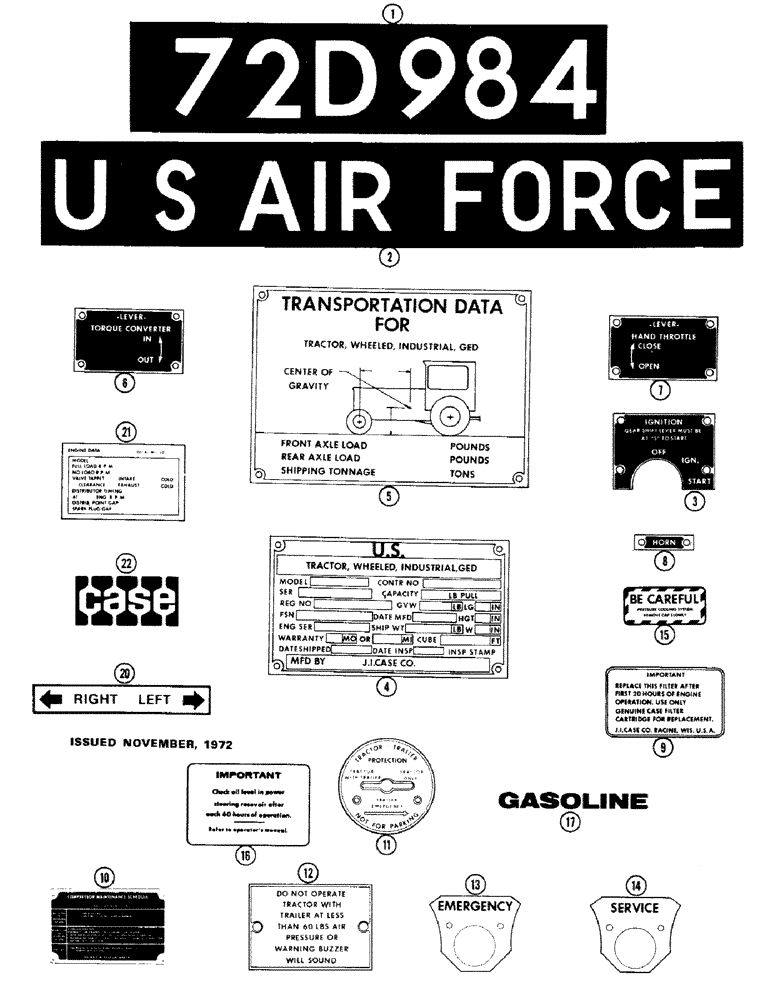

Запчасти Case IH M570 (084) - DECALS AND INSTRUCTION PLATES (09) - CHASSIS/ATTACHMENTS

1

321-2188

DECAL - registration, No. 72D321 thru 72D445

3шт.

1

321-2447

DECAL - registration, No. 72D984 thru 72D110

3шт.

2

321-1624

DECAL - reflective red, U.S. Air Force

3шт.

3

A35996

PLATE - starting instruction

1шт.

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - mach., #10 x 1/4 rd. hd. self tapping

4шт.

4

A51389

PLATE - identification

1шт.

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- mach., #6-32 x 1/2" rd. hd.

4шт.

193-1003

NUT,Keps, w/LW,#6-32

- hex., #6-32 Keps

4шт.

5

A38054

PLATE - transportation data

1шт.

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- mach., #6-32, 1/2" rd. hd.

4шт.

193-1003

NUT,Keps, w/LW,#6-32

- hex., #6 Keps

4шт.

6

A36048

PLATE - instruction, torque converter

1шт.

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - mach., #10 x 1/4" rd. hd. self tapping

4шт.

7

A24678

PLATE - throttle instruction

1шт.

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - mach., #10 x 1/4" rd. hd. self tapping

4шт.

8

A36052

PLATE - identification, horn button

1шт.

187-570

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - mach., #10 x 1/4" rd. hd. self tapping

2шт.

9

321-367

DECAL

- oil filter

1шт.

10

A38777

PLATE - instruction, air compressor

1шт.

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- mach., #6-32 x 1/2" rd. hd.

4шт.

193-1003

NUT,Keps, w/LW,#6-32

- hex., #6-32 Keps

4шт.

11

A38731

PLATE - dial, control valve (On panel)

1шт.

12

A38733

PLATE - instructions, air brake (On panel)

1шт.

13

G46366

TAG - emergency coupling, air brake

2шт.

14

G46367

TAG - service coupling, air brake

2шт.

15

321-122

DECAL

- pressure cap warning

1шт.

16

321-695

DECAL

- power steering reservoir

1шт.

17

321-18

DECAL

- "Gasoline" (Fuel tank)

1шт.

20

321-2471

DECAL - turn signal switch

1шт.

21

321-1358

DECAL

- engine data (On valve cover)

1шт.

22

321-1334

DECAL

- "Case" logo (On grille cap)

1шт.
