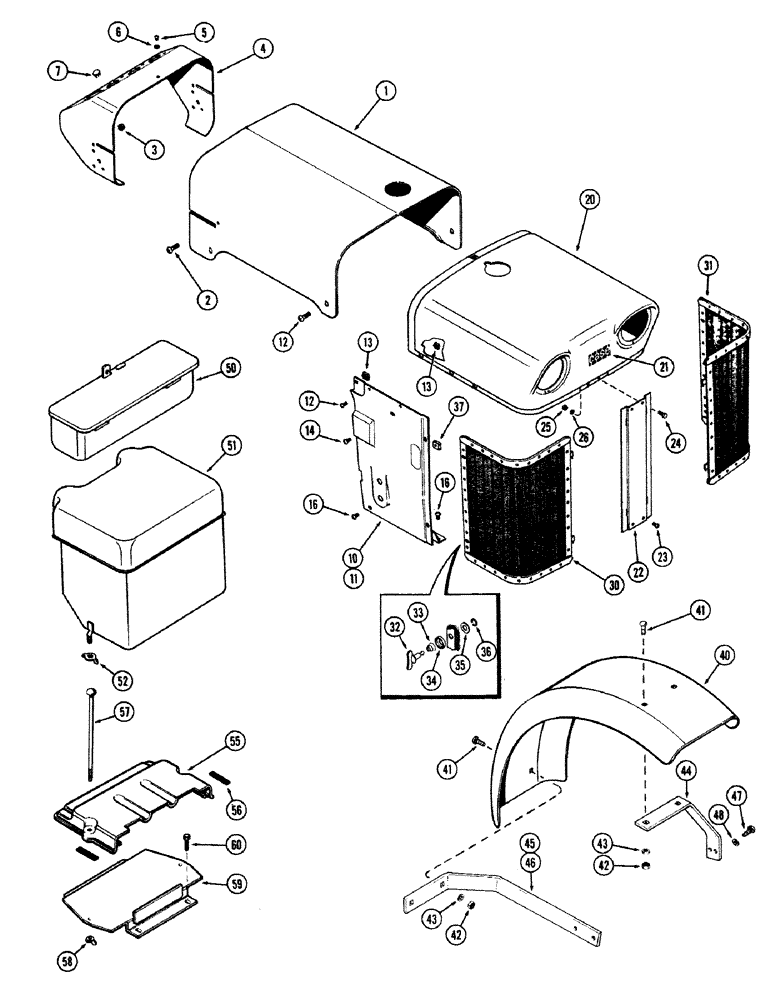

Запчасти Case IH M570 (082) - HOOD, GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A37822

engine

1шт.

2

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

5/16 x 5/8" truss hd.

2шт.

3

131-123

NUT,Ret, 5/16"-24

cage, 5/16" N.F.

2шт.

4

A39199

instrument

1шт.

5

175-431

1/4 x 3/8" truss hd.

3шт.

6

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

lock, 1/4" int. - ext. Shakeproof

3шт.

7

205-21

CAPSCREW

PLUG - button, (1/2" hole)

4шт.

7

205-17

button (13/32" hole)

6шт.

10

A38828

PANEL - radiator, R.H. side

1шт.

11

A36681

radiator, L.H. side (R.H. shown)

1шт.

12

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

1/4 x 1/2" N.C. truss hd.

6шт.

13

131-102

SPRING NUT,Ret, 1/4"-20

4шт.

14

174-429

SCREW - 5/16 x 5/8" N.F. truss hd.

2шт.

16

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

5/16 x 5/8" N.C. truss hd.

4шт.

20

A38983

grille, radiator

1шт.

21

321-1334

DECAL

"Case" logo

1шт.

22

G30275

center, radiator grille

1шт.

23

174-405

SCREW - 1/4 x 1/2" N.C. truss hd.

2шт.

24

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

1/4 x 3/4" N.C. truss hd.

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

A36686

GRILLE

screen, R.H.

1шт.

31

A36687

screen, L.H.

1шт.

32

A32881

STUD

lock, grille screen

4шт.

33

A32882

VALVE SPRING

lock stud

4шт.

34

A32883

WASHER

wear, grille stud

4шт.

35

A34012

WASHER

grille stud (5/16 x 3/4 x 13/64")

4шт.

36

NLS

NO LONGER SERVICED

RING - snap, grille stud

4шт.

37

A36042

CLIP

RECEPTACLE - grille stud

4шт.

40

A51332

FENDER - front wheel, R.H. & L.H.

2шт.

41

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

5/16 x 3/4" rd. hd. sq. nk., FRONT FENDERS

8шт.

42

9635082

NUT,5/16" - 18, Gr 5

Front Fenders 5/16"-18, G5

8шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Front fenders 5/16"

8шт.

44

A51328

upper, R.H. fender, FRONT FENDERS

1шт.

44

A51329

upper, L.H. fender (R.H. shown), FRONT FENDERS

1шт.

45

A51470

lower, R.H. fender, FRONT FENDERS

1шт.

46

A51471

lower, L.H. fender (R.H. shown), FRONT FENDERS

1шт.

47

71-614

SCREW - 3/8 x 7/8" N.C. filister hd., front fenders

8шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Front fenders 3/8"

8шт.

50

A36024

ASSY. - BATTERY COVER

1шт.

51

G30557

COVER ASSY. - battery (w/cab), TOOL BOX

1шт.

52

G49020

NUT

wing, 5/16" N.C., Battery cover & tool box

2шт.

55

G30268

COVER

(w/o cab), Battery & tool box

1шт.

56

G46164

insulator (2" long), Battery cover & tool box

2шт.

57

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

cover, 5/16 x 9" N.C. rd. hd. sq. nk., Battery cover & tool box

2шт.

58

G49020

NUT

wing, 5/16" N.C., Battery cover & tool box

2шт.

59

G30267

BASE

PAN - (w/o cab), Battery cover & tool box

1шт.

60

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., Battery cover & tool box

2шт.
