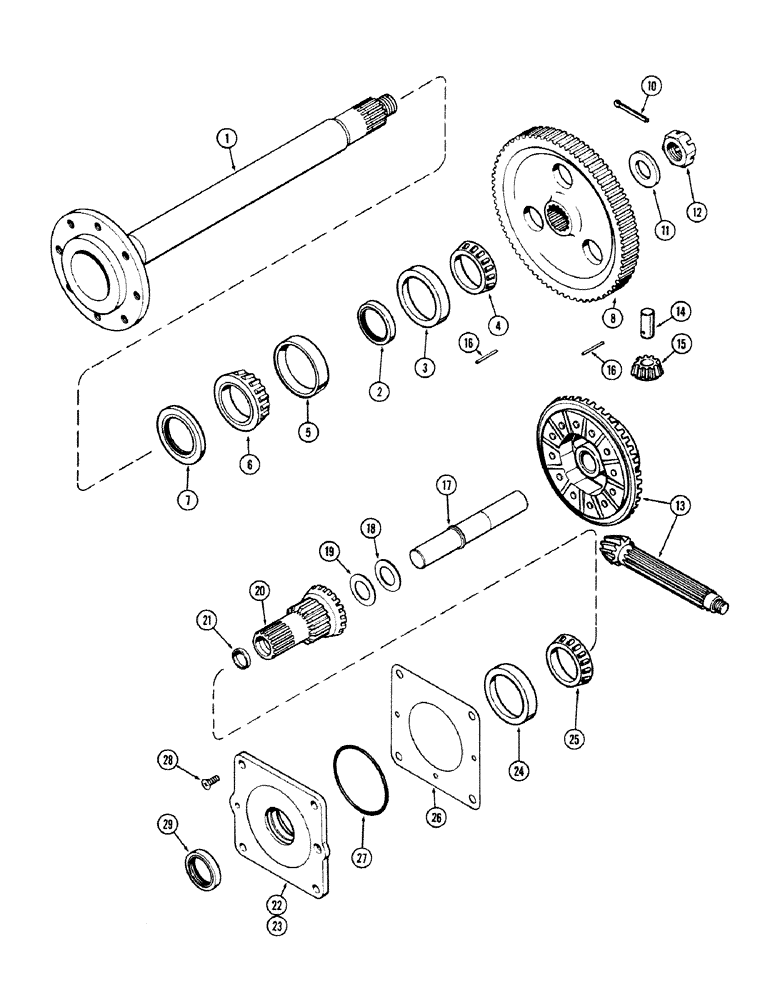

Запчасти Case IH M570 (064) - DIFFERENTIAL (06) - POWER TRAIN

1

A38209

SHAFT

- flanged, rear axle

2шт.

2

G13801

OIL SEAL

- oil, axle shaft inner

2шт.

3

G10415

BEARING CUP

CUP - inner bearing, axle shaft

2шт.

4

G10414

ROLLER BEARING

CONE - inner bearing, axle shaft

2шт.

5

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing, axle shaft

2шт.

6

G15207

ROLLER BEARING

CONE - outer bearing, axle shaft

2шт.

7

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil, axle shaft outer

2шт.

8

A37925

GEAR

- final drive (66T)

2шт.

10

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

11

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up (1/17/32" I.D. x 2-3/4" O.D. x 1/4")

2шт.

12

A30075

WHEEL NUT

- slotted, 1-1/2" N.F. hex.

2шт.

13

A39267

GEAR, BEVEL

RING GEAR & COUNTERSHAFT - matched set

1шт.

14

A39024

SHAFT

- pinion gear

3шт.

15

G38933

GEAR - pinion

3шт.

16

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, 3/16" x 1 7/8", Slotted

3шт.

17

A37186

SHAFT

- cross, differential

1шт.

18

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, cross shaft (.089")

1шт.

18

A39007

WASHER

- thrust, cross shaft (.094")

1шт.

18

A30533

WASHER

- thrust, cross shaft (.099")

1шт.

18

A30045

WASHER

- thrust, cross shaft (.104")

1шт.

18

A30543

WASHER

- thrust, countershaft (.109")

1шт.

18

A30051

WASHER

- thrust, countershaft (.119")

1шт.

19

A29388

WASHER

SHIM - thrust washer (.010")

1шт.

20

A38937

PINION

GEAR ASSY. - side, differential

2шт.

21

A29902

PLUG

- side gear (1-5/8" dia. cup type)

1шт.

22

G30490

CARRIER

ASSY. - bearing, R.H. side gear

1шт.

23

G30491

CARRIER

ASSY. - bearing, L.H. side gear

1шт.

24

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, R.H. & L.H.

1шт.

25

A30114

CONE

- bearing, R.H. & L.H. side gear

2шт.

26

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

26

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

26

A39289

SHIM,.007" Thk

Bearing carrier (.003") .007" Thk

1шт.

27

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier

2шт.

28

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

- 3/8 x 3/4 flat hd. (Spin-Lok)

2шт.

29

G10689

SEAL

- oil, bearing carrier

2шт.
