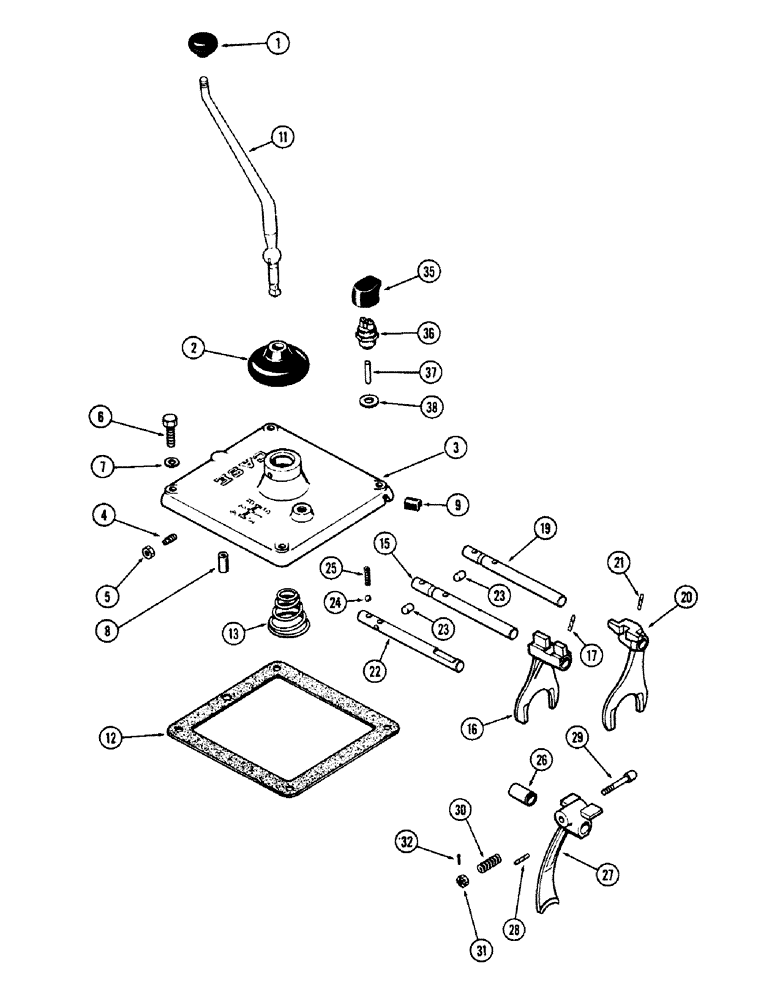

Запчасти Case IH M570 (058) - GEAR SHIFT COVER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A26727
BALL
KNOB - shift lever
1шт.
2
A57876
COVER
- dust, shift lever
1шт.
3
G1328
COVER ASSY
COVER - control
1шт.
4
G15468
SET SCREW,5/16" - 18 x 3/4"
- retaining, shift lever
1шт.
5
25-145
JAM NUT,Jam, 5/16"-18, G5
- jam, 5/16" N.C. hex.
1шт.
6
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- cover, 3/8 x 1-1/2" N.C. hex.
4шт.
7
92-6
LOCK WASHER,3/8"
4шт.
9
A35839
PLUG
SEAL - rubber, speedometer cable opening
1шт.
11
A36131
LEVER - gear shift
1шт.
12
G10342
GASKET
- cover to trans. case
1шт.
13
G10611
SPRING
- support, shift lever
1шт.
A41467
FORK
KIT - shift fork & rail, 1st & 2nd speeds
1шт.
15
A38233
ROD
RAIL - shift, 1st & 2nd speeds
1шт.
16
A38232
FORK
- shift, 1st & 2nd speeds
1шт.
17
138-2009
PIN,3/16" x 1", Coiled
1шт.
A41468
PACKAGE, REPAIR
KIT - shift fork & rail, 3rd & 4th speeds
1шт.
19
A38235
ROD
RAIL - shift, 3rd & 4th speeds
1шт.
20
A38234
FORK
- shift, 3rd & 4th speeds
1шт.
21
138-2009
PIN,3/16" x 1", Coiled
1шт.
22
A38236
ROD
RAIL - shift, reverse
1шт.
23
A29060
PLUG
- interlock, shift rail
2шт.
24
211-11
BALL,3/8" Dia
- mesh lock (.) 3/8" Dia
3шт.
25
G47039
SPRING
- mesh lock ball
3шт.
26
G49611
SPACER
- reverse shift rail (1-1/4" lg.)
1шт.
27
A38238
FORK
- shift, reverse
1шт.
28
138-2009
PIN,3/16" x 1", Coiled
1шт.
29
A29963
PLUNGER
- latch, reverse fork
1шт.
30
T25643
VALVE SPRING
SPRING - plunger, reverse latch
1шт.
31
25-135
SLOTTED NUT,5/16"-24, G5
NUT - slotted, 5/16" N.F. hex.
1шт.
32
132-5
COTTER PIN,1/16" x 1/2"
Pin, Split (Cotter), 1/16" x 1/2"
1шт.
35
A61028
BOOT
- safety start switch
1шт.
36
A20990
SWITCH
- safety, neutral start
1шт.
37
G15574
PLUNGER
- safety start switch
1шт.
38
G49401
SHIM,.005" Thk
Safety switch .005" Thk
1шт.
38
G49402
SHIM,.010" Thk
Safety switch .010" Thk
1шт.
Выбрано товаров: 36
