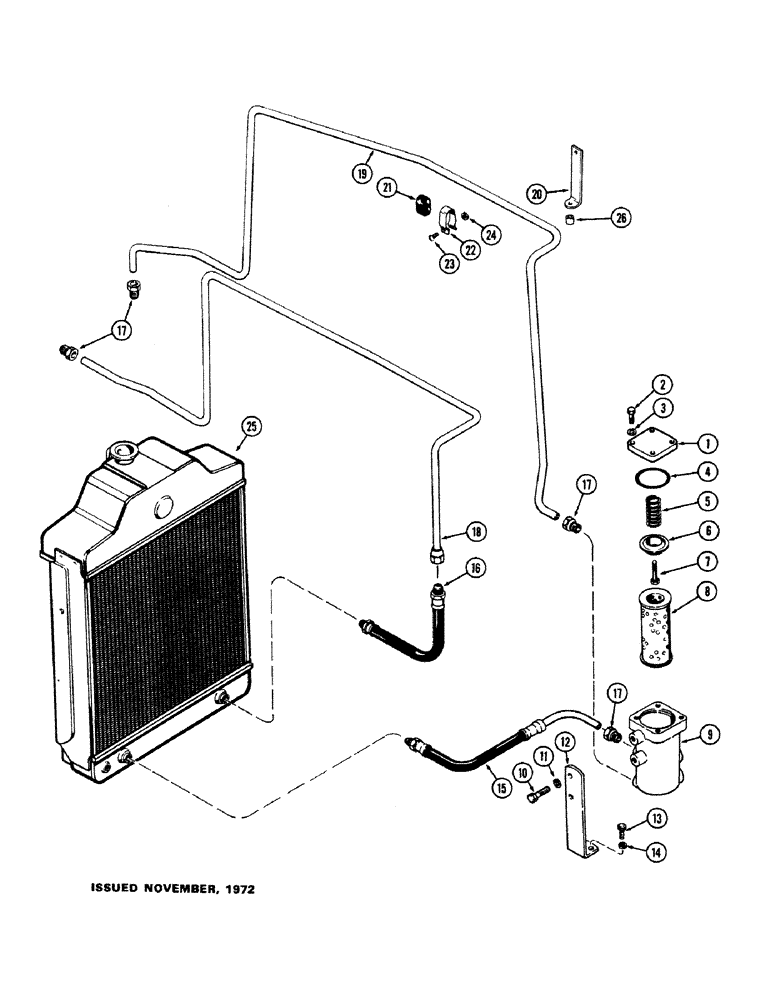

Запчасти Case IH M570 (054) - OIL FILTER AND COOLING TUBES, TORQUE CONVERTER DRIVE (06) - POWER TRAIN

1

G1248

COVER

CAP - cover, filter housing

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - cover cap

1шт.

5

A29993

VALVE SPRING

SPRING - filter element retainer

1шт.

6

A36523

CAP

- retainer, filter element

1шт.

7

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

8

A36524

FILTER, ELEMENT

ELEMENT - filter

1шт.

9

A37193

HOUSING

- oil filter element

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

G15650

BRACKET - filter housing

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

G45123

TUBE ASSY.

HOSE -, Serial Range: filter-radiator

1шт.

16

G45133

HYDRAULIC HOSE,0.50" ID x 16.00"

HOSE - radiator to return tube

1шт.

17

222-506

TUBE NUT,11/16"-16

NUT - connector (1/2" O.D.)

4шт.

18

A36537

TUBE

- return, oil

1шт.

19

A37063

TUBE - torque, Serial Range: tube-filter

1шт.

20

A35709

BRACKET - support, oil tube

1шт.

21

G46835

GROMMET

- rubber, tube clamp

3шт.

22

G46194

CLAMP

- oil tube

3шт.

23

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- mach. #10-32 x 3/4" rd. hd.

3шт.

24

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

3шт.

25

A39345

RADIATOR

1шт.

26

T39053

SPACER - support, Serial Range: bracket-manifold

1шт.
