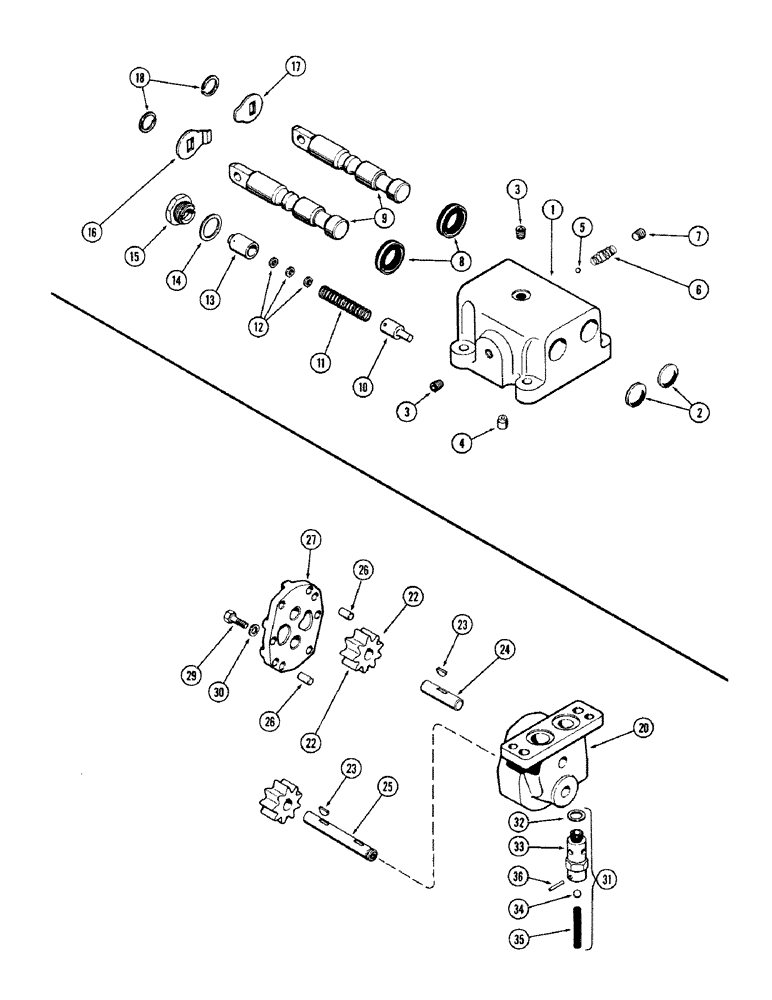

Запчасти Case IH M570 (052) - VALVE, TORQUE CONVERTER DRIVE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
G14458
VALVE ASSY. - complete
1шт.
1
A11504
BODY - valve
1шт.
2
41-16
PLUG,Exp, 1"
- spool opening
2шт.
4
A20092
PLUG
- pressure, regulator orifice
1шт.
5
211-7
BALL,1/4" Dia
- steel, check valve 1/4" Dia
1шт.
6
A11517
VALVE SPRING
SPRING - check valve
1шт.
7
221-1849
PLUG
- pipe, 1/8" hex. socket hd.
1шт.
8
A11507
OIL SEAL
- oil, spool
2шт.
9
A11506
SPOOL - valve
2шт.
10
A11510
PLUNGER
- small, pressure regulator
1шт.
11
A11512
VALVE SPRING
SPRING - pressure regulator
1шт.
12
195-9
WASHER - 3/16" plain
1шт.
13
A11511
PLUNGER
- large, pressure regulator
1шт.
14
A11513
GASKET
- cap, pressure regulator
1шт.
15
NLS
NO LONGER SERVICED
CAP - pressure regulator
1шт.
16
G16809
PLATE ASSY.
PLATE - interlock, R.H. spool
1шт.
17
G16808
PLATE ASSY.
PLATE - interlock, L.H. spool
1шт.
18
A29329
RING, SNAP
RING - snap, interlock plate
2шт.
G45386
PUMP
ASSY. - complete , Hydraulic
1шт.
20
A11535
HOUSING ASSY. - pump , Hydraulic
1шт.
22
A11523
GEAR
- drive and idler , Hydraulic Pump
2шт.
23
126-9
WOODRUFF KEY,#3, 1/8" x 1/2"
Gear to shaft, Hydraulic Pump #3, 1/8" x 1/2"
2шт.
24
A11525
SHAFT
- idler gear , Hydraulic Pump
1шт.
25
A11522
SHAFT
- drive gear , Hydraulic Pump
1шт.
26
A11528
PIN,7.81mm OD x 14.29mm L
- dowel, cover to housing , Hydraulic Pump
2шт.
27
A11536
COVER ASSY. - pump , Hydraulic
1шт.
29
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Cover, Hydraulic Pump Hex, 1/4"-20 x 3/4", G5, Full Thd
6шт.
30
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Hydraulic Pump 1/4"
6шт.
31
G30570
VALVE
ASSY. - relief , Hydraulic Pump
1шт.
32
A11530
GASKET
- valve to housing , Hydraulic Pump
1шт.
33
NSS
NOT SOLD SEPARAT
BODY - (Order G30570) , Hydraulic Pump
1шт.
34
211-9
BALL,5/16" Dia
- 5/16" chrome , Hydraulic Pump
1шт.
35
G48512
SPRING
- valve , Hydraulic Pump
1шт.
36
138-57
LOCK PIN,1/8" x 3/4", Slotted
PIN, , Hydraulic pump 1/8" x 3/4", Slotted
1шт.
Выбрано товаров: 35
