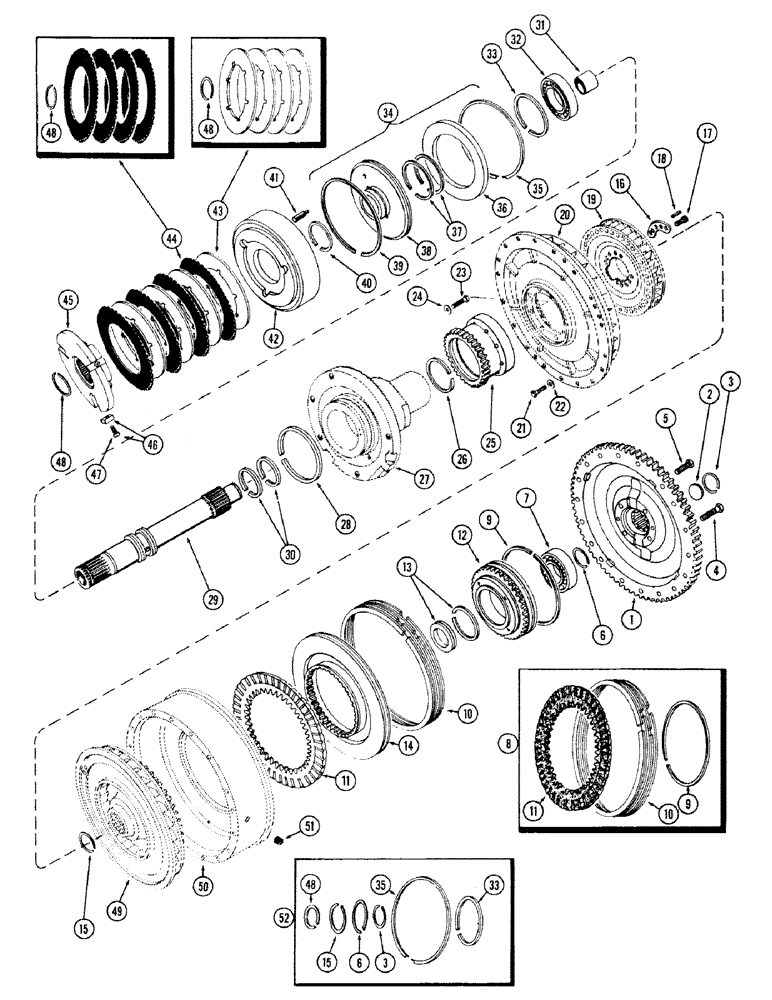

Запчасти Case IH M570 (048) - TORQUE CONVERTOR, TORQUE CONVERTER DRIVE (06) - POWER TRAIN

G30373

CONVERTER

ASSY. - torque

1шт.

Also order G46817 gasket, Ref. 20 from page 46

1шт.

1

A36378

CARRIER ASSY. - clutch

1шт.

2

A36372

PLUG

- carrier

1шт.

3

A36277

SNAP RING,1.125", Int, #112

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- carrier to hsg., 5/16 x 1-1/4" N.C. hex.

18шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Brg. carrier Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

A36385

RING

- snap, front bearing

1шт.

7

A36266

BEARING

- front

1шт.

8

A36260

PLATE

KIT - front clutch

1шт.

9

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

12

A36265

CARRIER

- bearing

1шт.

13

A36267

SEAL

KIT - oil seal, bearing carrier

1шт.

14

A36264

PISTON

- clutch

1шт.

15

G46700

SNAP RING

RING - snap, Serial Range: turbine-sleeve

1шт.

16

A36278

PLATE

- lock

2шт.

17

164-40

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"

SCREW - cap, 5/16 x 3/4" N.C. socket hd.

6шт.

18

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

4шт.

19

A41480

STATOR - converter

1шт.

20

A41478

IMPELLER - converter

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Impeller Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

22

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

18шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Gear to impeller Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" plain

8шт.

25

A41400

GEAR

KIT - gear, pump drive

1шт.

26

A36273

RING

- seal

1шт.

27

A41477

CARRIER

- stator

1шт.

A41482

SLEEVE - split (Not Shown)

1шт.

28

A36412

SEAL ASSY.

RING - seal

1шт.

29

A36274

SLEEVE ASSY. - output

1шт.

30

A20229

RING

- seal

2шт.

31

G49634

BUSHING

- sleeve

1шт.

32

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - rear

1шт.

33

A36373

RING, SNAP

RING - snap, Serial Range: bearing-sleeve

1шт.

34

G45476

PISTON ASSY.

PISTON KIT - master clutch

1шт.

35

A36374

RING, SNAP

RING - snap, Serial Range: plate-piston

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - piston (Order G45476)

1шт.

37

A36376

SEAL

RING - seal, piston carrier

2шт.

38

NSS

NOT SOLD SEPARAT

CARRIER - piston (Order G45476)

1шт.

39

A36379

SEALING RING

RING - seal, piston carrier

1шт.

40

A36380

SEAL

RING - piston

1шт.

41

A40842

AXLE PIN

PIN - clutch

1шт.

42

NSS

NOT SOLD SEPARAT

PISTON - clutch (Order G45476)

1шт.

43

G14280

CLUTCH ASSEMBLY

KIT - clutch plate, internal tooth

1шт.

44

G14281

CLUTCH ASSEMBLY

KIT - clutch plate, external tooth

1шт.

45

G45438

PLATE ASSY.

PLATE - back, master clutch

1шт.

46

A36383

KEY

ASSY. - back plate

3шт.

47

A36382

SCREW

- key

1шт.

48

G46700

SNAP RING

RING - snap, back plate

1шт.

49

A41479

TURBINE - converter (Order G30373)

1шт.

50

A41492

CONVERTER

HOUSING - rotating (Order G30373)

1шт.

51

A41365

PLUG

- pipe, 1/8" socket hd.

2шт.

52

A36276

KIT

- snap ring (Includes ref. 3, 6, 15, 33, 35, & 48)

1шт.
