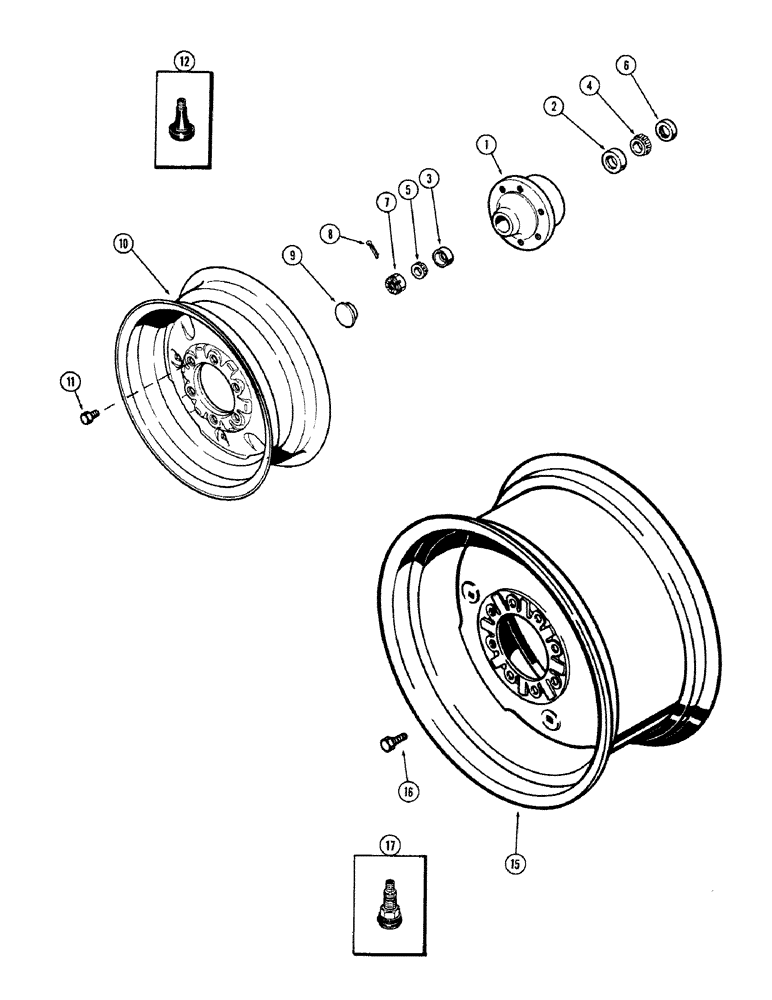

Запчасти Case IH M570 (078) - FRONT WHEELS (05) - STEERING

1

A39251

HUB CAP

HUB ASSY. - front wheel

2шт.

2

G57451

BEARING, CUP

CUP - inner bearing

1шт.

3

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing

1шт.

4

G57452

ROLLER BEARING

CONE - inner bearing

2шт.

5

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing

2шт.

6

G13053

OIL SEAL

- oil, inner

2шт.

7

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hub to spindle (3/4" N.F. slotted)

2шт.

8

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

9

B13280

HUB CAP

CAP - hub

2шт.

10

A38067

WHEEL - front (7.50 x 16 tire) (Yellow)

2шт.

10

A51260

WHEEL - front (7.50 x 16 tire) (Olive drab)

1шт.

11

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

12

A38261

VALVE

- tubeless tire

2шт.

15

A38974

WHEEL - rear (14.9 x 24 tire) (Yellow)

2шт.

15

A51259

WHEEL - rear (14.9 x 24 tire) (Olive drab)

2шт.

16

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - Wheel to hub (5/8" N.F. x 1"), rear

16шт.

17

A20058

VALVE STEM

- Tubeless tire, rear wheels

2шт.
