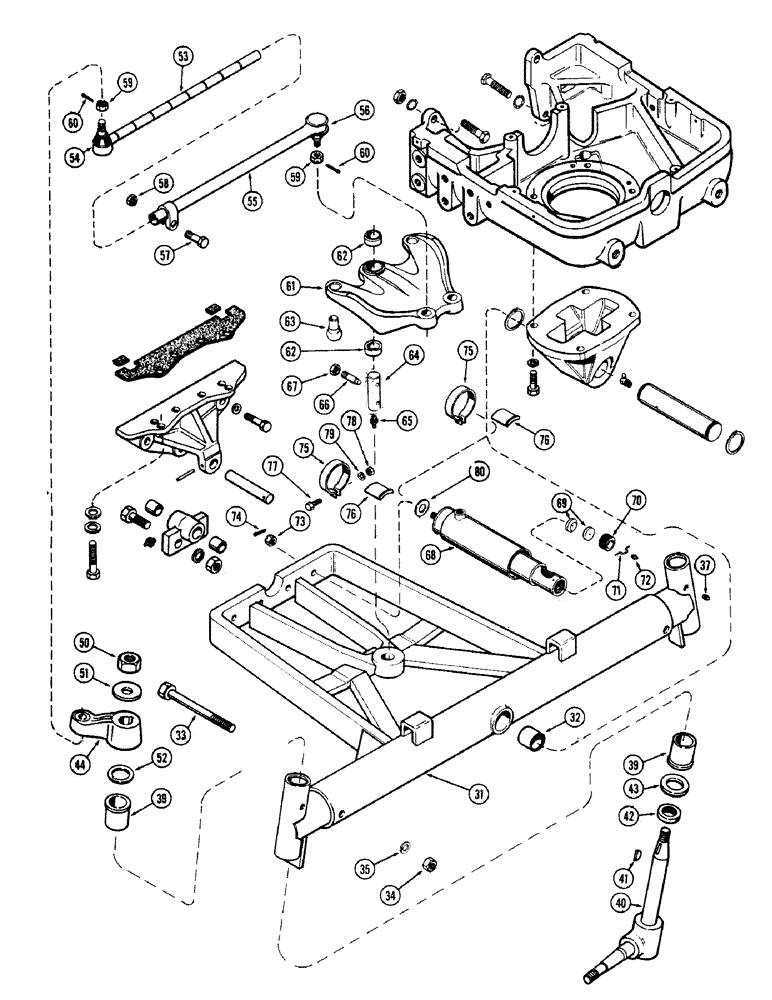

Запчасти Case IH M570 (076) - FRONT AXLE (05) - STEERING

31

A51428

AXLE ASSY. - front

1шт.

32

A36626

BUSHING

- pivot (1-3/4 x 1-5/16 x 1-5/8")

2шт.

33

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

34

129-107

NUT,5/8"-11, G5

2шт.

35

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

39

A36637

BUSHING,34.82mm ID x 41.43mm OD x 50.8mm L

- spindle

4шт.

40

A51227

SPINDLE

- wheel

2шт.

41

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

Arm to spindle #G, 3/8" x 1 1/2"

2шт.

42

A37051

WASHER

- thrust, wheel spindle

2шт.

43

A30054

THRUST BEARING,35.18mm ID x 58.74mm OD x 15.88mm W

BEARING - thrust, wheel spindle

2шт.

44

A51230

ARM - steering, R.H.

1шт.

44

A51231

ARM - steering, L.H.

1шт.

50

25-1516

NUT,Jam, 1"-14, G5

- 1" N.C. half hex.

2шт.

51

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- 1" plain

2шт.

52

A29467

SHIM,.010" Thk

Steering arm (1-13/32" x 2-1/8") .010" Thk

1шт.

53

A40524

ROD

ASSY. - tie, steering arm (15-11/16" long)

2шт.

54

G46043

COVER

SEAL - dust

1шт.

55

A40791

TUBE

ASSY. - tie rod (18-1/4" long)

2шт.

56

G46043

COVER

SEAL - dust

1шт.

57

113-408

X

BOLT - 1/2 x 2" N.C. hex. hd. (Gr. 8)

2шт.

58

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex. (Heavy)

2шт.

59

25-139

SLOTTED NUT,9/16"-18, G5

NUT - slotted, 9/16" N.F. hex.

4шт.

60

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

61

A38144

ARM

ASSY. - center steering

1шт.

62

A36645

BUSHING,25.25mm ID x 34.98mm OD x 16.13mm L

- pivot

2шт.

63

A38145

BALL

- steering arm

2шт.

64

A38163

PIN - pivot, center steering arm

1шт.

65

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

66

178-260

SET SCREW,Hex Soc, 3/8"-16 x 1 1/4"

SCREW - set, 3/8 x 1-1/4" N.C. socket hd. dog pt.

1шт.

67

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. (Half)

1шт.

68

A36761

CYLINDER ASSY. - hydraulic (Repairs, Page 72)

2шт.

69

A57918

SEAT

BEARING - ball stud

4шт.

70

A38164

ADJUSTMENT SCREW

SCREW - adjusting, bearing

2шт.

71

A36763

ELECTRICAL WIRE

WIRE - lock, adjusting screw

2шт.

72

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" str.)

2шт.

73

A31194

NUT - cyl. to axle (9/16" N.F. hex. slotted)

2шт.

74

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

75

A37948

CLAMP - cylinder stabilizer

2шт.

76

A38786

PLATE

- cylinder stop

2шт.

77

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

78

25-104

NUT,1/4"-20, G5

2шт.

79

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80

A28084

WASHER

- cylinder to radius rod

2шт.
