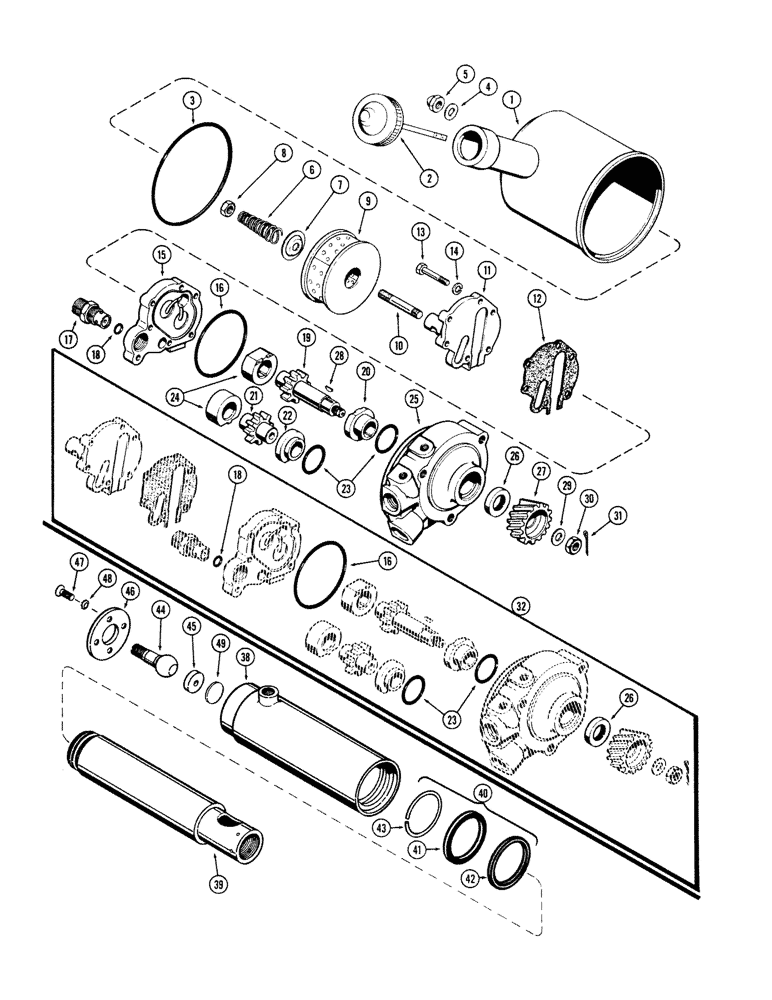

Запчасти Case IH M570 (072) - POWER PUMP, HYDROSTATIC STEERING (05) - STEERING

A36559

PUMP

ASSY. - power steering

1шт.

1

A35951

RESERVOIR

- oil

1шт.

2

A35967

GAUGE

CAP ASSY. - reservoir, w/dipstick

1шт.

2

A35967AM

DIPSTICK

CAP ASSY. - reservoir, w/dipstick

1шт.

3

A35965

O-RING,2.87mm Thk x 120.27mm ID

GASKET - reservoir

1шт.

4

A35961

WASHER

- reservoir ret. nut

1шт.

5

129-525

CROWN NUT,Crown, 3/8"-16

- reservoir ret. (3/8" N.C. acorn)

1шт.

6

A35963

SPRING

- element tension

1шт.

7

A35962

CAP

SEAT - element spring

1шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

- spring ret. (3/8" N.C. half hex.)

1шт.

9

A42242

FILTER, ELEMENT

ELEMENT - pump filter

1шт.

10

A35952

STUD

- reservoir (3/8" N.C. x 2-3/8")

1шт.

11

A35950

COVER

- pump, rear

1шт.

12

A35966

GASKET

- rear cover (See item 32)

1шт.

13

A35964

BOLT (SPREADER)

BOLT - cover (1/4 x 1-1/2" N.C. hex.)

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A35949

COVER

- pump, intermediate

1шт.

16

A35959

O-RING,2.55" ID x 2.756" OD x 0.103"

"O" RING - intermediate cover (See item 32)

1шт.

17

A35968

CARTRIDGE

VALVE ASSY. - pump relief

1шт.

18

A42187

O-RING,0.426" ID x 0.566" OD x 0.07"

"O" RING - relief valve (See item 32)

1шт.

19

A25593

GEAR

- lead (Driven gear)

1шт.

20

A35957

BEARING

- lead gear, front

1шт.

21

A35954

GEAR

- follow (Idler gear)

1шт.

22

A35955

BEARING

- follow gear, front

1шт.

23

A35958

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING - frt. bearing (See item 32)

2шт.

24

A35956

BEARING

- rear

2шт.

25

A35948

BODY

- pump, front

1шт.

26

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, pump body (See item 32)

1шт.

27

A25594

GEAR

- pump drive

1шт.

28

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Drive gear #3, 1/8" x 1/2", HT

1шт.

29

195-25

WASHER,3/8"

- plain (13/32 x 13/16 x 5/64")

1шт.

30

F18390

NUT

- gear retaining (3/8" N.F. sltd.)

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

A35970

KIT

SEAL KIT - pump repair

1шт.

A36761

CYLINDER ASSY. - hydraulic steering

2шт.

38

NSS

NOT SOLD SEPARAT

BARREL - cyl. body (Order A36761), steering cyl

1шт.

39

A40372

ROD

- piston, steering cyl

1шт.

40

A40376

KIT

SEAL KIT - cylinder, steering

1шт.

41

A61414

OIL SEAL

WIPER - oil, frt. (2-1/8 x 2-1/2 x 3/16"), steering cyl

1шт.

42

A40371

CUPEL

SEAL - oil, rear (2-1/8 x 2-1/2 x 3/8"), steering cyl

1шт.

43

A40369

RING, SNAP

RING - snap, piston rod ret., steering cyl

1шт.

44

A40374

STUD

- ball, steering cyl

1шт.

45

A40375

SEAT

- ball stud, steering cyl

1шт.

46

A40373

PLATE

- ball stud retaining, steering cyl

1шт.

47

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- plate (1/4 x 5/8" N.C., flat hd. Phillips), steering cyl

4шт.

48

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Steering cylinder Ext Csk Tooth, 1/4"

4шт.

49

A40824

SHIM - stud seat (.005"), steering cyl

1шт.

49

NLS

NO LONGER SERVICED

SHIM - ball stud (.010"), steering cyl

1шт.
