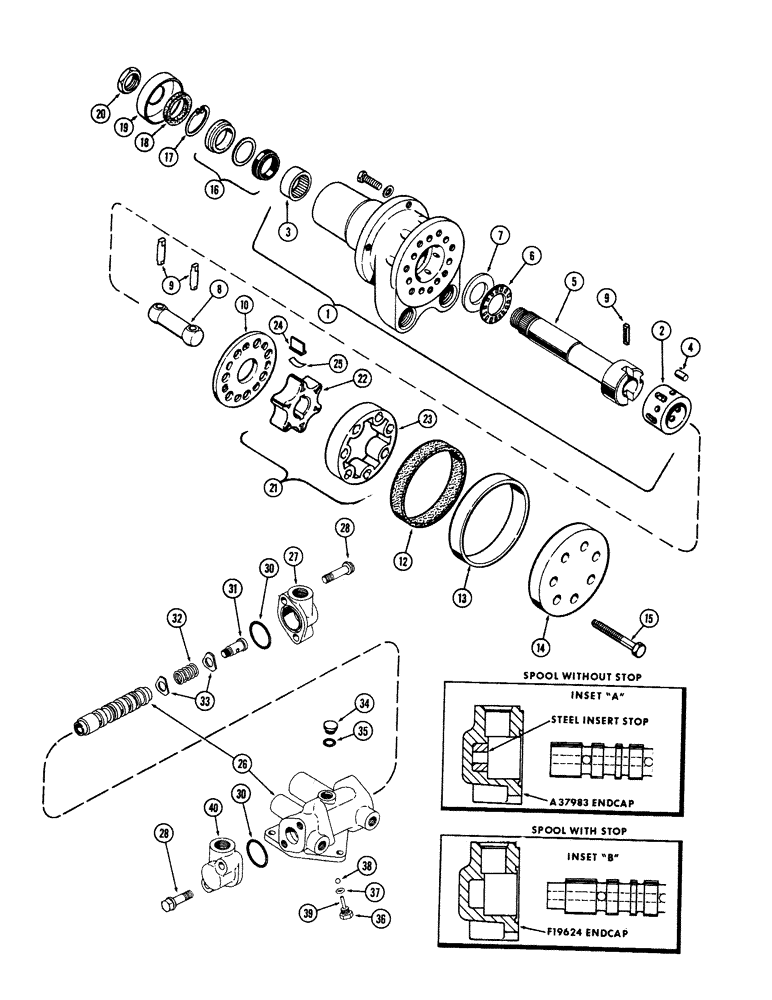

Запчасти Case IH M570 (070) - MANUAL PUMP, HYDROSTATIC STEERING (05) - STEERING

A39237

PUMP

ASSY. - manual

1шт.

1

F82945

BODY

ASSY. - pump

1шт.

2

NSS

NOT SOLD SEPARAT

COMMUTATOR - (Order F82945)

1шт.

3

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle

1шт.

4

F19631

PIN

- commutator

1шт.

5

F19632

SHAFT

- coupling

1шт.

6

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, thrust

1шт.

7

F19634

BEARING WASHER

RACE - thrust bearing

1шт.

8

F19635

LINK

- rotor drive

1шт.

9

F19636

PIN

- link

2шт.

10

A42206

SPACER

- rotor

1шт.

12

84286702

RUBBER SEAL

- rotor

1шт.

13

A35787

RETAINER

- rotor seal

1шт.

14

F19641

COVER - end

1шт.

15

F19642

BOLT - cover (5/16 x 1-3/4" N.C. hex.)

7шт.

16

A40624

SEAL

KIT - pump shaft (Includes ref. 18)

1шт.

17

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, thrust washer

1шт.

18

F19645

BUSHING

SEAL - dust, felt

1шт.

19

A42057

SEAL

RETAINER - dust seal

1шт.

20

A14567

JAM NUT

- coupling shaft

1шт.

21

A43520

ROTOR ASSY.

ROTOR SET - pump

1шт.

22

NSS

NOT SOLD SEPARAT

ROTOR - (Order ref. 21)

1шт.

23

NSS

NOT SOLD SEPARAT

STATOR - (Order ref. 21)

1шт.

24

NSS

NOT SOLD SEPARAT

VANE - rotor (Order ref. 21)

6шт.

25

A42219

SPRING

- retainer, rotor vane

6шт.

A37980

VALVE

ASSY. - control

1шт.

26

NSS

NOT SOLD SEPARAT

BODY & SPOOL - valve (Order A37980)

1шт.

27

F19624

CAP

- end (See ref. 40), valve

1шт.

28

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (3/8 x 2" N.C. hex.) (w/washer), valve

4шт.

30

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap, valve

2шт.

31

F19623

SCREW,3/8" - 24 x 15/16"

- centering, valve

1шт.

32

F19622

VALVE SPRING

SPRING - centering, valve

1шт.

33

F19619

WASHER

- spring retaining, valve

2шт.

34

F83122

PLUG

ASSY. - top, valve body

1шт.

35

F19628

O-RING

"O" RING - plug, valve

1шт.

36

F82943

VALVE

PLUG ASSY. - relief, valve

1шт.

37

F19630

O-RING

"O" RING - relief plug, valve

1шт.

38

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Valve 1/8" x 15/16", Slotted

1шт.

40

F19624

CAP

- end (w/o stop) See Note, valve

1шт.

40

F19624

CAP

- end (w/o stop) See Note, valve

1шт.

40

A37983

CAP

- end (w/o stop) See Note, valve

1шт.
