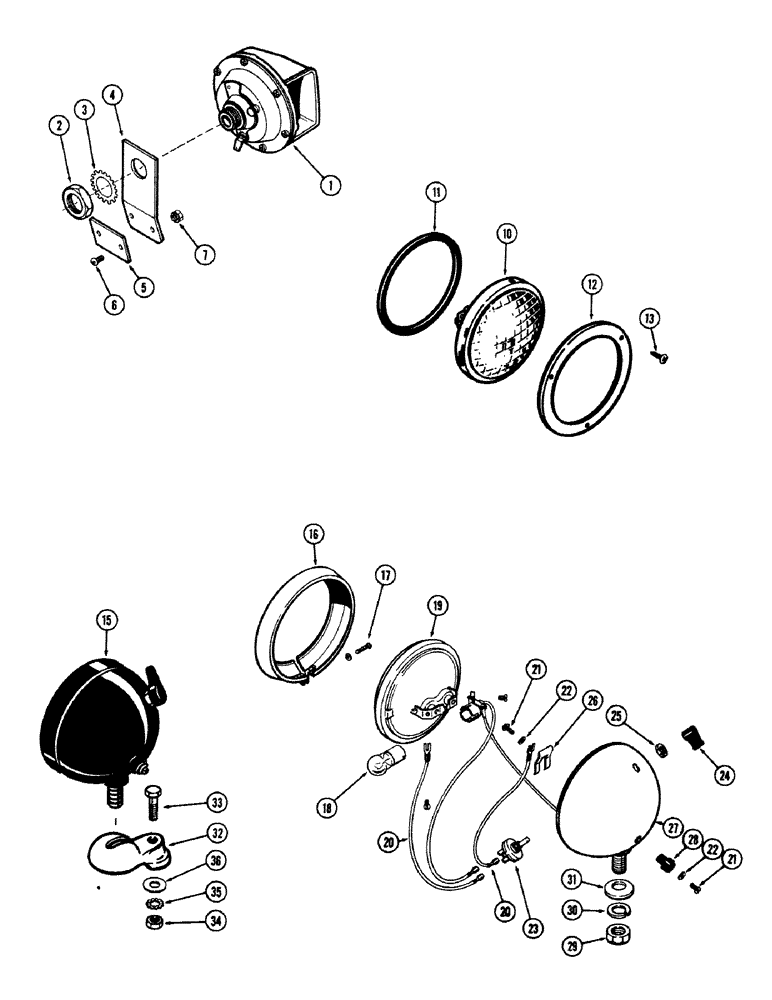

Запчасти Case IH M570 (044) - HORN AND LAMP PARTS (04) - ELECTRICAL SYSTEMS

1

A19581

HORN

- warning (12 V)

1шт.

2

A19827

X

NUT - horn mounting (7/8" N.F. hex.)

1шт.

3

193-88

LOCK WASHER,7/8"

WASHER - lock ext. Shakeproof 7/8"

1шт.

4

A36946

BRACKET

- horn mounting

1шт.

5

A36947

PLATE ASSY.

PLATE - reinforcing

1шт.

6

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" N.C. truss. hd.

2шт.

7

193-1006

NUT,Keps, w/LW, 1/4"-20

- 1/4" N.C. Keps (Includes lockwasher)

2шт.

10

A24572

LAMP

UNIT - sealed, head lamp

2шт.

11

A11276

GASKET

- head lamp

1шт.

12

A11275

RING

- retaining, headlamp

2шт.

13

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - N.C. self-tapping #6 x 1/2"

6шт.

15

A20965

LAMP BASE

LAMP - combination flood & tail

1шт.

16

B50255

MOLDING

- lamp retaining

1шт.

17

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding

1шт.

18

B50233

BULB - red

1шт.

19

A40855

LAMP BASE

LAMP - sealed unit

1шт.

20

B50273

WIRE - switch

2шт.

21

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- wire, #8-32 x 1/4" rd. hd.

2шт.

22

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - lock, 1/4" std.

2шт.

23

B50275

SWITCH

- lamp

1шт.

24

B50310

SWITCH

KNOB - switch

1шт.

25

B50224

SPECIAL NUT

- switch

1шт.

26

10927

SPRING

- terminal

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - (Order A20965)

1шт.

28

B50293

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

31

10923

WASHER

- bearing

1шт.

32

A34046

BRACKET

- tail lamp mounting

1шт.

33

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

35

193-72

LOCK WASHER

- lock, 3/8" int. - ext. Shakeproof

1шт.

36

F62051

WASHER

- reinforcing

1шт.
