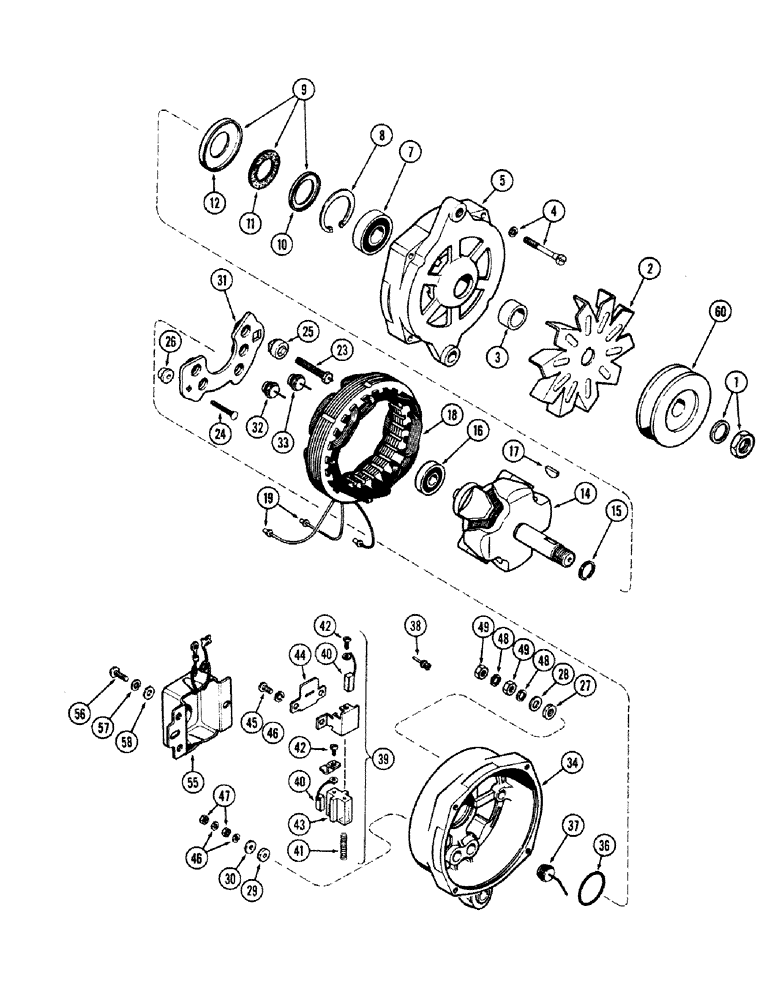

Запчасти Case IH M570 (038) - ALTERNATOR, (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A51304

ALTERNATOR ASSY. - (Eltra #ALH-5307-S) (Production Only) (Order A42444 alternator, A42777 pulley and A42098 regulator)

1шт.

A42444

ALTERNATOR

ASSY. - (For service minus pulley and regulator)

1шт.

1

A40581

KIT

- nut & washer, rotor shaft

1шт.

2

A41066

FAN

- ventilating

1шт.

3

A41078

BUSHING

SPACER - rotor shaft

1шт.

4

A41094

BOLT

- thru bolt (Set of 4 w/washers)

1шт.

5

A42441

HEAD

ASSY. - drive end

1шт.

7

A42263

BALL

BEARING - ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

1шт.

9

A42268

KIT

- retainer

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

14

A42269

SPARE PART

ROTOR ASSY.

1шт.

15

A25626

RING

- snap

1шт.

16

A42270

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - ball (Sealed)

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42271

STATOR

ASSY.

1шт.

19

A41065

KIT

- eyelet, wire end (Set of 6)

1шт.

A41080

KIT

- terminal stud

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.

31

A42265

PLATE

HEAT SINK - diode

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive (Order A42265)

3шт.

33

A42261

DIODE

KIT - output diode (Matched set of 2)

1шт.

34

A42442

COVER

HEAD ASSY. - slip ring end

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Set of 3)

1шт.

38

A42266

KIT

- plugs (Set of 10)

1шт.

39

A42495

HOLDER

ASSY. - brush

1шт.

40

A41063

BRUSH, COMMUTATOR

KIT - armature brush (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - machine, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - mach., #10-24 x 3/8" rd. hd.

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

- jam, #10-24 hex.

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

- lock, 1/4" N.F.

2шт.

55

A42098

VALVE

REGULATOR ASSY. - voltage (VSH-6201-C)

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

60

A42777

PULLEY

- drive, alternator

1шт.
