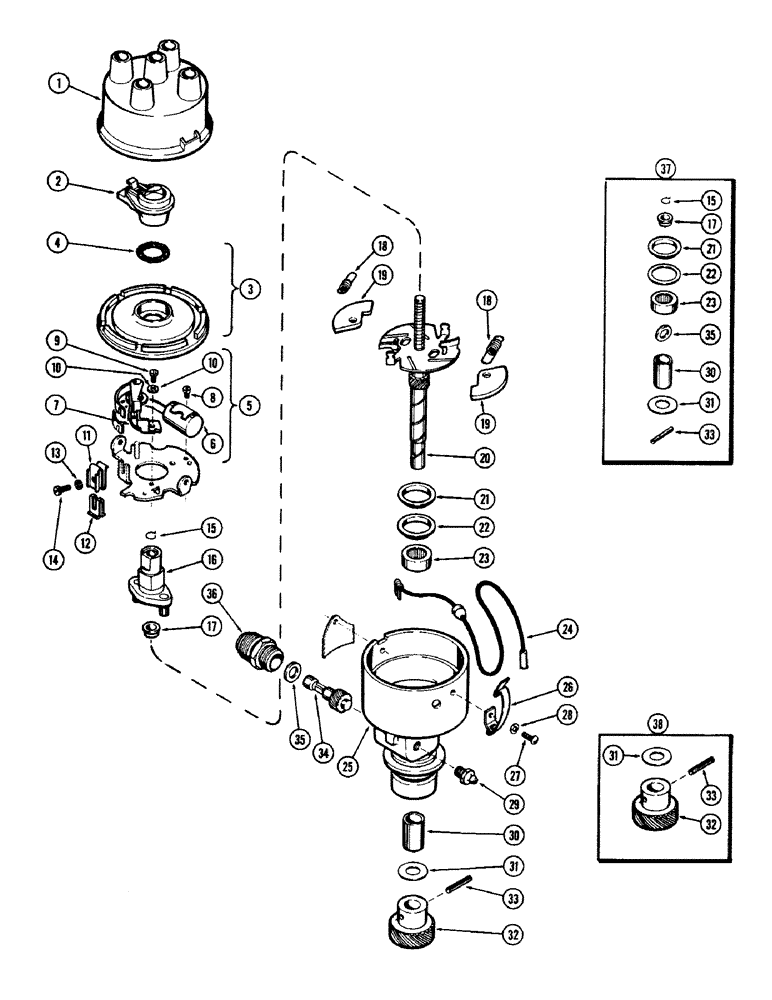

Запчасти Case IH M570 (036) - DISTRIBUTOR, (159) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A39017

DISTRIBUTOR ASSY. - (Eltra #IBT-4403B)

1шт.

1

A24564

CAP

ASSY. - distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY. - seal

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - felt, shaft seal

1шт.

5

A40330

PLATE

ASSY. - breaker

1шт.

A40930

KIT

CONTACT KIT - breaker

1шт.

6

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

7

NSS

NOT SOLD SEPARAT

BREAKER - contact points (Order A40930)

1шт.

8

177-56

SCREW - condenser, #6-32 x 13/16" fill. hd.

1шт.

9

177-72

SCREW - points, #8-32 x 3/16" fill. hd.

1шт.

10

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - retaining, breaker

1шт.

12

NSS

NOT SOLD SEPARAT

INSULATOR - breaker clip

1шт.

13

195-6

WASHER,#6

- plain, 5/32 I.D. x 5/16" O.D. x 3/64"

1шт.

14

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- retainer, #6-32 x 5/16" hex. hd.

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, cam (Order A40326 ref. 37)

1шт.

16

A24762

CAMP ASSY.

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - cam (Order A40326 ref. 37)

1шт.

18

A24778

SPRING KIT

- governor (Set of 2)

1шт.

19

NSS

NOT SOLD SEPARAT

WEIGHT - governor

2шт.

20

A25979

SHAFT

- drive

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - thrust, inner (Order A40326 ref. 37)

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - thrust, outer (Order A40326 ref. 37)

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - needle (Order A40326 ref. 37)

1шт.

24

A42894

WIRE - lead, primary

1шт.

25

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order A18461)

1шт.

26

A40329

SPRING

HINGE KIT - cap retainer (Set of 2)

1шт.

27

169-131

BOLT,Fil Hd, 8" - 32 x 5/16"

SCREW - #8-32 x 5/16" fill. hd.

2шт.

28

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

29

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4" - 28 x 90 degrees

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - bronze (Order A40326 ref. 37)

2шт.

31

NSS

NOT SOLD SEPARAT

WASHER - thrust, lower (Order A40323 ref. 38)

1шт.

32

NSS

NOT SOLD SEPARAT

GEAR - drive (Order A40323 ref. 38)

1шт.

33

NSS

NOT SOLD SEPARAT

PIN - roll (Order A40323 ref. 38 or A40326 ref. 37)

1шт.

34

A24761

SHAFT

GEAR SHIFT - tachometer drive

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - thrust (Order A40326 ref. 37)

1шт.

36

A24781

HOUSING - tach. drive gear

1шт.

37

A40326

PACKAGE, REPAIR

REPAIR KIT - drive shaft

1шт.

38

A40323

GEAR

REPAIR KIT - drive gear

1шт.
