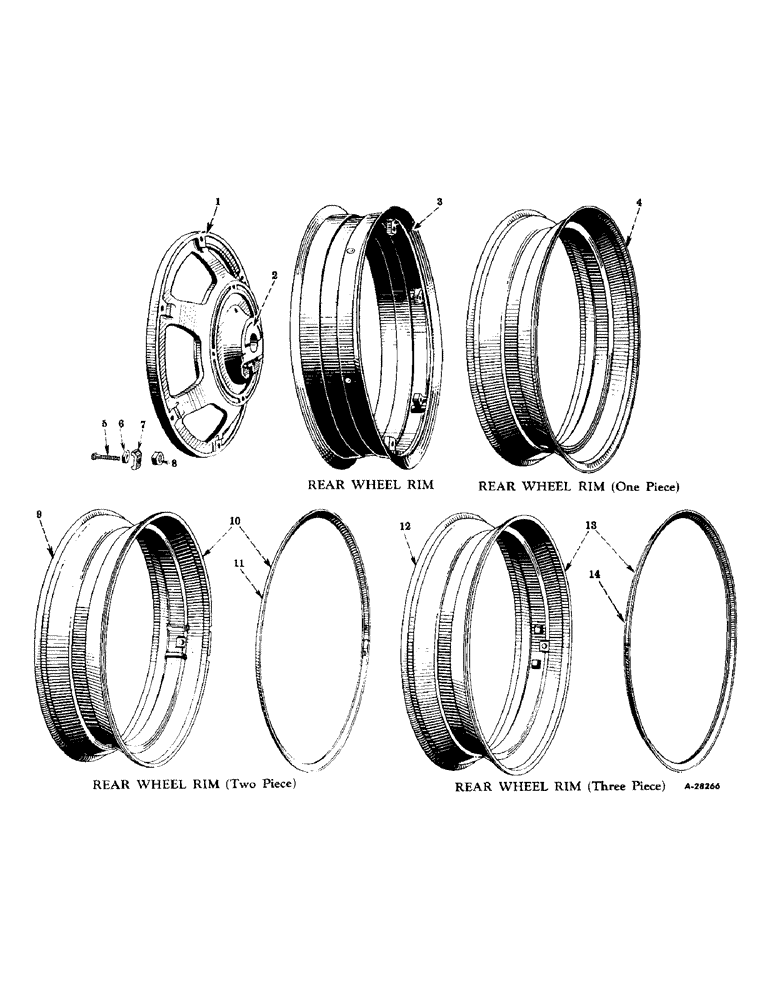

Запчасти Case IH SUPER-HV (146) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, SUPER "HV" (12) - CHASSIS

1

355439R1

WHEEL, rear

2шт.

2

355440R1

CLAMP, hub, rear wheel

4шт.

355441R1

BOLT

rear wheel hub clamp

8шт.

3

351864R92

RIM, rear wheel, w/Clamp (Variable tread) (Rim size 8.00T x 36) (Tire sizes 12-36 & 13-36)

2шт.

13454R1

BOLT, machine, sq-hd., 5/8-11NC x 3-1/2"

12шт.

351832R1

NUT

hex., 5/8-11NC

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

4

55563D

RIM

rear wheel (1-piece) (Rim size DW10-38) (Tire sizes 11 x 38 & 12 x 38)

2шт.

5

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp (Not used with attached clamp rim)

12шт.

6

351833R1

NUT

jam, rear wheel rim mounting (Not used with attached clamp rim)

12шт.

7

48984D

CLAMP

rear wheel rim (Used with all rims, except 351864R92) (Not used with attached clamp rim)

24шт.

8

351832R1

NUT

rear wheel rim mounting (Not used with attached clamp rim)

12шт.

9

45866D

BASE, rear wheel rim (Used with Rim, 45865D)

2шт.

10

45865D

RIM, rear wheel (2-piece) (Composed of Base, 45866D and side Ring, 38921D) (Optional with 45867D) (Rim size 8.00T x 36) (Tire sizes 12-36 & 13-36)

2шт.

11

38921D

RING, rear wheel rim side (Used with Rim, 45865D)

2шт.

12

45868D

BASE, rear wheel rim (Used with Rim, 45867D)

2шт.

13

45867D

RIM, rear wheel (3-piece) (Composed of Base, 45868D and rim side and locking Ring, 37656D) (Optional with 45865D) (Rim size 8.00T x 36) (Tire sizes 12-36 & 13-36)

2шт.

14

37656D

RING, rear wheel rim side, w/locking Ring (Used with Rim, 45867D)

2шт.

1-3

355031R93

WHEEL, rear, w/Rim, assembly (Rim size 8.00T x 36) (Tire sizes 12-36 & 13-36) (Composed of -

2шт.

355441R1

BOLT

4шт.

13454R1

BOLT

6шт.

355440R1

CLAMP

2шт.

351832R1

NUT

6шт.

351864R92

RIM

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

355439R1

WHEEL)

1шт.

1-4

355026R92

WHEEL, rear, w/Rim, assembly (Rim size DW10-38) (Tire sizes 11-38 & 12-38) (Composed of -

2шт.

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

6шт.

355441R1

BOLT

4шт.

48984D

CLAMP

12шт.

355440R1

CLAMP

2шт.

351832R1

NUT

6шт.

351833R1

NUT

6шт.

55563D

RIM

1шт.

355439R1

WHEEL

1шт.

1-10

NSS

NOT SOLD SEPARAT

1шт.

355022R92

WHEEL, rear, w/Rim, assembly (Rim size 8.00T x 36) (Tire sizes 12-36 & 13-36) Or

2шт.

1-13

NSS

NOT SOLD SEPARAT

(Composed of -

1шт.

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

6шт.

355441R1

BOLT

4шт.

48984D

CLAMP

12шт.

355440R1

CLAMP

2шт.

351832R1

NUT

6шт.

351833R1

NUT

6шт.

45865D

RIM

1шт.

355439R1

WHEEL

1шт.
