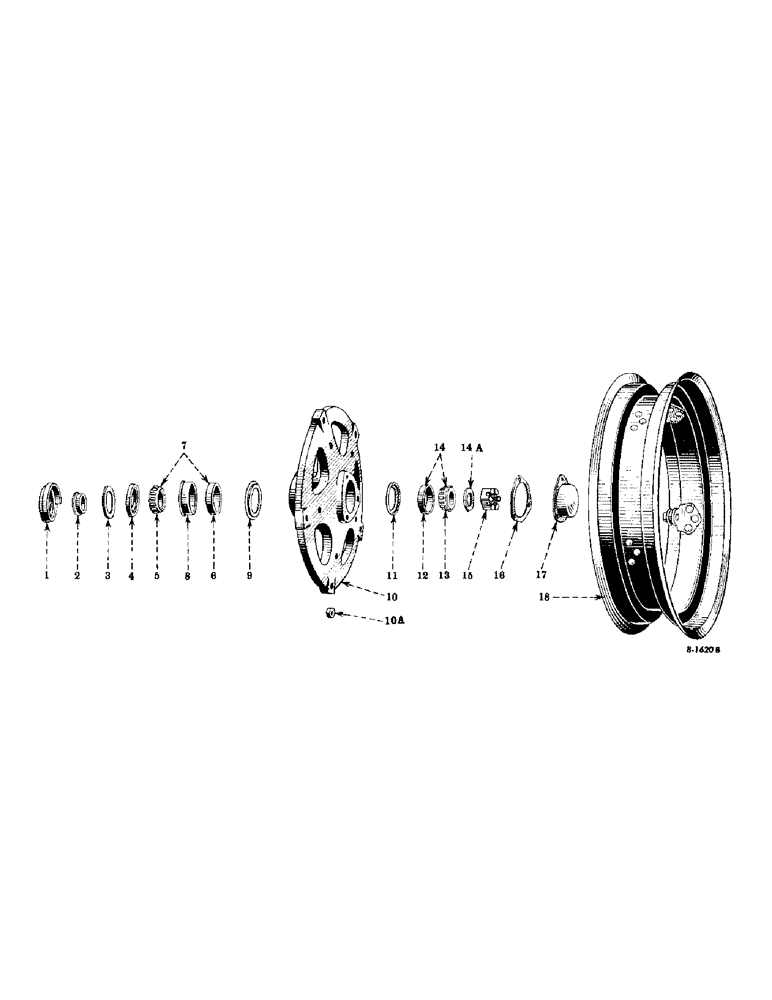

Запчасти Case IH SUPER-HV (128) - CHASSIS, FRONT WHEELS, PNEUMATIC TIRES, SUPER "HV" (12) - CHASSIS

354987R91

WHEEL, front, w/Rim, assembly (Composed of -

2шт.

352777R1

NUT

5шт.

65167D

RIM

1шт.

181779

SCREW

5шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

5шт.

9504DXA

WHEEL)

1шт.

1

48701D

SHIELD

dust, front wheel

2шт.

2

51901D

SPACER

front wheel bearing

2шт.

3

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

felt, front wheel

2шт.

4

48704D

SEAL

OIL SEAL, front wheel

2шт.

5

ST781A

TAPERED BEARING,42.88mm ID x 22.48mm W

CONE, front wheel inner bearing (IH 342-S)

2шт.

6

ST882

CUP

front wheel inner roller bearing (IH-332)

2шт.

7

ST780A

BEARING

front wheel inner roller (IH-342-S-332) (CUP, ST882, w/Cone, ST781A)

2шт.

8

48703D

RETAINER

front wheel felt washer

2шт.

9

60290DA

RETAINER

grease, front wheel bearing, inner

2шт.

10

9504DXA

WHEEL, front, assembly (Composed of -

2шт.

ST869

CUP ASSY.

CUP

1шт.

ST882

CUP

1шт.

48703D

RETAINER

1шт.

60290DA

RETAINER

1шт.

60291D

RETAINER

1шт.

9504D

WHEEL )

1шт.

NSS

1шт.

181779

SCREW, cap, hex-hd., cd-pltd., 5/8-18NF x 2-1/2"

10шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" I.D. x 1-5/16" O.D. x No. 13 ga.

10шт.

10a

352777R1

NUT

front wheel rim mounting, cd-pltd.

10шт.

11

60291D

RETAINER

grease, front wheel bearing, outer

2шт.

12

ST869

CUP ASSY.

CUP, front wheel outer roller bearing (IH-2820)

2шт.

13

ST771A

ROLLER BEARING,34.92mm ID x 23.9mm W

CONE, front wheel outer roller bearing (IH-2878)

2шт.

14

ST770A

BEARING, outer, front wheel (IH-2878-2820) (Cup, ST869 with Cone, ST771A)

2шт.

14a

353838R1

WASHER

WASHER, front wheel outer bearing retainer

2шт.

15

102652

SLOTTED NUT

NUT, slotted-hex., 7/8-14NF

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

16

48547D

GASKET

front wheel hub cap

2шт.

17

48546DA

CAP, front wheel hub

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

18

65167D

RIM, front wheel (4.50 E x 20 DC for 6.00 x 20 tire)

2шт.
