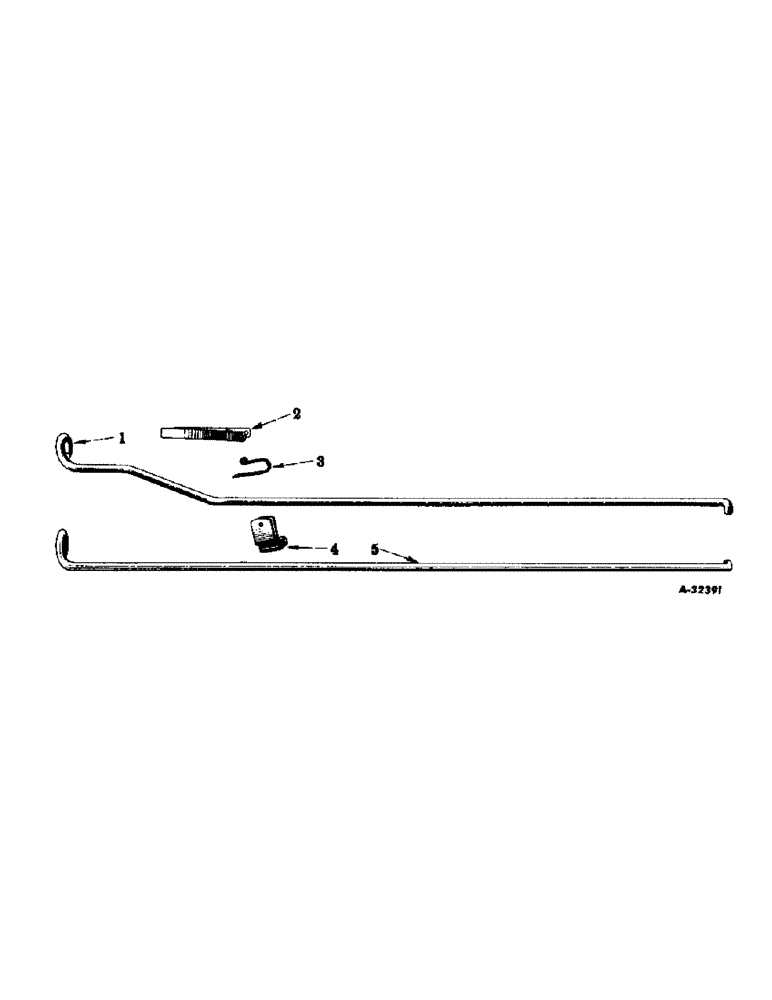

Запчасти Case IH SUPER-HV (189) - HYDRAULIC SYSTEM, REMOTE CONTROL TRACTOR ATTACHMENT, SPECIAL (07) - HYDRAULIC SYSTEM

357481R91

ATTACHMENT, tractor, remote control (Countershaft - driven pump) (For Tractors, Serial Range: 501-19233

1шт.

359527R91

ATTACHMENT, tractor, remote control (Engine - Driven pump)(For Tractors 19234)

1шт.

353215R91

COUPLING, break-away, front section, assembly

1шт.

354037R94

CYLINDER, hydraulic, 3-1/2 x 8", assembly

1шт.

353097R93

VALVE, auxiliary control, assembly

1шт.

357482R91

PACKAGE, hydraulic remote control cylinder

1шт.

1

353115R1

ROD, control (For Tractors 501 to 19233) and connections

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), , Control rod and connections 5/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga), control rod and connections 3/8"

1шт.

2

352237R1

LATCH, control rod, and connections

1шт.

105088

RIVET,But Hd, 3/16" x 2 1/4"

rd-hd., 3/16 x 2-1/4", control rod and connections

1шт.

3

15137E

SPRING

control rod, and connections

1шт.

4

353117R91

SUPPORT, control rod, and connections

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

Control rod and connections #10-24

1шт.

110506

SCREW, slotted, rd-hd., no. 10-24NC x 1-1/4", control rod and connections Slotted Rd Hd, #10-24 x 1 1/4"

1шт.

5

359533R1

ROD, control (For Tractors 19234), and connections

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), , Control rod and connections 5/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga), control rod and connections 3/8"

1шт.
