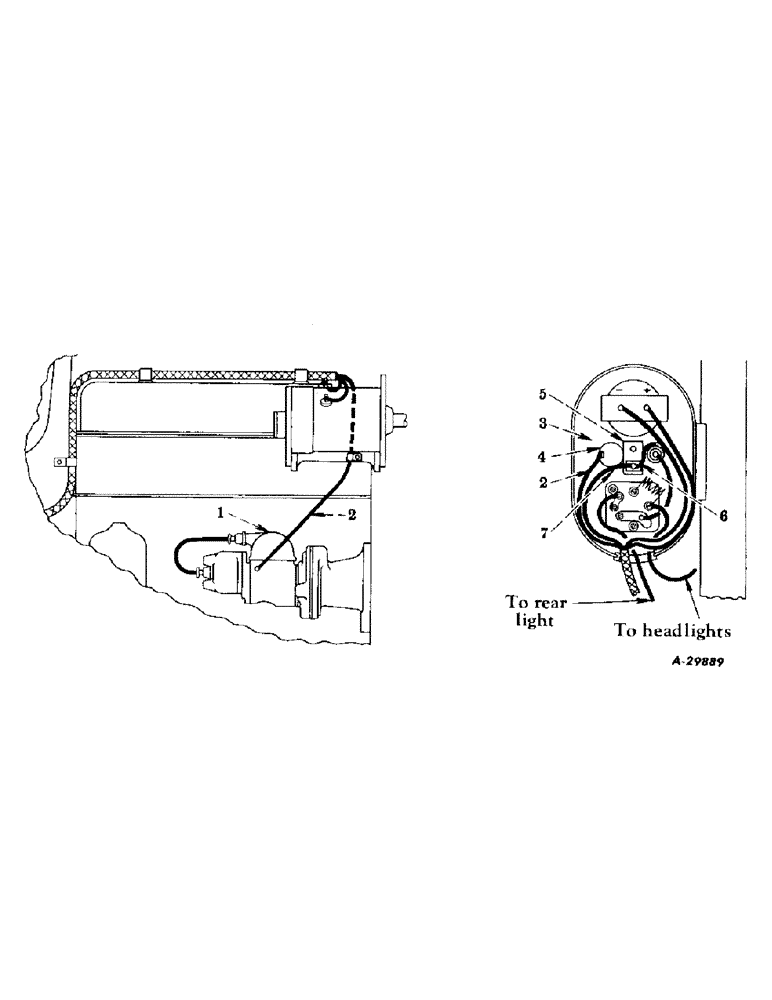

Запчасти Case IH SUPER-HV (080) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, MAGNETO IGNITION, TRACTOR 501 TO 19233 (06) - ELECTRICAL SYSTEMS

359337R91

ATTACHMENT, starting and lighting

1шт.

1

351218R92

MAGNETO

assembly

1шт.

For component parts see list of parts under detail of "Magneto"

1шт.

2

NSS

NOT SOLD SEPARAT

CABLE, ignition switch to magneto (Order 358161R91)

1шт.

3

358440R1

PANEL, instrument

1шт.

4

54207DB

SWITCH

magneto ignition, assembly

1шт.

For component parts see list of parts under detail of "Magneto"

1шт.

5

42915D

BLOCK

junction

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

132919

SCREW,Sl Rnd Hd, #10 - 32 x 7/8"

machine, slotted-rd-hd., cd-pltd., No. 10-32 x 7/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

6

NSS

NOT SOLD SEPARAT

CABLE, fuse housing to junction block (Part of fuse housing)

1шт.

7

NSS

NOT SOLD SEPARAT

CABLE, junction block to regulator "L" terminal (Natural with green cross tracers) (Order 358161R91)

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

junction block

1шт.
