Запчасти Case IH SUPER-HV (066) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

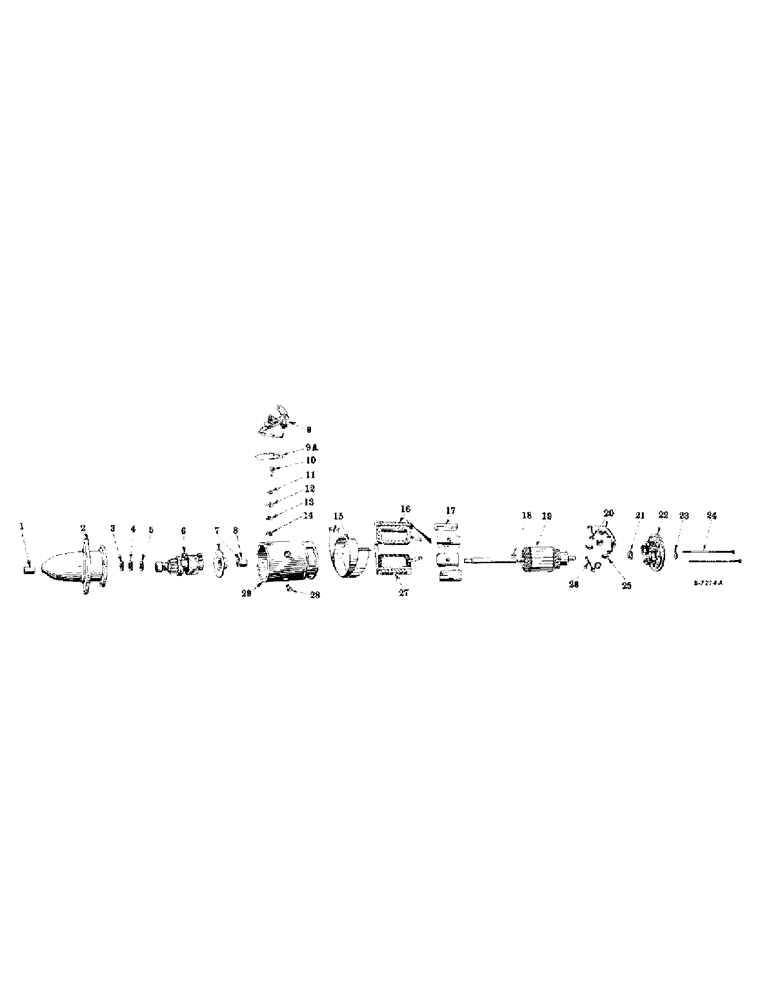

Схема запчастей Case IH SUPER-HV - (066) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS
27
7
5
12
17
22
8
6
23
21
9a
11
25
4
3
18
10
2
20
1
19
26
14
28
13
16
29
8
15
24

Артикул

Название

Примечание

Количество

358160R91

MOTOR, cranking, (Mfr's.#1108112) (For Tractors, Serial Range: 501-19233)

1шт.

357907R91

MOTOR, cranking, (Mfr's.#1108012), Start Serial: 19234

1шт.

1

NSS

NOT SOLD SEPARAT

BUSHING, drive housing (Mfr's.#810620)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, drive, w/bushing, 810620 (Mfr's.#1924468)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, drive w/bushing, 810620 (Mfr's.#1925547)

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER, space, drive end (Mfr's#833602)

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, space, drive end (Mfr's.#809815)

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER, space, drive end (Mfr's#1849774)

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE, motor (Mfr's#1868804) Composed of -

1шт.

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT, (Mfr's.#1855629)

1шт.

NSS

NOT SOLD SEPARAT

HEAD, (Mfr's.#1848530)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, (Mfr's.#1850810)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, (Mfr's.#1850811)

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE, (Mfr's.#1849782)

1шт.

NSS

NOT SOLD SEPARAT

SPRING, (Mfr's.#1860639)

1шт.

NSS

NOT SOLD SEPARAT

WASHER, (Mfr's.#805057)

2шт.

7

NSS

NOT SOLD SEPARAT

BEARING, center, w/bushing, 1838670,(Mfr's.#1838667)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., blued, No. 10-32NF x 5/16" (Mfr's.#142210)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, #10 (Mfr's.#1880781)

2шт.

8

NSS

NOT SOLD SEPARAT

BUSHING, center bearing (Mfr's.#1918405

1шт.

9

NSS

NOT SOLD SEPARAT

SWITCH, starting (For componets see list of part under detail of "Starting Switch")(Mfr's.#1918405

1шт.

9a

NSS

NOT SOLD SEPARAT

GASKET, starting switch (Mfr's.#1912376)

1шт.

10

NSS

NOT SOLD SEPARAT

STUD, terminal (Mfr's #1913694)

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER, terminal stud, plain (outside)(Mfr's. #805790)

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER, terminal stud, plain (outside)(Mfr's.#812622)

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER, terminal stud, plain (inside)(Mfr's.#812622)

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER, terminal stud, plain (inside)(Mfr's.#833795)

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER, insulating, terminal stud (3/4" O.D.)(Mfr's.#1861076)

2шт.

13

NSS

NOT SOLD SEPARAT

WASHER, insulating, termainal stud (9/16" O.D.)(Mfr's.#1904669)

2шт.

14

NSS

NOT SOLD SEPARAT

NUT, terminal stud (Mfr's.#1835299)

1шт.

15

NSS

NOT SOLD SEPARAT

BAND, cover (Mfr's.#1886923)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., cd-pltd., #10-32NF X1-1/4"(Mfr's.#132926)

1шт.

NSS

NOT SOLD SEPARAT

NUT, hex., cd-pltd., #10-32 (Mfr's.#120614

1шт.

16

NSS

NOT SOLD SEPARAT

COIL, field (upper) (Mfr's.#817056)

1шт.

17

NSS

NOT SOLD SEPARAT

SHOE, pole (Mfr's.#810601)

4шт.

NSS

NOT SOLD SEPARAT

SCREW, pole shoe (Mfr's.#1881869)

4шт.

18

NSS

NOT SOLD SEPARAT

KEY, Woodruff, #6 5/32 x 5/8" (Mfr's.#124546)

1шт.

19

NSS

NOT SOLD SEPARAT

ARMATURE, (Mfr's.#818002)

1шт.

20

NSS

NOT SOLD SEPARAT

LEAD, connector, brush (Mfr's#819362)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., cd-pltd., #10-32NF x 1/4" (Mfr's.#132892)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock #10 (Mfr's #106497

2шт.

21

NSS

NOT SOLD SEPARAT

WASHER, space, commutator end (mfr's. #833602)

1шт.

22

NSS

NOT SOLD SEPARAT

FRAME, end, commutator (Mfr's.#1881627)

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG, commujtator end frame (Mfr's.#1865182)

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT, thru (Mfr's.809053)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, cd-pltd., 1/4" (Mfr's.#120380)

2шт.

25

NSS

NOT SOLD SEPARAT

BRUSH, (Mfr's.#811553)

4шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., blued, #6-32NC x 1/2" (Mfr's.#115903)

4шт.

26

NSS

NOT SOLD SEPARAT

LEAD, ground, brush (Mfr;s.#813554)

2шт.

NSS

NOT SOLD SEPARAT

SCREW, slotted-rd-hd., cd-pltd., #8-32NC x 1/4" (Mfr's.#122159)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, cd-pltd., #8 (Mfr's.#121841)

2шт.

27

NSS

NOT SOLD SEPARAT

COIL, field (lower)(Mfr's.#817055)

1шт.

28

NSS

NOT SOLD SEPARAT

Follows Ref.#17 (Mfr's.#1881869)

1шт.

29

NSS

NOT SOLD SEPARAT

FRAME

1шт.

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT, motor drive (Mfr's.#1855629)

1шт.

NSS

NOT SOLD SEPARAT

HEAD, motor drive (Mfr's.#1848530)

1шт.

NSS

NOT SOLD SEPARAT

HOLDER, brush (Mfr's.#810226)

4шт.

NSS

NOT SOLD SEPARAT

OILER, commutator end frame (Mfr's.#1880642)

1шт.

NSS

NOT SOLD SEPARAT

PIN, brush holder hinge (Mfr's.#817313)

2шт.

NSS

NOT SOLD SEPARAT

PIN, brush holder frame, w/insulation (Mfr's.#817314)

2шт.

NSS

NOT SOLD SEPARAT

PIN, brush holder stop, w/insulation (Mfr's.#812015

2шт.

NSS

NOT SOLD SEPARAT

PIN, dowel, commutator end (Mfr's.#809062)

1шт.

NSS

NOT SOLD SEPARAT

PIN, dowel, drive end (Mfr's.#809593

1шт.

NSS

NOT SOLD SEPARAT

SCREW, motor drive spring (At head) (Mfr's.#1850811)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, motor drive spring (Shaft end) (Mfr's.#1850810)

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE, motor drive (Mfr's.#1849782)

1шт.

NSS

NOT SOLD SEPARAT

SPRING, brush (Mfr's.#813521)

4шт.

NSS

NOT SOLD SEPARAT

SPRING, motor drive (Mfr's.#1860639)

1шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, drive spring screw (Mfr's.#805057)

2шт.

NSS

NOT SOLD SEPARAT

WICK, oil, commutator end (Mfr's.#802694)

1шт.

Выбрано товаров: 70
