Запчасти Case IH SUPER-HV (065) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, CONTROL ROD AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

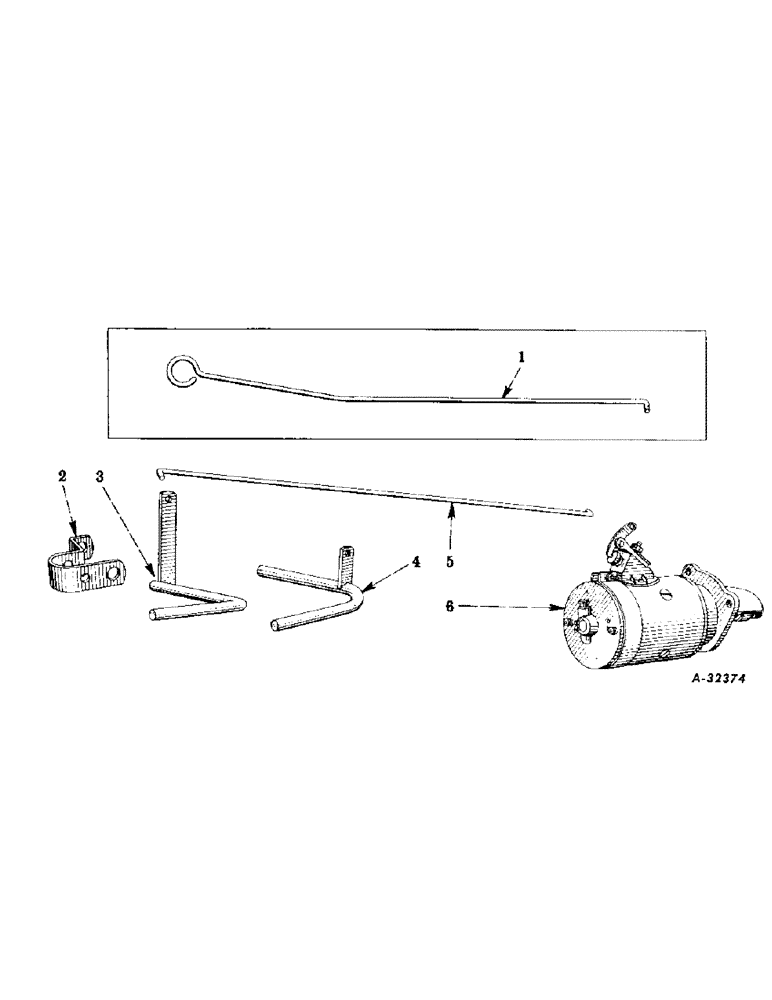

Схема запчастей Case IH SUPER-HV - (065) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, CONTROL ROD AND CONNECTIONS (06) - ELECTRICAL SYSTEMS
5
1
6
2
3
4

Артикул

Название

Примечание

Количество

1

358204R1

SPARE PART ROD, starting switch control, Serial Range: (501-13339)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

2

351924R1

SPARE PART BRACKET, starting switch actuator lever (13340 up)

1шт.

425-115

NUT,5/16"-24, G5

NUT, hex., 5/16 x 24NF

1шт.

181348

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 5/16 x 24NF x 2-1/4"

1шт.

3

360209R11

SPARE PART LEVER, actuating, starting switch rod (For Tractors 19234 up)

1шт.

4

360127R11

SPARE PART LEVER, actuating, starting switch rod (13340 up)(For Tractors, Serial Range: 501-19234)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

360129R1

SPARE PART ROD, starting switch control, Serial Range: (13340-19233)

1шт.

5

360211R1

SPARE PART ROD, starting switch control (For Tractors 19234 up)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

6

358160R91

MOTOR, cranking, (For Tractors 501 to 19234 (Mfr's. No. 1108016)

1шт.

For Components See List of Parts Under Detail of "Cranking Motor"

1шт.

6

357907R91

MOTOR, cranking, (For Tractors 19234 up)(Mfr's.#1108012)

1шт.

For Components See List of Parts Under Detail of "Cranking Motor"

1шт.

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

142186H

WASHER

WASHER, switch terminal, plain (Mfr's.#812622)

1шт.

110730

LOCK WASHER

WASHER, lock, medium, 3/8"

1шт.

Выбрано товаров: 18
