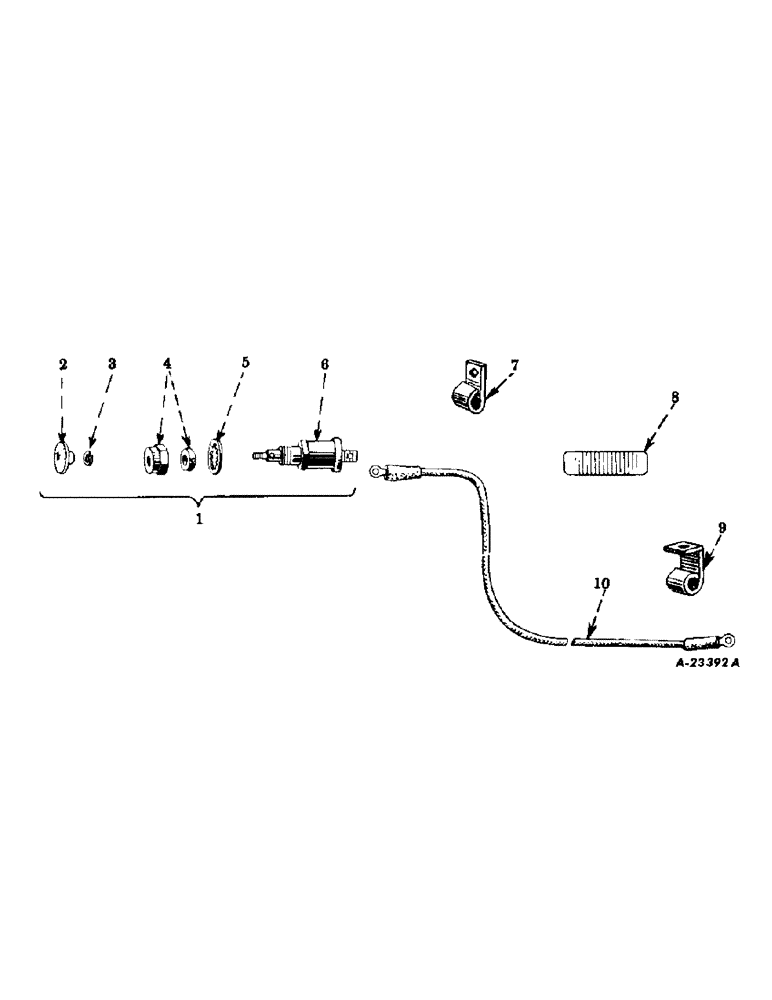

Запчасти Case IH SUPER-HV (057) - ELECTRICAL SYSTEM, MAGNETO IGNITION SWITCH (06) - ELECTRICAL SYSTEMS

1

54207DB

SWITCH

magneto ignition, assembly

1шт.

64022H

SCREW, slotted-special-hd., cd-pltd., No. 8-32NC x 5/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

2

8732D

KNOB, switch, magneto ignition

1шт.

3

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

4

56517DX

NUT, mounting, magneto ignition switch, w/Seal

1шт.

5

138553

WASHER

lock, switch mounting nut (Shakeproof 1226)

1шт.

6

NSS

NOT SOLD SEPARAT

SWITCH, magneto ignition (Order 54207DB)

1шт.

7

58262D

CLIP, magneto ignition switch cable (For tractors not equipped with starting and lighting)

1шт.

220064

NUT

hex., 1/4-20NC

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

350525R1

CLAMP, magneto ignition switch cable (For tractors not equipped with starting and lighting)

1шт.

9

55471DA

CLIP, magneto ignition switch cable (For tractors not equipped with starting and lighting)

1шт.

10

358316R91

CABLE, magneto ignition switch (For tractors not equipped with starting and lighting)

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, slotted-fil-hd., cd-pltd., No. 10-32NF x 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

52728D

CUSHION, oil pipe (Used with Clamp, 350525R1)

1шт.
