Запчасти Case IH SUPER-HV (056) - ELECTRICAL SYSTEM, BATTERY IGNITION SWITCH (06) - ELECTRICAL SYSTEMS

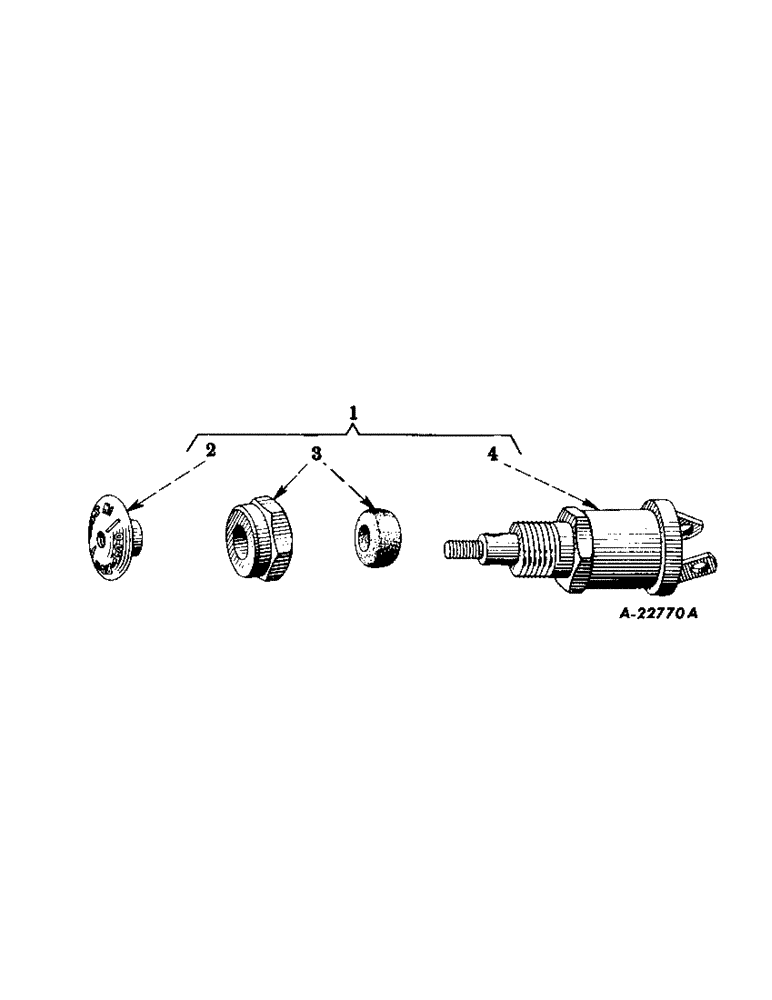

Схема запчастей Case IH SUPER-HV - (056) - ELECTRICAL SYSTEM, BATTERY IGNITION SWITCH (06) - ELECTRICAL SYSTEMS
4
3
1
2

Артикул

Название

Примечание

Количество

1

62801DC

SWITCH

battery ignition, assembly

1шт.

64022H

SCREW, slotted special-hd., cd-pltd., No. 8-32NC x 5/16"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

2

8732D

KNOB, switch

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

56517DX

NUT, mounting, switch, w/Seal

1шт.

138553

WASHER

lock, internal-tooth, cd-pltd., 9/16"

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH, battery ignition (Order 62801DC)

1шт.

59109D

SPACER, ignition switch

1шт.

Выбрано товаров: 9
