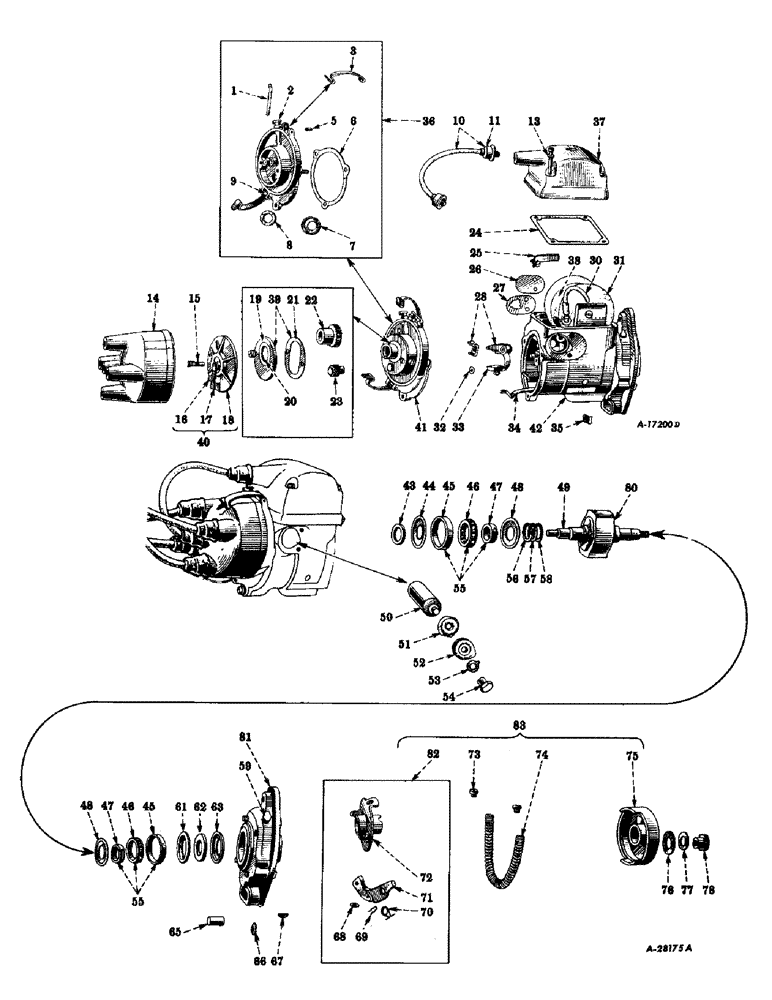

Запчасти Case IH SUPER-HV (046) - ELECTRICAL SYSTEM, MAGNETO, INTERNATIONAL TYPE H-4 (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
351218R92
MAGNETO
assembly
1шт.
1
E4216
FELT, oil well
1шт.
2
E4295
OILER
1шт.
3
51666D
SPRING, distributor cap
2шт.
5
47424D
PIN, locating, distributor cap
1шт.
6
47408D
GASKET
distributor body
1шт.
7
49424D
RETAINER, distributor body felt seal
1шт.
8
49423D
SEAL, felt, distributor body
1шт.
9
51667D
PIN, distributor cap spring
2шт.
10
356686R92
CABLE
coil to distributor, w/two Nipples, 251553R1
1шт.
11
251553R1
BOOT
NIPPLE, coil to distributor cable
2шт.
13
38609DA
WASHER, mounting, coil cover
4шт.
14
47413DXC
CAP
distributor
1шт.
14
47413DYC
CAP
distributor, 47413DXC, w/Brush, 21350DXA, 32032DXA or 356622R11
1шт.
15
21350DXA
BRUSH, distributor, w/Spring (Optional with 32032DXA or 356622R11)
1шт.
15
32032DXA
BRUSH
distributor, w/Spring (Optional with 21350DXA or 356622R11)
1шт.
15
356622R11
BRUSH, distributor, w/Spring (Optional with 21350DXA or 32032DXA)
1шт.
16
47427D
NUT
distributor rotor
1шт.
131181
WASHER, lock, light, cd-pltd., No. 6
1шт.
17
47428DA
ARM
distributor
1шт.
18
47425DX
ROTOR, distributor
1шт.
19
49417D
RETAINER, distributor gear cover felt seal
1шт.
20
49418D
SEAL, felt, distributor gear cover
1шт.
21
49419D
GASKET
distributor gear cover
1шт.
22
49420DX
PINION
GEAR, distributor (24 teeth)
1шт.
23
47417DX
PINION
rotor
1шт.
24
47453D
GASKET
coil cover
1шт.
25
47452D
STRAP, secondary leadout
1шт.
436652
SCREW, slotted-pan-hd., No. 4-48NF x 5/16"
1шт.
131093
WASHER, lock, heavy, cd-pltd., No. 4
1шт.
26
55015D
COVER, condenser hole
1шт.
121832
SCREW,Sl Rnd Hd, #8 - 32 x 3/8"
slotted-rd-hd., cd-pltd., No. 8-32NC x 3/8"
2шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
27
359966R1
GASKET
condenser hole cover (Will work for 48472DA)
1шт.
28
353171R91
CONTACT
PACKAGE, breaker Arm and stationary Point
1шт.
436692
SCREW,Slotted Pan Hd, #8-32 x 5/16"
slotted-pan-hd., cd-pltd., No. 8-32 NC x 5/16"
1шт.
30
47442D
TUBE, primary to condenser leadout
1шт.
31
49593D
INSULATOR, coil end
2шт.
32
21394D
WASHER
stationary point support
1шт.
33
47432D
ANCHOR
spring
1шт.
120622
NUT,#8-32
1шт.
133482
SCREW, slotted-fl-hd., cd-pltd., No. 8-32NC x 3/8"
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
34
47433DX
CABLE
primary leadout
1шт.
35
48339D
CLIP, condenser
1шт.
131992
LEVER
slotted-fil-hd., cd-pltd., No. 8-32NC x 1-1/4"
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
36
6483DAY
BODY, distributor, assembly (Composed of -
1шт.
6483DA
BODY
1шт.
E4216
FELT
1шт.
47408D
GASKET
1шт.
E4295
OILER
1шт.
47424D
PIN
1шт.
51667D
PIN
2шт.
49424D
RETAINER
1шт.
49423D
SEAL
1шт.
47486D
SHAFT
1шт.
51666D
SPRING)
2шт.
37
47449DAY
COVER ASSY
COVER, coil, w/Strap, assembly (Composed of -
1шт.
47449DA
COVER
1шт.
47451D
INSERT
1шт.
436652
SCREW
1шт.
47452D
STRAP
1шт.
131093
WASHER)
1шт.
131997
SCREW, slotted-fil-hd., cd-pltd., No. 8-32NC x 1-1/2"
4шт.
38
21314DX
CORE
coil, w/two Screws, 133495
1шт.
38
47439DAX
COIL ASSY.
COIL AND CORE, assembly (Composed of -
1шт.
57926DX
COIL
1шт.
21314D
CORE
1шт.
SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2
slotted-fl-hd., cd-pltd., No. 8-32NC x 5/8"
2шт.
38
57926DX
COIL
w/Insulators, assembly (Composed of -
1шт.
57926D
COIL
1шт.
47446D
INSULATOR
2шт.
49593D
INSULATOR
2шт.
47447D
PATCH
1шт.
51465D
PATCH
1шт.
27534D
STICKER
1шт.
47448D
STRIP
1шт.
51466D
TAPE
1шт.
47445D
TERMINAL
1шт.
49448D
TERMINAL
1шт.
25977D
TUBE
1шт.
47442D
TUBE
1шт.
47440DA
WINDING
1шт.
39
49416DX
COVER, distributor gear, assembly (Composed of -
1шт.
49416D
COVER
1шт.
49419D
GASKET
1шт.
49417D
RETAINER
1шт.
49418D
SEAL)
1шт.
132760
SCREW,Sl Rnd Hd, #8 - 32 x 1/2"
slotted-rd-hd., cd-pltd., No. 8-32NC x 1/2"
2шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
40
47425DY
CAP
ROTOR, distributor, assembly (Composed of -
1шт.
47428DA
ARM
1шт.
47427D
NUT
1шт.
47425DX
ROTOR
1шт.
131181
WASHER)
1шт.
41
56066DA
DISTRIBUTOR, assembly (Composed of -
1шт.
6483DAY
BODY
1шт.
49416DX
COVER
1шт.
49420DX
PINION
GEAR
1шт.
47417DX
PINION
1шт.
132760
SCREW,Sl Rnd Hd, #8 - 32 x 1/2"
2шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
132124
SCREW,Sl Fil Hd, #10 - 32 x 3/4"
slotted-fil-hd., cd-pltd., No. 10-32NF x 3/4"
3шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
3шт.
42
6482DAY
FRAME, assembly (Composed of -
1шт.
55015D
COVER
1шт.
E4226
FELT
1шт.
6482DAX
FRAME
1шт.
48472DA
GASKET
1шт.
47485D
POST
1шт.
ST601
RACE
1шт.
47454D
RETAINER
1шт.
121832
SCREW,Sl Rnd Hd, #8 - 32 x 3/8"
2шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
43
E4226
FELT, bearing
1шт.
44
47454D
RETAINER, bearing felt, inner
1шт.
45
ST601
RACE
outer, rotor shaft ball bearing (IH-15-0)
2шт.
46
ST602
BEARING
RETAINER, rotor shaft ball bearing, w/Balls (IH-15-R.U.)
2шт.
47
ST600
BEARING
RACE, inner, rotor shaft ball bearing (IH-15-1)
2шт.
48
E4A324
FLINGER, oil
2шт.
49
60094D
CAM, breaker
1шт.
50
21409DB
CONDENSER
1шт.
51
47438DA
WASHER, short circuiting terminal, inner
1шт.
52
48341D
WASHER, short circuiting terminal, outer
1шт.
53
48342DA
WASHER, lock, short circuiting terminal
1шт.
54
48340DA
TERMINAL, short circuiting
1шт.
132100
SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"
SCREW, slotted-fil-hd., cd-pltd., No. 10-32NF x 5/16"
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
55
ST307
BALL BEARING,0.5906" ID x 1.378" OD x 0.315"
BEARING, ball, rotor shaft (IH-M-15)
2шт.
56
E4A305
SHIM, rotor, light
1шт.
57
E4212
SHIM, rotor, medium
1шт.
58
E4A372
SHIM, rotor, heavy
1шт.
59
27311D
OILER, impulse coupling
1шт.
61
47474D
WASHER, oil retainer, inner (Order 353051R91)
1шт.
62
47475DA
OIL SEAL (Order 353051R91)
1шт.
63
47473D
WASHER, oil retainer, outer (Order 353051R91)
1шт.
65
47468DA
PIN, stop, impulse coupling
1шт.
66
114616
WASHER
lock, external-tooth-ck., 1/4"
4шт.
67
106749
KEY
Woofruff, No. 3, 1/8 x 1/2"
1шт.
68
24610D
WASHER, pawl pin
1шт.
69
30114D
RING, snap, pawl pin
2шт.
70
51303D
VALVE SPRING
SPRING, pawl
2шт.
71
351367R91
PAWL
2шт.
72
351366R91
MEMBER, magneto
1шт.
73
251555R1
BUTTON
spring end
2шт.
74
47822D
SPRING
coupling, magneto
1шт.
75
251558R11
MEMBER, drive
1шт.
76
24603D
WASHER, lock, magneto drive member
1шт.
77
251591R1
WASHER, lock, impulse coupling, cd-pltd., 1/2"
1шт.
78
47470D
NUT, coupling, impulse
1шт.
80
47455DAR
ROTOR, assembly (Composed of -
1шт.
60094D
CAM
1шт.
E4A324
FLINGER
2шт.
57314D
KEEPER
1шт.
106749
KEY
1шт.
ST600
BEARING
RACE
2шт.
ST602
BEARING
RETAINER
2шт.
47457DAX
ROTOR
1шт.
E4212
SHIM
1шт.
E4A305
SHIM
1шт.
E4A372
SHIM)
1шт.
81
6515DAX
FLANGE, mounting, assembly (Composed of -
1шт.
6515DA
FLANGE
1шт.
27311D
OILER
1шт.
353050R1
OIL SEAL
1шт.
47468DA
PIN
1шт.
ST601
RACE
(IH)
1шт.
353052R1
WASHER
1шт.
353053R1
WASHER
1шт.
173464
SCREW, slotted-fl-hd., 1/4-20NC x 9/16"
4шт.
82
351434R91
MEMBER, magneto, w/Pawls, assembly (Composed of -
1шт.
351366R91
MEMBER
1шт.
351367R91
PAWL
2шт.
30114D
RING
2шт.
51303D
VALVE SPRING
SPRING
2шт.
24610D
WASHER)
2шт.
83
351365R91
ROTOR
UNIT, rotating, assembly (Composed of -
1шт.
251555R1
BUTTON
2шт.
251558R11
MEMBER
1шт.
351434R91
MEMBER
1шт.
47822D
SPRING
)
1шт.
21314D
CORE
w/two Screws, 133495
1шт.
57755D
GAGE, breaker point
1шт.
21372D
GREASE, distributor or magneto, tube of
1шт.
359766R91
GREASE, magneto, ball bearing, tube of
1шт.
57314D
KEEPER, magneto
1шт.
353051R91
HOLDER
PACKAGE, service, oil seal (Consists of -
1шт.
353050R1
SEAL
1шт.
353054R1
SHIM
1шт.
E4212
SHIM
2шт.
E4A305
SHIM
2шт.
E4A372
SHIM
2шт.
353052R1
WASHER
1шт.
353053R1
WASHER
1шт.
69398D
VARNISH, insulating, electrical (1 pint) (Furnished when ordered)
1шт.
