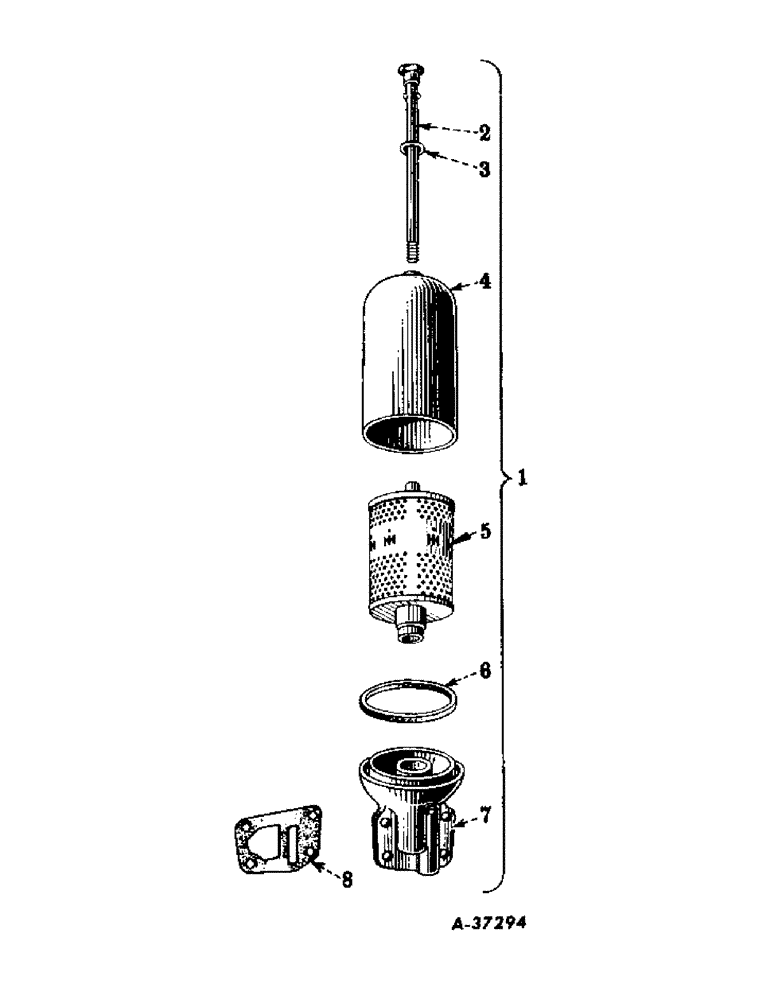

Запчасти Case IH SUPER-HV (025) - ENGINE, LUBRICATING OIL FILTER (01) - ENGINE

1

57168DD

FILTER, oil, assembly (Includes: Ref.#s.1 - 7)

1шт.

2

63857DA

BOLT

retaining, oil filter case

1шт.

3

13727D

GASKET

GASKET, oil, filter case retaining bolt (Will work for 365109R1)

1шт.

4

63856D

CASE

oil filter

1шт.

5

355009R91

NO LONGER SERVICED

ELEMENT, oil filter (Heavy duty radial fin type)

1шт.

These parts are not included in Oil Filter, assembly

1шт.

5

360430R91

ENGINE OIL FILTER

ELEMENT, oil filter (Normal duty radial fin type)

1шт.

6

13728D

GASKET

oil filter case

1шт.

7

6253DBX

BASE, oil filter, w/Plug, 103866

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., CI, 1/4" (Optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (Optional with 103866)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

These parts are not included in Oil Filter, assembly

1шт.

8

45447D

GASKET

oil filter base

1шт.
