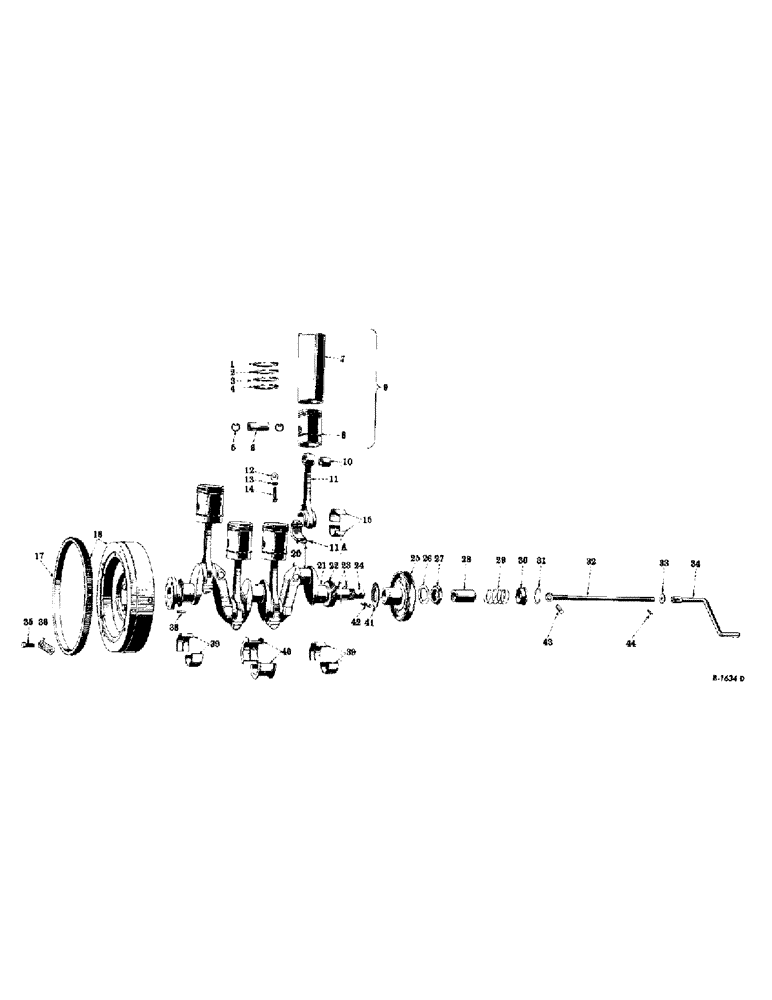

Запчасти Case IH SUPER-HV (006) - ENGINE, CRANKSHAFT & RELATED PARTS, RODS, PISTONS, CYL. SLEEVES, DRIVE PULLEY, FLYWHEEL, & CRANK (01) - ENGINE

1

366806R1

RING, compression, piston (Top or first groove) (Chrome) (Gasoline)

4шт.

For engines with 3-1/2" pistons.

1шт.

1

366805R1

RING, compression, piston (Top or first groove) (Chrome) (Distillate or Kerosene)

4шт.

For engines with 3-1/2" pistons.

1шт.

1

366266R1

RING

compression, piston (Top or first groove) (Chrome) (Gasoline or Distillate)

4шт.

For engines with 3-9/16" pistons.

1шт.

1

366267R1

RING, compression, piston (Top or first groove) (Chrome) (Kerosene)

4шт.

2

358183R1

RING, compression, piston, 3/32" thick (Second groove) (Perfect Circle 70) (Optional with 358184R1)

4шт.

For engines with 3-1/2" pistons.

1шт.

2

358184R1

RING, compression, scraper, piston, 3/32" thick (Second groove) (Wilkening SCI) (Optional with 358183R1)

4шт.

For engines with 3-1/2" pistons.

1шт.

2

366268R1

RING

compression, piston (Second groove)

4шт.

For engines with 3-9/16" pistons.

1шт.

3

358183R1

RING, compression, piston, 3/32" thick (Third groove) (Perfect Circle) (Optional with 358184R1)

4шт.

For engines with 3-1/2" pistons.

1шт.

3

358184R1

RING, compression, piston, 3/32" thick (Third groove) (Wilkening SCI) (Optional with 358183R1

4шт.

For engines with 3-1/2" pistons.

1шт.

3

366268R1

RING

compression, piston (Third groove

4шт.

For engines with 3-9/16" pistons.

1шт.

4

366807R91

RING, oil, piston (Fourth groove) (Chrome)

4шт.

For engines with 3-1/2" pistons.

1шт.

4

366269R91

RING, oil, piston (Fourth groove) (Chrome)

4шт.

For engines with 3-9/16" pistons.

1шт.

5

16014DA

RING

piston pin retainer (Used only with 43793D and 53135D)

8шт.

5

19517D

SPECIAL RING

RING, piston pin retainer (Used only with 70014R1 and 70015R1)

8шт.

6

43793D

PIN

piston (Standard) (Large Dia. - 1-7/64")

4шт.

6

53135D

PIN, piston (.005" oversize) (Large Dia. - 1-7/64" - .005")

4шт.

6

70014R1

PIN

piston (Standard) (Small Dia. - 7/8")

4шт.

6

70015R1

PIN, piston (.005" oversize) (Small Dia. - 7/8" - .005")

4шт.

7

366751R1

SLEEVE, cylinder

4шт.

8

PISTON (Order cylinder Sleeve, w/Piston and Rings, assembly, for standard or high altitude)

1шт.

9

367104R91

SLEEVE ASSY

SLEEVE SET, crankcase ("Thinwall") (Consists of Four Sleeves w/Pistons and Rings, 367105R91) (Gasoline - standard altitude) (Order 374318R91)

1шт.

Also order connecting rod Adapter and Bushing service package, 366883R92 when installing "sleeve sets"

1шт.

Cylinder Head Gasket, 362746R2 must be used with these "Sleeve Sets"

1шт.

9

374318R91

SLEEVE SET, crankcase ("Fire Crater Increased Power") (Consists of Four Sleeves w/Pistons and Rings, 374319R91) (Gasoline - standard altitude)

1шт.

Also order connecting rod Adapter and Bushing service package, 366883R92 when installing "sleeve sets"

1шт.

Cylinder Head Gasket, 362746R2 must be used with these "Sleeve Sets"

1шт.

9

367006R91

SLEEVE SET, crankcase ("Thinwall") (Consists of Four Sleeves w/Pistons and Rings, 367007R91) (Gasoline - high altitude) (Order 374442R91)

1шт.

Also order connecting rod Adapter and Bushing service package, 366883R92 when installing "sleeve sets"

1шт.

Cylinder Head Gasket, 362746R2 must be used with these "Sleeve Sets"

1шт.

9

374442R91

SLEEVE SET, crankcase ("Fire Crater Increased Power") (Consists of Four Sleeves w/Pistons and Rings, 374443R91) (Gasoline - high altitude) (Also order connecting rod Adapter and Bushing service package, 366883R92 when installing "sleeve sets")

1шт.

Also order connecting rod Adapter and Bushing service package, 366883R92 when installing "sleeve sets"

1шт.

Cylinder Head Gasket, 362746R2 must be used with these "Sleeve Sets"

1шт.

9

367105R91

SLEEVE

cylinder w/Piston and Rings assembly ("Thinwall") (Gasoline - standard altitude)Composed of -

4шт.

For service replacement of "Thickwall" cylinder sleeves with pistons for proper fuel and altitude.

1шт.

70014R1

PIN

1шт.

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

366268R1

RING

2шт.

366266R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

9

374319R91

SLEEVE ASSY

SLEEVE, cylinder w/Piston and Rings assembly ("Fire Crater Increased Power") (Gasoline - standard altitude) (Composed of -

4шт.

43793D

PIN

1шт.

PISTON (NSS)

1шт.

16014DA

RING

2шт.

366268R1

RING

2шт.

366266R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

9

367007R91

SLEEVE, cylinder w/Piston and Rings assembly ("Thinwall") (Gasoline - high altitude)Composed of -

4шт.

For service replacement of "Thickwall" cylinder sleeve with piston, assembly order set of four "Thinwall" cylinder sleeves with pistons for proper fuel and altitude. Composed of -

1шт.

70014R1

PIN

1шт.

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

366268R1

RING

2шт.

366266R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

9

374443R91

SLEEVE, cylinder w/Piston and Rings assembly ("Fire Crater Increased Power") (Gasoline - high altitude) (Composed of -

1шт.

43793D

PIN

1шт.

PISTON (NSS)

1шт.

16014DA

RING

2шт.

366268R1

RING

2шт.

366266R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

9

367585R91

SLEEVE SET, crankcase ("Thinwall") (Consists of Four Sleeves, w/Pistons and Rings, 367586R91) (Distillate - standard altitude) (Cylinder Head Gasket, 362746R2 must be used with these "sleeve sets"

1шт.

Cylinder Head Gasket, 362746R2 must be used with these "Sleeve Sets"

1шт.

9

367592R91

SLEEVE SET, crankcase ("Thinwall") (Consists of Four Sleeves, w/Pistons and Rings, 367593R91) (Distillate - high altitude) (Note E)

1шт.

Cylinder Head Gasket, 362746R2 must be used with these "Sleeve Sets"

1шт.

9

367586R91

SLEEVE, cylinder w/Piston and Rings, assembly ("Thinwall") (Distillate - standard altitude) (Composed of -

4шт.

For service replacement of "Thickwall" cylinder sleeves with pistons for proper fuel and altitude.

1шт.

43793D

PIN

1шт.

PISTON (NSS) (Not serviced separately)

1шт.

16014DA

RING

2шт.

366268R1

RING

2шт.

366266R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

9

367593R91

SLEEVE, cylinder w/Piston and Rings, assembly ("Thinwall") (Distillate - high altitude)

4шт.

For service replacement of "Thickwall" cylinder sleeve with piston, assembly order set of four "Thinwall" cylinder sleeves with pistons for proper fuel and altitude. Composed of -

1шт.

43793D

PIN

1шт.

PISTON (NSS)(Not serviced separately)

1шт.

16014DA

RING

2шт.

366268R1

RING

2шт.

366266R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

9

367106R91

SLEEVE SET, crankcase ("Thinwall") (Consists of Four Sleeves, w/Piston and Rings, 367107R91) (Kerosene-standard altitude) (Notes D and E)

1шт.

9

367008R91

SLEEVE SET, crankcase ("Thinwall") (Consists of Four Sleeves, w/Piston and Rings, 367009R91) (Kerosene-high altitude) (Notes C and E)

1шт.

9

367107R91

SLEEVE, cylinder, w/Piston and Rings, assembly ("Thinwall") (Kerosene-standard altitude) Composed of -

4шт.

For service replacement of "Thickwall" cylinder sleeve with piston, assembly order set of four "Thinwall" cylinder sleeves with pistons for proper fuel and altitude. Composed of -

1шт.

70014R1

PIN

1шт.

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

366268R1

RING

2шт.

366267R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

9

367009R91

SLEEVE, cylinder, w/Piston and Rings, assembly ("Thinwall") (Kerosene - high altitude) (Composed of -

4шт.

For service replacement of "Thickwall" cylinder sleeve with piston, assembly order set of four "Thinwall" cylinder sleeves with pistons for proper fuel and altitude. Composed of -

1шт.

70014R1

PIN

1шт.

PISTON (NSS)

1шт.

19517D

SPECIAL RING

RING

2шт.

366268R1

RING

2шт.

366267R1

RING

1шт.

366269R91

RING

1шт.

366751R1

SLEEVE)

1шт.

10

355454R1

BUSHING, piston pin

4шт.

11

43785DDXA

ROD, connecting, assembly (Composed of -

4шт.

63119D

BOLT,Hex, 3/8" - 24 x 1 25/32"

2шт.

355454R1

BUSHING

1шт.

43786DB

CAP (NSS)

1шт.

47499DB

LOCK

2шт.

43785DD

ROD (NSS)

1шт.

63115D

WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk

)

2шт.

11a

43786DB

CAP, connecting rod (Order 43785DDXA)

4шт.

12

47499DB

LOCK

connecting rod bolt

8шт.

13

63115D

WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk

connecting rod bolt

8шт.

14

63119D

BOLT,Hex, 3/8" - 24 x 1 25/32"

connecting rod

8шт.

15

357990R11

BEARING ASSY

BEARING, connecting rod (2 halves) (Standard)

4шт.

15

357992R11

BEARING LINER

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

15

360200R11

BEARING, connecting rod (2 halves) (.003" undersize)

4шт.

15

357991R11

CRANKSHAFT BEARING

BEARING, connecting rod (2 halves) (.030" undersize)

4шт.

15

357993R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

15

367879R91

KIT

BEARING SET, crankshaft connecting rod (Standard) (Consists of Four Bearings, 357990R11)

1шт.

15

372119R91

PACKAGE

BEARING SET, crankshaft connecting rod (.030" undersize) (Consists of Four Bearings, 357991R11)

1шт.

17

45638DB

GEAR

ring, flywheel (104 teeth)

1шт.

18

358070R11

FLYWHEEL, w/ring Gear, 45638DB

1шт.

20

353745R95

CRANKSHAFT

w/Bearing, assembly (Standard) (Composed of -

1шт.

357990R11

BEARING ASSY

BEARING

4шт.

357994R11

BEARING LINER

BEARING

2шт.

357998R11

BEARING ASSY

BEARING

1шт.

43734DF

CRANKSHAFT (NSS)

1шт.

24402D

NUT

1шт.

46923D

PIN

1шт.

20

352748R94

CRANKSHAFT, w/Bearing, assembly (.030" undersize) (Composed of -

1шт.

357991R11

CRANKSHAFT BEARING

BEARING

4шт.

357995R11

BEARING

2шт.

357999R11

BEARING

1шт.

43735DG

CRANKSHAFT (NSS)

1шт.

24402D

NUT

1шт.

46923D

PIN

1шт.

21

124551

SCREW

Woodruff "A", aly-stl., 1/4 x 7/8" (Crankshaft pinion)

1шт.

22

43706D

GEAR

PINION, crankshaft (24 teeth)

1шт.

23

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Woodruff "A", aly-stl., 1/4 x 7/8" (Fan drive pulley)

1шт.

24

110992

Follows Reference No. 42

1шт.

25

6125DC

PULLEY, fan drive

1шт.

26

24403D

WASHER

LOCK, crankshaft pinion nut

1шт.

27

24402D

NUT

crankshaft pinion

1шт.

28

6157D

RATCHET, starting crank

1шт.

29

43859DA

SPRING, starting crank

1шт.

30

43860D

RETAINER, starting crank spring

1шт.

31

43857D

RING, snap, starting crank ratchet

1шт.

32

43858DB

SHAFT, starting crank

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

33

353775R1

WASHER

plain, 25/32" I.D. x 1-5/8" O.D. x No. 10 ga.

1шт.

34

51544DBX

CRANK

starting (Optional with 354705R31) (Not adjustable wide front axle)

1шт.

34

354705R31

CRANK, starting (Optional with 51544DBX) (Not adjustable wide front axle)

1шт.

35

43832D

SCREW

BOLT, Serial Range: flywheel-crankshaft

4шт.

36

43833DA

LOCK

flywheel to crankshaft bolt

2шт.

38

46923D

PIN

dowel, flywheel

1шт.

39

357994R11

BEARING LINER

BEARING, crankshaft, front and rear (2 halves) (Standard)

2шт.

39

357996R11

BEARING ASSY

BEARING, crankshaft, front and rear (2 halves) (.002" undersize)

2шт.

39

360201R11

BEARING, crankshaft, front and rear (2 halves) (.003" undersize)

2шт.

39

357995R11

BEARING, crankshaft, front and rear (2 halves) (.030" undersize)

2шт.

39

357997R11

BEARING, crankshaft, front and rear (2 halves) (.032" undersize)

2шт.

40

357998R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (Standard)

1шт.

40

358000R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (.002" undersize)

1шт.

40

360202R11

BEARING, crankshaft, center (2 halves) (.003" undersize)

1шт.

40

357999R11

BEARING, crankshaft, center (2 halves) (.030" undersize)

1шт.

40

358001R11

BEARING, crankshaft, center (2 halves) (.032" undersize)

1шт.

41

43705DA

FLINGER, oil, crankshaft front

1шт.

42

24405D

PIN

starting crank (Order 577140R1)

1шт.

110992

SCREW, set, slotted-hdls., cup-pt., 5/16-18NC x 5/16"

1шт.

42

577140R1

LOCK PIN,3/8" x 1 7/8", Slotted

PIN, , ESNA, starting crank (Will work for 24405D) 3/8" x 1 7/8", Slotted

1шт.

43

43855D

PIN, starting crank ratchet

1шт.

44

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

PIN - , starting crank 5/16" x 1 1/2", Slotted

1шт.

367881R91

KIT

BEARING SET, crankshaft (Standard) (Consists of Two Bearings, 357994R11 and One Bearing, 357998R11)

1шт.

372121R91

BEARING SET, crankshaft (.030" undersize) (Consists of Two Bearings, 357995R11 and One Bearing, 357999R11)

1шт.

366883R92

PACKAGE

SERVICE, connecting rod adapter and bushing (Composed of -

1шт.

368273R92

ADAPTER

AND BUSHING

4шт.

358620R91

RING SET, piston (Consists of twelve compression and four oil control Rings) (2-in-1-chrome) (Gasoline)

1шт.

For engines with 3-1/2" pistons.

1шт.

358621R91

RING SET, piston (Consists of twelve compression and four oil control Rings) (Distillate or Kerosene) (2-in-1-chrome)

1шт.

For engines with 3-1/2" pistons.

1шт.

363754R91

RING

SET, piston (Perfect Circle) (Consists of twelve compression Rings and four oil regulating Rings) (Gasoline)

1шт.

For engines with 3-9/16" pistons.

1шт.

363755R91

RING SET, piston (Consists of twelve compression Rings and four oil regulating Rings) (Distillate or Kerosene)

1шт.

For engines with 3-9/16" pistons.

1шт.
