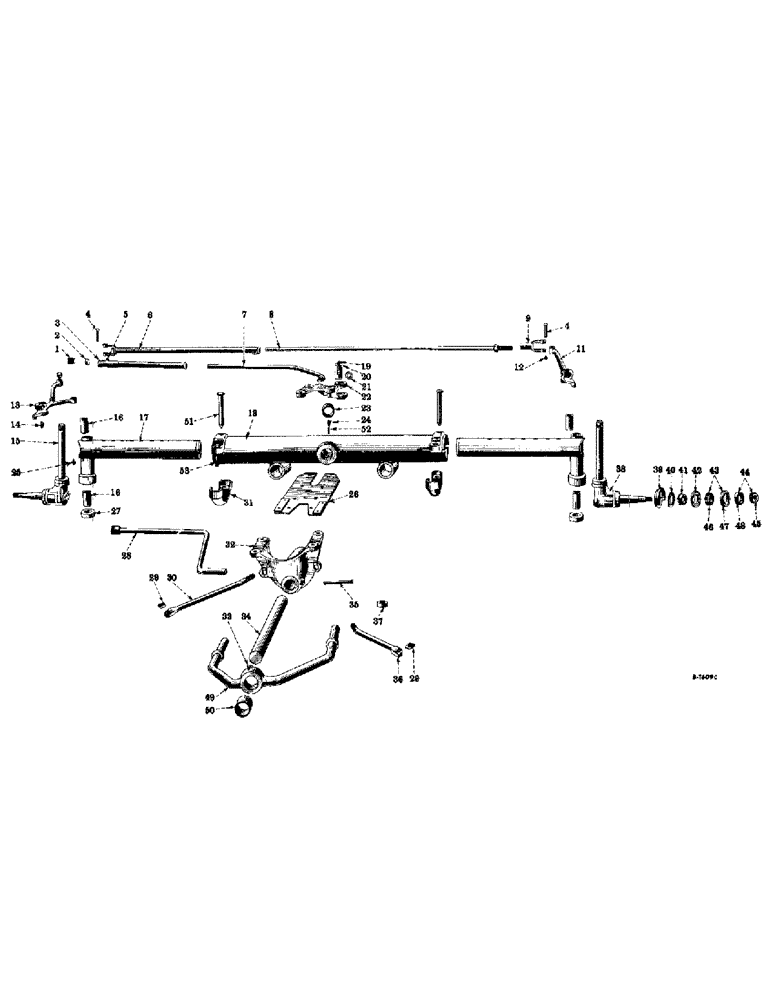

Запчасти Case IH SUPER-HV (216) - ATTACHMENTS, ADJUSTABLE WIDE FRONT AXLES WITH ADJUSTABLE WHEELBASE, SPECIAL, SUPER "H" Attachments

51701DE

ATTACHMENT, adjustable wide front axle, w/adjustabale wheel base

1шт.

1

40092D

SEAT AND NUT, ball drag link

1шт.

2

40091D

SEAT

ball drag link

1шт.

3

67953D

SLEEVE, drag link

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

67953DX

SLEEVE, drag link, assembly (composed of -

1шт.

114774

NUT

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW

1шт.

40091D

SEAT

1шт.

40092D

SEAT AND NUT

1шт.

67953D

SLEEVE

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

10565DA

PIN, steering connection fork

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Drag link sleeve, ball end) (optional with 109461)

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Drag link sleeve, ball end) (optional with 119512) 1/8"-27 x .66 lg

1шт.

6

67950D

SLEEVE, steering connection

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, cap, hex-hd., 1/2"-13NC x 2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

67956D

ROD, adjusting drag link

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

8

40098DA

ROD, adjusting, steering connection

1шт.

129-129

NUT,7/8"-14, G5

hex., 7/8-14NF

1шт.

9

67952D

FORK, steering connection adjusting rod.

1шт.

11

9036DC

ARM, steering knuckle, R.H.

1шт.

114820

NUT, hex., 5/8-11NC

1шт.

179934

SCREW, cap, hex., 5/8-11NC x 2-3/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8 " (steering knuckle arm) (optional with 109461)

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle arm) (optional with 119512) 1/8"-27 x .66 lg

1шт.

13

9035DBXA

ARM, steering knuckle, L.H., w/ball

1шт.

114820

NUT, hex., 5/8-11NC

1шт.

179934

SCREW, cap, hex-hd., 5/8-11NC x 2-3/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, steering knuckle arm (Woodruff #127, 1/4 x 2-1/8")

1шт.

15

51699DE

KNUCKLE, steering, L.H., assembly (composed of -

1шт.

51698DE

KNUCKLE

1шт.

48539D

OIL SEAL

1шт.

51697D

PIVOT

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER

1шт.

102652

SLOTTED NUT

NUT, slotted-hex., 7/8-14NF (front wheel outer bearing retainer

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

353838R1

WASHER

WASHER, (front wheel outer bearing retainer

1шт.

16

40090D

BUSHING

steering knuckle pivot

4шт.

17

350599R11

EXTENSION, front axle, w/two bushings, 40090D

1шт.

18

350552R11

AXLE, front, w/two bushings, 40084DA

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering gear arm pin) (optional with 119512) 1/8"-27 x .66 lg

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication straight, 1/8" (steering gear arm pin) optional with 109461)

1шт.

20

40088D

PIN

steering gear arm

1шт.

21

40101D

WASHER, drag link adjusting rod

1шт.

22

9684D

ARM, steering gear

1шт.

425-1110

NUT,5/8"-18, G5

3шт.

181485

LEVER

SCREW, cap, hex-hd., 5/8-18NF x 2-1/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

23

40084DA

BUSHING

front axle pivot pin

2шт.

24

12308R91

FITTING

lubrication angle, 5/16" (front axle pivot pin)

1шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle pivot) (optional with 1195112) 1/8"-27 x .66 lg

1шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (steering knuckle pivot)

1шт.

26

67946DAX

PLATE, front axle adapter

1шт.

Used only in short wheel base position.

1шт.

114774

NUT, hex., 1/2-13NC

4шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, cap, hex-hd.., 1/2-13NC x 2-1/4"

1шт.

179952

SCREW, hex-hd., 3/4-10NC x 2"

2шт.

179953

SCREW, cap, hex-hd., 3/4-10NC x 2-1/4"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

27

39862D

BEARING ASSY,34.67mm ID x 66.67mm OD x 19.46mm W

thrust, steering knuckle pivot (Timken 138)

1шт.

28

52916DBX

CRANK, starting (optional with 354700R93

1шт.

28

354700R93

CRANK, starting (optional with 52916DBX)

1шт.

29

51693D

BAR

WASHER, front frame channel bevel.

1шт.

30

51694DA

BRACE. adapter, front axle, L.H.

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

114822

DISC

NUT, hex., 7/8-9NC

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

31

350556R1

CLAMP

front axle

4шт.

32

8172D

ADAPTER, front axle

1шт.

114821

NUT, hex., 3/4-10NC

2шт.

181505

SCREW, cap, hex-hd., 3/4-16NF x 1-1/2"

1шт.

179954

SCREW, cap hex-hd., 3/4-10NC x 2-1/2

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

33

109350

FITTING, lubrication, 67.5 degree elbow, 1/8" (stay rod) (optional with 109460)

1шт.

33

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication 67.5 degree elbow, 1/8" (stay rod) (optional with109350)

1шт.

34

40085D

PIN, pivot, front axle

1шт.

35

Q3554

PIN, pivot, locking, front axle

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, Split (Cotter), 3/16" x 1 1/4"

1шт.

36

51695DA

BRACE, front axle adapter, R.H.

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

114822

DISC

NUT, hex., 7/8-9NC

2шт.

179891

SHAFT

SCREW, cap, hex-hd., 1/2-13NC x 2-1/2 "

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

37

67945D

SPACER, front axle adpater brace

2шт.

38

51700DE

KNUCKLE, steering, R.H., assembly (composed of -

1шт.

51698DE

KNUCKLE

1шт.

48539D

OIL SEAL

1шт.

51697D

PIVOT

1шт.

48541D

SHIELD

1шт.

50270D

SPACER

1шт.

50259D

WASHER

WASHER

1шт.

102652

SLOTTED NUT

NUT, slotted hex., 7/8-14NF (front wheel outer bearing retainer)

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

353838R1

WASHER

WASHER, (ront wheel outer bearing retainer)

1шт.

39

48541D

SHIELD

dust, front wheel

2шт.

40

50259D

WASHER

WASHER, felt, front wheel

2шт.

41

50270D

SPACER

front wheel bearing

2шт.

42

48539D

OIL SEAL, front wheel

2шт.

43

10873K

BEARING CUP

BEARING, front wheel inner (cone, 353523R92 and cup, 353531R1) (Tyson 14138-A-14274) optional with 353515R2 or 352382R91

1шт.

For service only, not part of attachment.

1шт.

43

353515R92

BEARING

front wheel inner (cone, 353523R92 and cup, 353531R1) (Tyson 14138-A-14274) optional with 10873K or 352382R91

1шт.

For service only, not part of attachment.

1шт.

43

352382R91

BEARING

front wheel inner (cone, 352389R91 and cup, 352396R1) (Bower 14138- A-14274) optional with 10873K0or 353515R92

1шт.

For service only, not part of attachment.

1шт.

44

13311DA

TAPERED BEARING

BEARING, front wheel outer (cone, 13321DA and cup, 13417D) (IH-1779 -1729)

1шт.

For service only, not part of attachment.

1шт.

45

13321DA

TAPERED BEARING,23.81mm ID x 19.91mm W

CONE, front wheel outer bearing (IH-1779)

1шт.

For service only, not part of attachment.

1шт.

46

10880K

BEARING

CONE, front wheel inner bearing (Timken 14138-A) optional with 353523R92 or 352389R91

1шт.

46

353523R92

CONE, front wheel inner bearing (Tyson 14138-A) optional with 10880K or 352389R91

1шт.

46

352389R91

BEARING

CONE, front wheel inner bearing (Bower 14138-DA) optional with10880K or 353523R92

1шт.

47

13822V

BEARING

CUP, front wheel inner bearing (Timken 14274) optional with 353531R1 or 352396R1

1шт.

For service only, not part of attachment.

1шт.

47

353531R1

BEARING

CUP, front wheel inner bearing (Tyson 14274) (optional with 13822V or 352396R1

1шт.

For service only, not part of attachment.

1шт.

47

352396R1

CUP

front wheel inner bearing (Bower BT-14274) optional with 13822V or 353531R1

1шт.

For service only, not part of attachment.

1шт.

48

13417D

BEARING, CUP,56.92mm OD x 16mm W

CUP, front wheel outer bearing (IH)

2шт.

For service only, not part of attachment.

1шт.

49

40082DX

ROD, stay, w/bushing, 40084DA

1шт.

109867

NUT, hex., 1-3/8-12NF

2шт.

118028

WASHER, lock, light, 1-3/8"

2шт.

50

40084DA

BUSHING

stay rod

1шт.

51

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

52

350555R1

NIPPLE, grease, pivot pin, front axle.

1шт.

53

350558R1

BOLT

front axle clamp

4шт.

103031

TROUGH

NUT, hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

354134R91

ATTACHMENT, steel front wheel (consists of two front wheels 6694DCXA) (see front wheels)

1шт.

120702

ELBOW,45 Degree, 3/8" NPT Street

CONNECTION, radiator drain (3/8", 45 degree street elbow) (Illustrated with radiator.)

1шт.

Used only in short wheel base position.

1шт.

109357

FITTING, lubrication, 90 degree elbow, 1/8" (starting crank ratchet) (alemite 1606)(Illustrated with upper bolster)

1шт.

Used only in short wheel base position.

1шт.

112579R1

PIPE, radiator drain, 3/8 x 6-1/2" long (Illustrated with radiator)

1шт.

Used only in short wheel base position.

1шт.

355019R92

WHEEL, front w/rim, assembly (see front wheels)

1шт.
