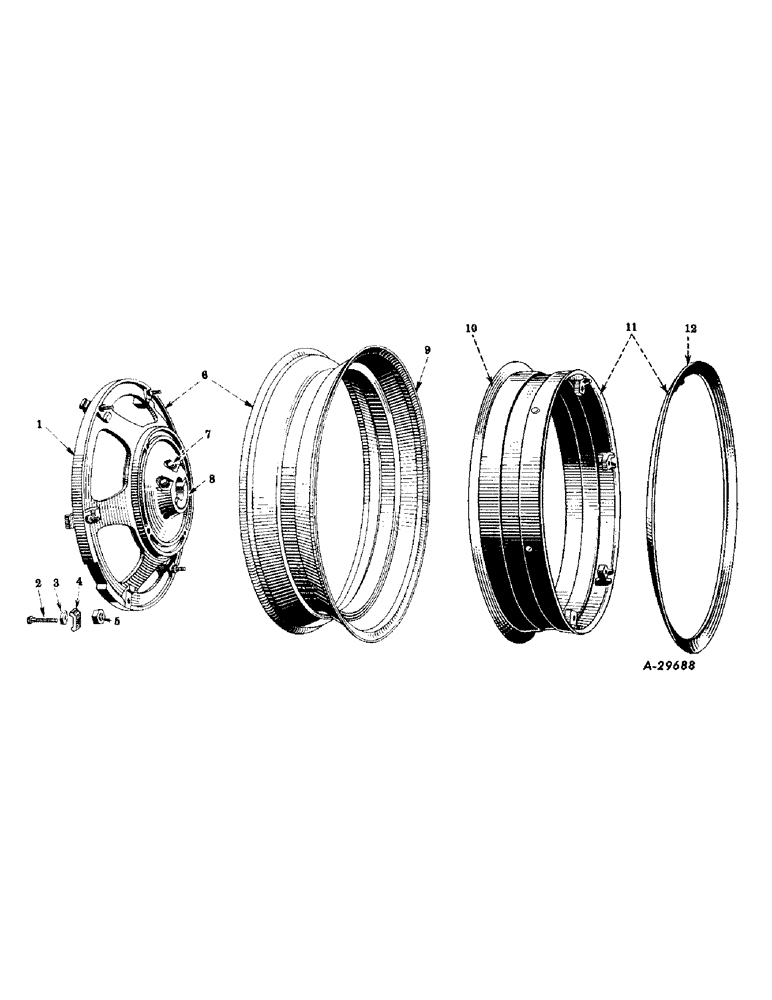

Запчасти Case IH SUPER-H (144) - CHASSIS, REAR WHEELS, PNEUMATIC TIRES, SUPER "H" (12) - CHASSIS

1

6194DD

WHEEL, rear (Used with all rims)

2шт.

179961

SCREW, cap, hex-hd., 3/4-10NC x 4-1/4"

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

Q3478

WASHER

plain, 25/32" I.D. x 1-1/4" O.D. x No. 14 ga.

8шт.

2

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

rear wheel rim clamp (Used with Clamp, 48984D)

12шт.

3

351833R1

NUT

jam, rear wheel rim mounting (Not used with attached clamp rim

12шт.

4

48984D

CLAMP

rear wheel rim (Not used with attached clamp rim

24шт.

5

351832R1

NUT

rear wheel rim mounting

12шт.

6

355025R91

WHEEL, rear, w/Rim, assembly (Rim size DW10-38) (Tire sizes 10-38, 11-38 & 12-38) (Composed of -

2шт.

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

6шт.

6192DC

CLAMP

1шт.

48984D

CLAMP

12шт.

351832R1

NUT

6шт.

351833R1

NUT

6шт.

55563D

RIM

1шт.

179961

SCREW

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q3478

WASHER

4шт.

6194DD

WHEEL

1шт.

6

355027R91

WHEEL, rear, w/Rim, assembly (Rim size DW11-38) (Tire size 12-38) (Composed of -

2шт.

48985DA

BOLT,Wheel, 5/8" - 11 x 4 1/4"

6шт.

6192DC

CLAMP

1шт.

48984D

CLAMP

12шт.

351832R1

NUT

6шт.

351833R1

NUT

6шт.

55564D

RIM

1шт.

179961

SCREW

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q3478

WASHER

4шт.

6194DD

WHEEL

1шт.

7

179961

Follows Reference No. 1

1шт.

8

6192DC

CLAMP

rear wheel hub

2шт.

9

55563D

RIM

rear wheel (1 piece) (Rim size DW10-38) (Tire sizes 10 x 38 & 11 x 38)

2шт.

9

55564D

RIM, rear wheel (1 piece) (Rim size DW11 x 38) (Tire size 12 x 38)

2шт.

10

56483D

BASE, rear wheel rim (Used with Rim, 56484D)

2шт.

10

57201D

BASE, rear wheel rim (Used with Rim, 57202D)

2шт.

11

56484D

RIM, rear wheel, w/Clamp (2 piece) (Composed of Base, 56483D and Ring, 42330D) (Optional with 57202D) (Rim size 8.00T x 40) (Tire size 9-40)

2шт.

11

57202D

RIM, rear wheel, w/Clamp (3 piece) (Composed of Base, 57201D and rim side and locking Ring, 39174D) (Optional with 56484D) (Rim size 8.00T x 40) (Tire size 9-40)

2шт.

350598R1

BOLT, mounting, rear wheel rim

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

11

355030R91

WHEEL, rear, w/Rim, assembly (Rim size 8.00T x 40) (Tire size 9-40) (Composed of -

2шт.

350598R1

BOLT

6шт.

6192DC

CLAMP

1шт.

351832R1

NUT

6шт.

56484D

RIM

1шт.

179961

SCREW

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

Q3478

WASHER

4шт.

6194DD

WHEEL

1шт.

12

42330D

RING, rear wheel rim side (Used with Rim, 56584D)

2шт.

12

39174D

RING, rear wheel rim side, w/locking Ring (Used with Rim, 57202D)

2шт.
