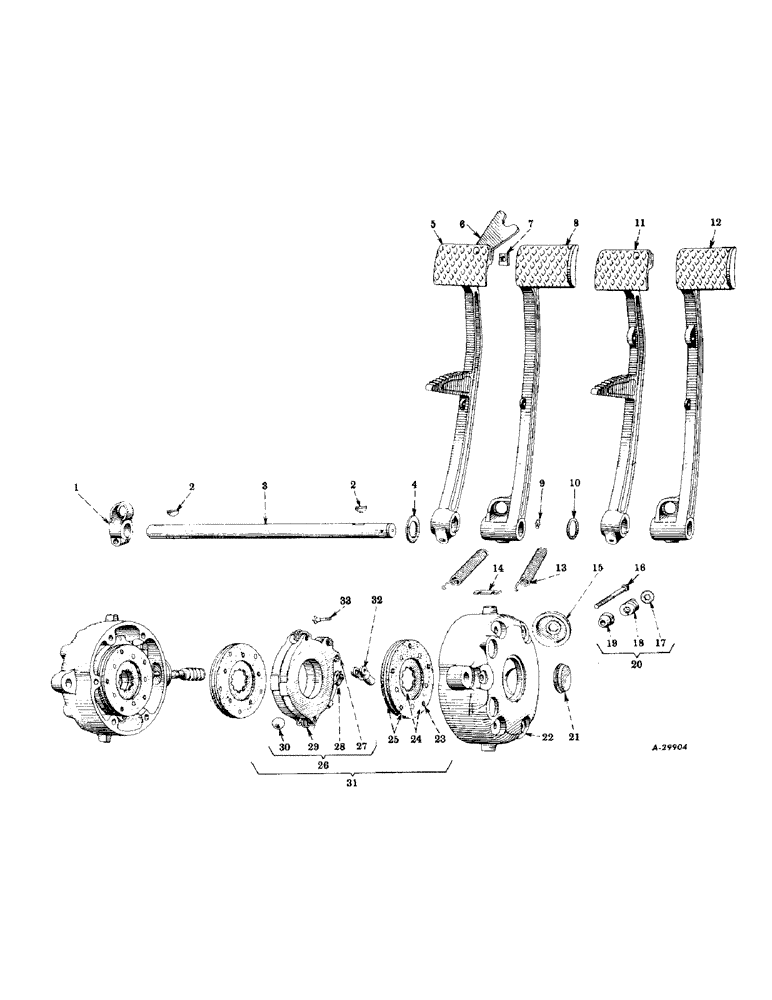

Запчасти Case IH SUPER-H (141) - CHASSIS, BRAKES AND CONNECTIONS (12) - CHASSIS

1

358053R1

LEVER, brake shaft

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, Woodruff, ni-stl., No. 13, 3/16 x 1"

2шт.

3

358051R1

SHAFT, brake pedal

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

4

48983D

THRUST WASHER

thrust, brake pedal shaft

2шт.

5

6950DAX

PEDAL, brake, L.H., assembly (Composed of -

1шт.

6950DA

PEDAL

1шт.

43751DB

LATCH, PEDALS

PLATE

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1шт.

51293D

SPRING

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

6

43751DB

LATCH, PEDALS

PLATE, lock, brake pedal

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

rd-hd., 1/4 x 1-1/4"

1шт.

7

51293D

SPRING

tension, brake pedal lock plate

1шт.

8

358052R11

PEDAL, brake, wFitting, 66584D, R.H.

1шт.

9

66584D

FITTING

lubrication, drive type, 3/16"

1шт.

10

40435D

WASHER, brake pedal shaft

1шт.

11

350282R92

PEDAL, brake, L.H., assembly (For tractors equipped with forward and reverse attachments) (Composed of -

1шт.

350284R1

LUG

1шт.

6950DA

PEDAL

1шт.

43751DB

LATCH, PEDALS

PLATE

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1шт.

51293D

SPRING

1шт.

114773

NUT, hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

12

358413R91

PEDAL, brake, w/Fitting, 66584D, R.H. (For tractors equipped with forward and reverse attachments)

1шт.

13

357164R1

SPRING

brake pedal return

2шт.

14

357045R1

ANCHOR

brake pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

355976R1

BOOT

enclosure

2шт.

16

358050R1

BOLT,Hex, 3/8" - 24 x 4 1/4"

ROD, brake operating

2шт.

114494

NUT,Jam, 3/8"-24, G5

6шт.

17

575807R1

WASHER

steel, plain, 3/8"

2шт.

18

355978R1

SPRING

brake operating rod

2шт.

19

358049R1

ROD

BALL, brake operating rod

2шт.

20

358048R91

KIT

ROD, brake operating, assembly (Composed of -

2шт.

358049R1

ROD

BALL

1шт.

114494

NUT,Jam, 3/8"-24, G5

3шт.

358050R1

BOLT,Hex, 3/8" - 24 x 4 1/4"

ROD

1шт.

355978R1

SPRING

1шт.

575807R1

WASHER

1шт.

21

358047R1

CAP

PLUG, brake housing cup

2шт.

22

358046R1

HOUSING, brake, w/Plug, 358047R1

2шт.

187151

SCREW, cap, hex-hd., 7/16-14NC x 3-3/8"

8шт.

12406R1

SCREW, cap, hex-hd., 7/16-14NC x 2-7/8"

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

354629R1

RIVET

tubular, steel, 3/16 x 1/2" (Auto Specialties BP-487A)

48шт.

24

358195R91

BRAKE DISC

DISC, middle, w/Linings (Auto Specialties MA-56752)

4шт.

25

356528R91

LINING

PACKAGE, service, brake lining (Consists of four Linings, w/twenty-four Rivets, 354629R1)

2шт.

26

356854R91

DISC, actuating, assembly (Auto-Specialties AA-560) (Composed of -

2шт.

16028R1

BALL

3шт.

DISC

2шт.

354623R1

LINK

1шт.

354624R1

SUPPORT

LINK

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

354627R1

SPRING

2шт.

354625R1

STUD

)

2шт.

27

354624R1

SUPPORT

LINK, actuating (Plain) (Auto Specialties BP-568)

2шт.

28

354623R1

LINK

actuating (Yoke) (Auto Specialties BP-569)

2шт.

29

354627R1

SPRING

extension (Auto Specialties BP-4504)

4шт.

30

16028R1

BALL

7/8" dia.

6шт.

31

358044R91

BRAKE, double disc, w/two Disc, assembly, 358195R91 and Disc, assembly, 356854R91 (Auto Specialties BMA-5617)

2шт.

32

355975R1

CLEVIS COUPLING

YOKE, brake operating rod

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, rod end, 3/8 x 1-3/32"

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

33

354625R1

STUD

actuating disc (Auto Specialties BP-53051)

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.
