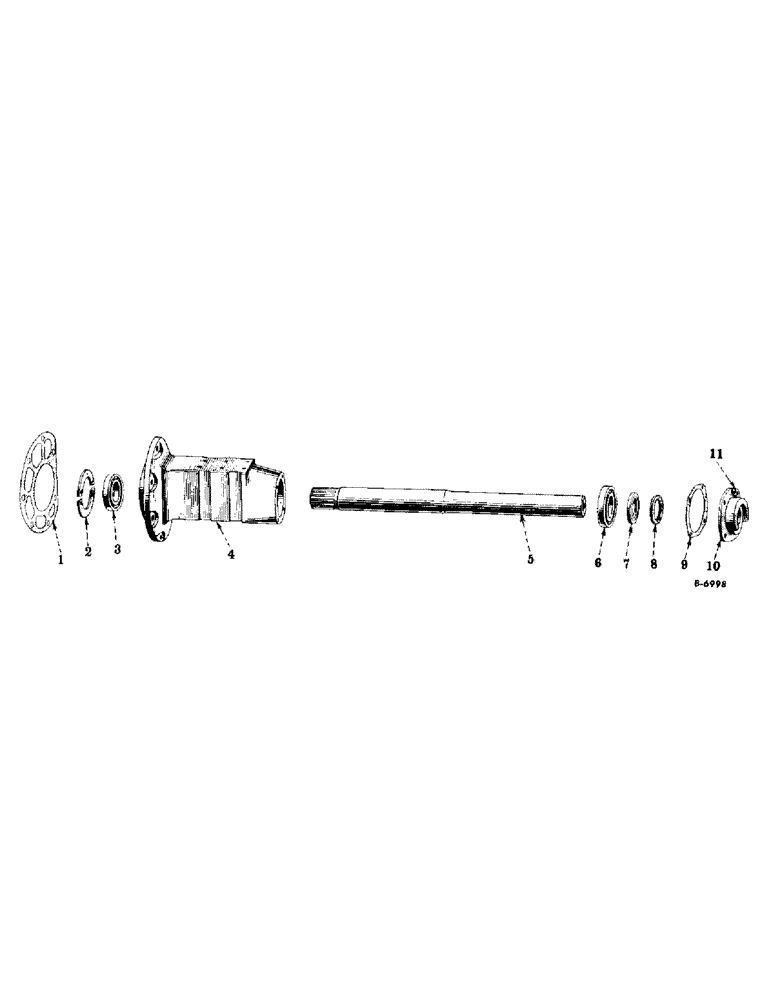

Запчасти Case IH SUPER-H (136) - CHASSIS, REAR AXLE, SUPER "H" (12) - CHASSIS

1

49789D

GASKET

rear axle carrier

2шт.

2

353158R1

RETAINER, rear axle ball bearing, inner

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1"

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

ST227B

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, ball, rear axle, inner (IH-L-260)

2шт.

4

6855DA

CARRIER, rear axle, L.H.

1шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

SCREW, cap, hex-hd., 5/8-11NC x 1-3/4"

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

4

6856DA

CARRIER, rear axle, R.H.

1шт.

179929

BOLT,Hex, 5/18" - 11 x 1 3/4"

SCREW, cap, hex-hd., 5/8-11NC x 1-3/4"

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

5

358102R1

AXLE, rear

2шт.

5

52145DC

AXLE, rear (For 100" maximum tread) (Special)

2шт.

6

ST328

BEARING, ball, rear axle, outer (IH-PC-265)

2шт.

7

43722D

SEAL

OIL SEAL, rear axle

2шт.

8

43720D

SEALING WASHER,62.71mm ID x 84.93mm OD x 7.94mm Thk

WASHER, felt, rear axle

2шт.

9

48463D

GASKET

rear axle carrier cap

2шт.

10

6669DBX

CAP, rear axle carrier, w/Oil Seal, 43722D and Washer, 43720D

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461) (Rear axle outer bearing)

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (Rear axle outer bearing) 1/8"-27 x .66 lg

2шт.

52146DB

ATTACHMENT, 100" wide tread rear axle (Consisting of two rear Axles, 52145DC)

1шт.

353322R92

ATTACHMENT, rear axle extension (Tractors equipped with pneumatic tire rear wheels) (Composed of -

1шт.

353326R1

CLAMP

2шт.

353325R2

EXTENSION

1шт.

129-129

NUT,7/8"-14, G5

10шт.

181533

SCREW

10шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

10шт.

353325R2

EXTENSION, rear axle

1шт.

353326R1

CLAMP, rear axle extension

2шт.

129-129

NUT,7/8"-14, G5

hex., 7/8-14NF

10шт.

181533

SCREW, cap, hex-hd., 7/8-14NF x 4-3/4"

10шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

10шт.
