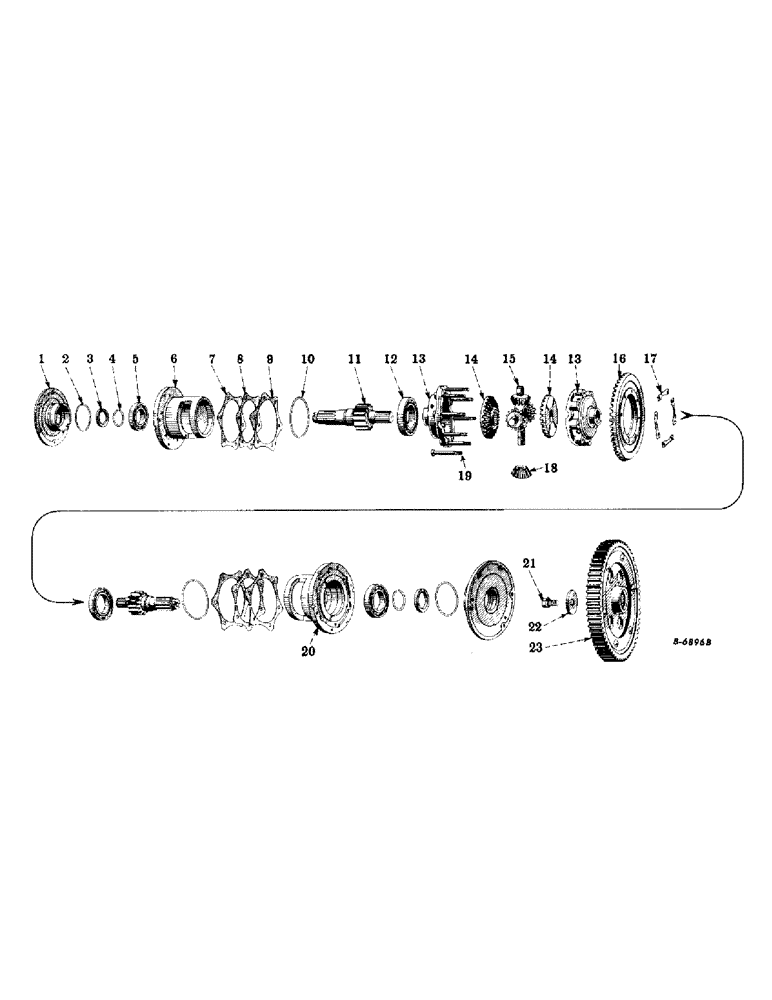

Запчасти Case IH SUPER-H (134) - CHASSIS, REAR AXLE DIFFERENTIAL (12) - CHASSIS

1

358100R11

RETAINER, bull pinion shaft bearing, w/Oil Seal, 20290D

2шт.

2

358101R1

O-RING,0.551" ID x 0.07" Width

RING, seal, bull pinion shaft bearing retainer

2шт.

3

20290D

OIL SEAL

OIL SEAL, bull pinion shaft (Optional with 357770R91 or 357774R91)

2шт.

3

357770R91

SEAL

OIL SEAL, bull pinion shaft (Optional with 20290D or 357774R91)

2шт.

3

357774R91

SEAL

OIL SEAL, bull pinion shaft (Optional with 20290D or 357770R91)

2шт.

4

358059R1

SNAP RING

RING, snap, bull pinion and brake shaft

2шт.

5

ST279

BALL BEARING

BEARING, ball, bull pinion and brake shaft (IH-L-255)

2шт.

6

358057R11

CAGE, bull pinion shaft bearing, w/Ring, 4222D, L.H.

1шт.

357034R1

BOLT

SCREW, cap, bull pinion shaft bearing cage

6шт.

7

358098R1

SHIM

bull pinion shaft bearing cage, light

1шт.

8

358061R1

SHIM

bull pinion shaft bearing cage, medium

2шт.

9

358060R1

SHIM

bull pinion shaft bearing cage, heavy

2шт.

10

4222D

SEAL

RING, seal, bull pinion shaft bearing cage

2шт.

11

358056R2

PINION, bull, and brake shaft

2шт.

12

ST218

BEARING

ball, differential (IH-L-265)

2шт.

13

358054R11

CASE, differential (2 halves) L.H. and R.H.

1шт.

14

48466DA

GEAR, bevel, differential (24 teeth)

2шт.

15

20731DA

SPIDER, differential

1шт.

16

48470D

GEAR, bevel drive (49 teeth)

1шт.

17

43699D

STRIP

PLATE, lock, differential case bolt

4шт.

18

48469DA

PINION, bevel, differential (13 teeth)

4шт.

19

48471D

BOLT (SPREADER),7/16" - 20 x 4"

BOLT, differential case

8шт.

103027

NUT, hex., light, 7/16-20NF

8шт.

20

358058R11

CAGE, bull pinion shaft bearing, w/Ring, 4222D, R.H.

1шт.

357034R1

BOLT

SCREW, cap, bull pinion shaft bearing cage

6шт.

21

181507

SCREW, cap, hex-hd., 3/4-16NF x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

22

49673DA

WASHER, bull gear retainer

2шт.

23

357463R11

GEAR, bull, w/six Rivets, 104133 (66 teeth) (Optional with 357462R91)

2шт.

23

357462R91

GEAR, bull, w/six Rivets, 104133 (66 teeth) (Optional with 357463R91)

2шт.

104133

RIVET, stl., rd-hd., 1/2 x 1-3/4"

16шт.
