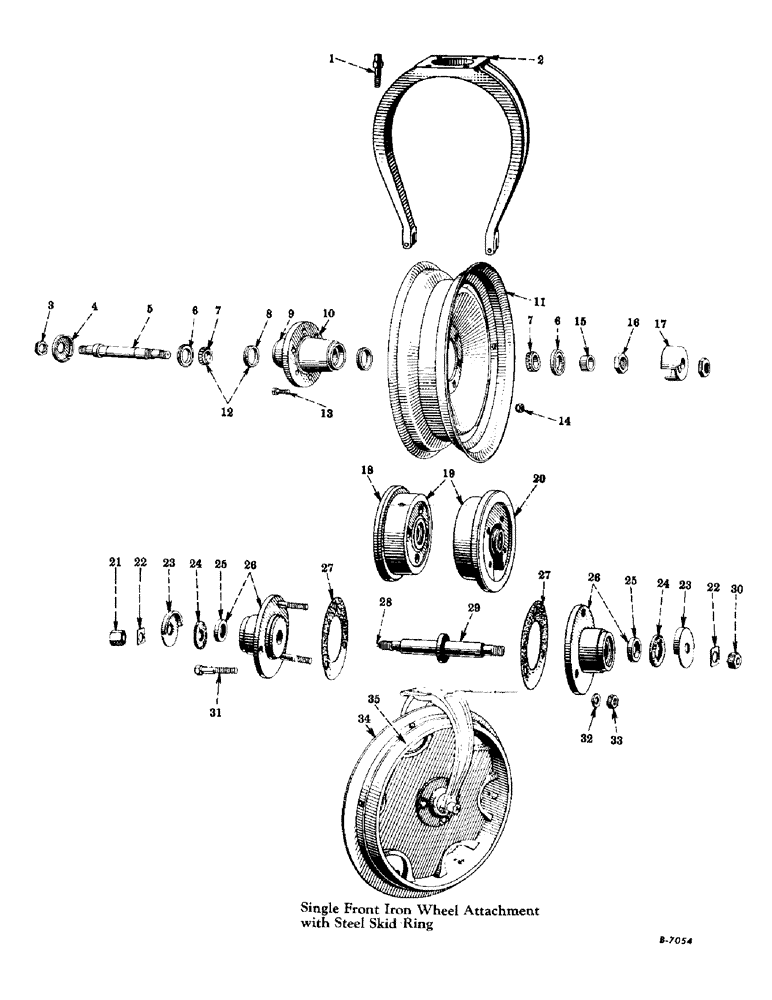

Запчасти Case IH SUPER-H (130) - CHASSIS, SINGLE FRONT WHEEL, SUPER "H" (12) - CHASSIS

49111DB

WHEEL, single front (pneumatic tire attachment) for 6.50 x 16 tire

1шт.

49113DA

WHEEL, single front (pneumatic tire attachment) for 7.50 x 10 tire

1шт.

67878D

ATTACHMENT, single front (iron) wheel (to replace 6.50 x 16 single front wheel pneumatic tire equipment)

1шт.

67876D

ATTACHMENT, single front (iron) wheel (for regular use and to replae dual front steel wheels)

1шт.

67877D

ATTACHMENT, single front (iron)wheel (to replace 7.50 x 10 single front wheel pneumatic tire equipment)

1шт.

360701R91

ATTACHMENT, single front wheel (pneumatic tire attachment (for 7.50 x 16 tire)

1шт.

1

49109DA

BOLT, steering stop

1шт.

352535R1

NUT, steering stop bolt, 5/8-18NF

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

6195DB

FORK, front bolster (for 6.50 x 16 or 7.50 x 10 tire) also single iron front wheel

1шт.

13376R1

BOLT, machine, sq-hd., 3/8-16NC x 2-1/2"

2шт.

280136

NUT,3/8"-16, G8

2шт.

352535R1

NUT, hex., 5/8-NF

3шт.

181485

LEVER

SCREW, cap, hex-hd., 5/8-18NF x 2-1/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

451034

PTO

NUT, lock, 7/8-14NF (optional with 355134R1)

2шт.

3

355134R1

NUT, front axle (optional with 451034)

2шт.

103347

WASHER

plain, 15/16" I.D. x 1-3/4" O.D.x #10ga

2шт.

4

355127R11

SHIELD, front wheel hub, short

1шт.

5

355133R1

AXLE, front

1шт.

6

355131R91

SEAL

OIL SEAL, front axle

2шт.

7

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, front wheel bearing (Timken 15123)

2шт.

8

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, front wheel bearing (Timken 15245)

2шт.

9

109353

FITTING, lubrication, 30degree elbow, 1/8" (optional with 109459)

1шт.

9

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 30 degree elbow, 1/8" (optional with 109353)

1шт.

10

355129R11

HUB, front wheel, w/two cups, 641954R1

1шт.

351793R1

WHEEL NUT

NUT, mounting front wheel

6шт.

181729

BOLT,Hex, 9/16" - 18 x 1 3/4"

SCREW, cap, hex-hd., 9/16-18NF x 1-3/4"

6шт.

11

355130R91

WHEEL, front (for pneumatic tire 6.50 x 16)

1шт.

11

354195R91

WHEEL

front (for pneumatic tire 7.50 x 16)

1шт.

12

642956R91

BEARING

front wheel (cone, Timken 15123, w/cup), (Timken #15245)

2шт.

13

181729

BOLT,Hex, 9/16" - 18 x 1 3/4"

Follows Ref. #10

1шт.

14

351793R1

WHEEL NUT

Follows Ref. #10

1шт.

15

355132R1

SPACER, front wheel bearing

1шт.

16

355135R1

NUT, adjusting, front wheel bearing (optional with 451094)

1шт.

16

451094

NUT, lock, jam, 1-1/8-12NF (optional with 355135R1)

1шт.

17

355128R11

SHIELD, front wheel hub, long

1шт.

18

5630DX

WHEEL, front male half, w/oil seal, 42183D (for pneumatic tire 7.50 x 10)

1шт.

220080

GASKET

NUT, hex., 5/8-11NC x 7"

1шт.

16154R1

SCREW, cap, hex-hd., 5/8"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

40833D

WHEEL, front (for pneumatic tire 7.50 x 10)

1шт.

220080

GASKET

NUT

4шт.

16154R1

SCREW

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5630DX

WHEEL

1шт.

5631DX

WHEEL

1шт.

20

5631DX

WHEEL, front female half, w/oil seal, 42873D (for pneumatic tires7.50 x 10)

1шт.

21

23742D

NUT, front axle

1шт.

22

23743D

LOCK WASHER

lock, front axle nut

1шт.

23

23762DX

SHIELD

front wheel hub, w/lock

1шт.

24

23760D

SEALING WASHER

WASHER, felt, front wheel

1шт.

25

42183D

OIL SEAL, front wheel

1шт.

26

8296DAX

HUB, front wheel, w/oil seal, 42183D

1шт.

114820

NUT, hex., 5/8-11NC

1шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

SCREW, cap, hex-hd., 5/8-11NC x 3-1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

27

52874D

GASKET, front wheel hub (for hub, 8296DAX)

1шт.

28

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 3/4" (front axle) (optional with 109461)

1шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Front axle) (Optional with 119512) 1/8"-27 x .66 lg

1шт.

29

23740D

AXLE, front

1шт.

30

129-129

NUT,7/8"-14, G5

hex., 7/8 -14NF

1шт.

31

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

Follows Ref. #26

1шт.

32

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Follows Ref #26 5/8"

1шт.

33

114820

Follows Ref. #26

1шт.

34

67881D

RING, skid, front wheel

1шт.

13338R1

BOLT, machine, sq-hd., 1/2-13NC x 2"

1шт.

114774

NUT, hex., 1/2-13NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

9681D

WHEEL, front (iron)

1шт.
