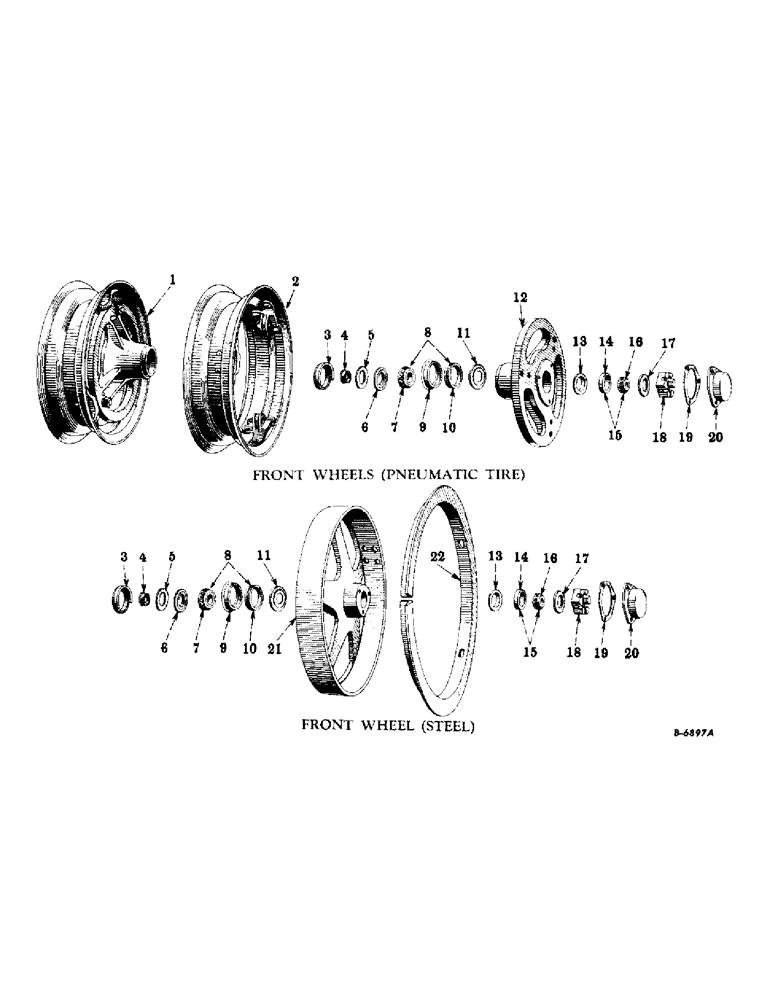

Запчасти Case IH SUPER-H (125) - CHASSIS, FRONT WHEELS, SUPER "H" (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
355019R92
WHEEL, front, w/Rim, assembly (Composed of -
2шт.
8274DBX
WHEEL
1шт.
48547D
GASKET
1шт.
352777R1
NUT
3шт.
354246R91
RIM
1шт.
181783
SCREW
3шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
3шт.
2
354246R91
RIM
front wheel (Rim size 4.25 KA - 16 DC) (Tire size 5.50 or 6.00 x 16)
2шт.
352777R1
NUT
mounting, front wheel rim
6шт.
181783
SCREW, cap, hex-hd., cd-pltd., 5/8-18NF x 2-3/4"
6шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
6шт.
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
plain, 21/32" I.D. x 1-5/16" O.D. x No. 13 ga.
6шт.
3
48541D
SHIELD
dust, front wheel
2шт.
4
50270D
SPACER
front wheel bearing
2шт.
5
50259D
WASHER
WASHER, felt, front wheel (For Adjustable Tread Axle Attachment)
2шт.
6
48539D
OIL SEAL, front wheel
2шт.
7
10880K
BEARING
CONE, front wheel inner bearing (Timken 14138A) (Optional with 353523R92 and 352389R91)
2шт.
7
353523R92
CONE, front wheel inner bearing (Tyson 14138A) (Optional with 10880K and 352389R91)
2шт.
7
352389R91
BEARING
CONE, front wheel inner bearing (Bower 14138A) (Optional with 10880K and 353523R92)
2шт.
8
10873K
BEARING CUP
BEARING, inner, front wheel (Cup, 13822V, w/Cone, 10880K) (Timken 14138A-14274) (Optional with 353515R92 and 352382R91)
2шт.
8
353515R92
BEARING
inner, front wheel (Cup, 353531R1, w/Cone, 353523R92) (Tyson 14138A-14274) (Optional with 10873K and 352382R91)
2шт.
8
352382R91
BEARING
inner, front wheel (Cup, 352396R1, w/Cone, 352389R91) (Bower 14138A-14274) (Optional with 10873K and 353515R92)
2шт.
9
48548D
WASHER
felt washer, front wheel
2шт.
10
13822V
BEARING
CUP, front wheel inner bearing (Timken 14274) (Optional with 352396R1 and 353531R1)
2шт.
10
352396R1
CUP
front wheel inner bearing (Bower BT-14274) (Optional with 13822V and 353531R1)
2шт.
10
353531R1
BEARING
CUP, front wheel inner bearing (Tyson 14274) (Optional with 13822V and 352396R1)
2шт.
11
60288DA
BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"
grease, front wheel bearing, inner
2шт.
12
8274DBX
WHEEL, front, assembly (Composed of -
2шт.
13417D
BEARING, CUP,56.92mm OD x 16mm W
CUP
1шт.
13822V
BEARING
CUP
1шт.
8274DB
WHEEL
1шт.
48548D
WASHER
1шт.
60288DA
BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"
1шт.
60289D
WASHER
RETAINER)
1шт.
13
60289D
WASHER
RETAINER, grease, front wheel bearing, outer
2шт.
14
13417D
BEARING, CUP,56.92mm OD x 16mm W
CUP, front wheel outer bearing (IH-1729)
2шт.
15
13311DA
TAPERED BEARING
BEARING, outer, front wheel (Cup, 13417D, w/Cone, 13321DA) (IH-1729-1779)
2шт.
16
13321DA
TAPERED BEARING,23.81mm ID x 19.91mm W
CONE, front wheel outer bearing (IH-1779)
2шт.
17
353838R1
WASHER
WASHER, front wheel outer bearing retainer
2шт.
18
102652
SLOTTED NUT
NUT, slotted-hex., 7/8-14NF
2шт.
108643
COTTER PIN,5/32" x 1 3/8"
Pin, Split (Cotter), 5/32" x 1 3/8"
2шт.
19
48547D
GASKET
front wheel hub cap
2шт.
20
48546DA
CAP, front wheel hub
2шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
6шт.
21
6694DCXA
WHEEL, front, w/o skid Ring, assembly (Composed of -
2шт.
13417D
BEARING, CUP,56.92mm OD x 16mm W
CUP
1шт.
352396R1
CUP
1шт.
48548D
WASHER
1шт.
60288DA
BEARING CAP,1.4375" ID x 2.7125" OD x 0.40625"
1шт.
60289D
WASHER
RETAINER
1шт.
6694DC
WHEEL
1шт.
21
6694DCYA
WHEEL, front, w/skid Ring, assembly (Composed of -
2шт.
13293R1
BOLT
6шт.
114774
NUT
6шт.
48565DA
RING
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
6694DCXA
WHEEL)
1шт.
21
354134R91
ATTACHMENT, front wheel (Consists of two Wheels, 6694DCXA)
1шт.
22
48565DA
RING, skid, front wheel, 2" high (Standard)
2шт.
13293R1
BOLT
machine, sq-hd., 1/2-13NC x 1-1/2"
12шт.
114774
NUT, hex., 1/2-13NC
12шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
12шт.
22
354087R92
ATTACHMENT, front wheel skid ring (Standard) (Composed of -
1шт.
13293R1
BOLT
12шт.
114774
NUT
12шт.
48565DA
RING
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
12шт.
22
53014DA
RING, skid, front wheel, 2-1/2" high (Special) (Optional with 67893DA)
2шт.
22
67893DA
RING, skid, front wheel, 2-1/2" high (Special) (Optional with 53014DA)
2шт.
13293R1
BOLT
machine, sq-hd., 1/2-13NC x 1-1/2"
12шт.
114774
NUT, hex., 1/2-13NC
12шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
12шт.
22
53015D
ATTACHMENT, front wheel skid ring (Special) (Composed of -
1шт.
13293R1
BOLT
12шт.
114774
NUT
12шт.
53014DA
RING
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
12шт.
361294R93
BEARING
1шт.
each of the following parts are available in kit, 13321DA cone, ST2049 cone, 13417D cup, ST974 cup, 48547DA gasket, 48539DA seal, 48548D retainer
1шт.
