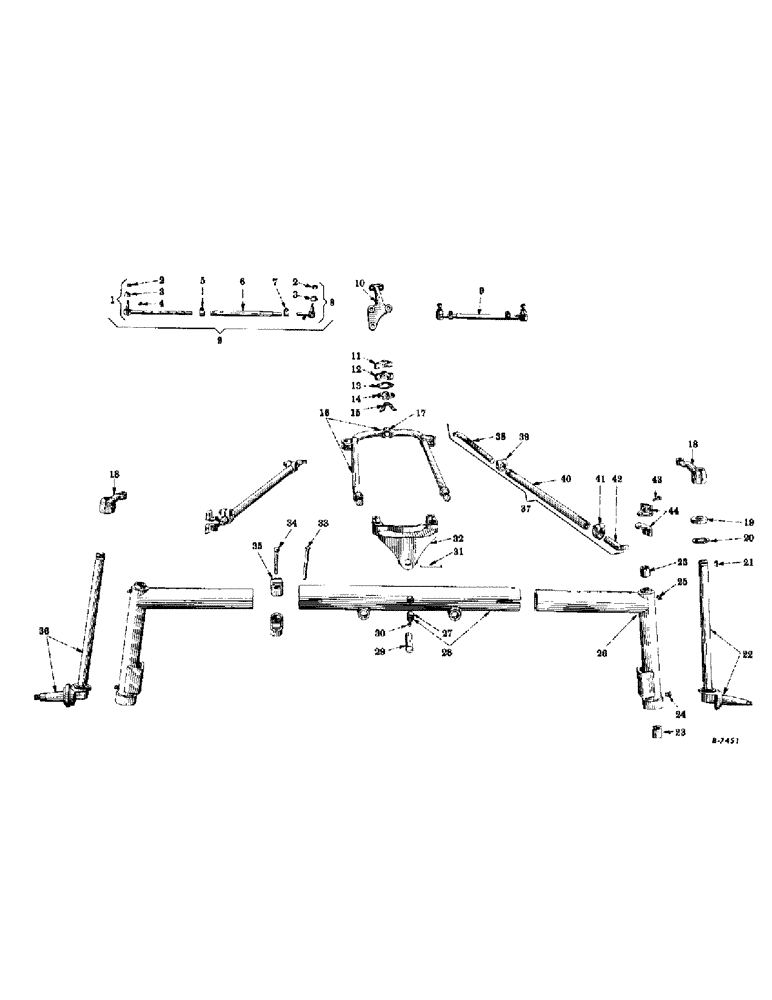

Запчасти Case IH SUPER-H (120) - CHASSIS, ADJUSTABLE FRONT AXLE, LOWER BOLSTER, STAY ROD AND STEERING CONNECTIONS (12) - CHASSIS

1

358983R91

TIE-ROD

TIE ROD, L.H., assembly (Thompson Products X-195-VN-11) (Composed of-

2шт.

358900R1

SEAL

COVER

1шт.

NSS

NOT SOLD SEPARAT

END

1шт.

358901R1

SLOTTED NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

1

359984R91

ROD

TIE ROD, L.H., assembly (Columbus Auto Parts H-X-2770) (Composed of-

2шт.

359982R1

COVER

1шт.

NSS

NOT SOLD SEPARAT

END

1шт.

359983R1

NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1-1/4"

1шт.

2

358901R1

SLOTTED NUT

tie rod end (Thompson Products 10-MN-38)

4шт.

2

359983R1

NUT

tie rod end (Columbus Auto Parts S-X-2379)

4шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1-1/4", Tie rod end

4шт.

3

358900R1

SEAL

COVER, dust, tie rod end (Thompson Products 14-DC-58)

4шт.

3

359982R1

COVER

dust, tie rod end (Columbus Auto Parts S-X-2766)

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Tie rod) (Optional with 119512) 1/8"-27 x .66 lg

4шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Tie rod) (Optional with 109461)

4шт.

5

358982R1

CLAMP, tie rod (Adjustable end) (Thompson Products X-232-AD-1)

2шт.

5

359986R1

CLAMP

tie rod (Adjustable end) (Columbus Auto Parts S-X-2768)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

6

358980R1

TUBE, tie rod (Thompson Products X-232-VN-1)

2шт.

6

359980R1

TUBE

tie rod (Columbus Auto Parts D-X-2774)

2шт.

7

358981R1

CLAMP, tie rod (Threaded end) (Thompson Products X-232-AD)

2шт.

7

359985R1

CLAMP

tie rod (Threaded end) (Columbus Auto Parts S-X-2767)

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2"

2шт.

8

360678R91

END

tie rod, assembly (R.H. thd.) (Thompson Products X-195-VN-13) (Composed of -

2шт.

358900R1

SEAL

COVER

1шт.

NSS

NOT SOLD SEPARAT

END

1шт.

358901R1

SLOTTED NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

8

359981R91

END

tie rod, assembly (R.H. thd.) (Columbus Auto Parts D-X-2759) (Composed of -

2шт.

359982R1

COVER

1шт.

NSS

NOT SOLD SEPARAT

END

1шт.

359983R1

NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

358979R91

TIE ROD, assembly (Thompson Products X-195-VN) (Optional with 359569R91) (Composed of -

2шт.

358981R1

CLAMP

1шт.

358982R1

CLAMP

1шт.

360678R91

END

1шт.

25-118

NUT,1/2"-20, G5

2шт.

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW

2шт.

358983R91

TIE-ROD

TIE ROD

1шт.

358980R1

TUBE

1шт.

9

359569R91

TIE ROD, assembly (Columbus Auto Parts H-X-2770) (Optional with 358979R91) (Composed of -

2шт.

359985R1

CLAMP

1шт.

359986R1

CLAMP

1шт.

359981R91

END

1шт.

25-118

NUT,1/2"-20, G5

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW

2шт.

359984R91

ROD

TIE ROD

1шт.

359980R1

TUBE

1шт.

10

360365R1

ARM, steering gear

1шт.

425-1110

NUT,5/8"-18, G5

3шт.

181485

LEVER

SCREW, cap, hex-hd., 5/8-11NF x 2-1/4"

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

11

360293R1

SPACER, stay rod ball socket

1шт.

12

9020D

SOCKET

ball, stay rod

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3-1/2"

1шт.

13

60762D

SHIM

ball socket, stay rod

4шт.

14

60763DB

CYLINDER END CAP

CAP, ball socket, stay rod

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3-1/2"

2шт.

15

60566D

PLATE

lock, stay rod ball socket and cap

1шт.

16

360294R11

ROD, stay, w/Ball, 10546D, and Brackets

1шт.

427392

NUT, jam, hex., 1-3/8-12NF

2шт.

118028

WASHER, lock, light, 1-3/8"

2шт.

17

10546D

BALL

stay rod

1шт.

18

358971R1

ARM, steering knuckle

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

thrust, steering knuckle pivot

2шт.

20

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

21

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, No. 127, 1/4 x 2-1/8" (Steering knuckle arm)

2шт.

22

358968R91

KNUCKLE, steering, R.H., assembly (Composed of -

1шт.

358960R1

KNUCKLE (NSS)

1шт.

48704D

SEAL

OIL SEAL

1шт.

358966R1

PIN (NSS)

1шт.

48701D

SHIELD

1шт.

51901D

SPACER

1шт.

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

)

1шт.

23

358958R1

BUSHING

steering knuckle pivot pin

4шт.

24

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (Steering knuckle pivot pin, lower) (Optional with 109354)

2шт.

24

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 degree elbow, 1/8" (Steering knuckle pivot pin, lower) (Optional with 109462)

2шт.

25

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle pivot pin, upper) (Optional with 119512) 1/8"-27 x .66 lg

2шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Steering knuckle pivot pin, upper) (Optional with 109461)

2шт.

26

358959R91

EXTENSION, front axle, w/two Bushings, 358958R1

2шт.

27

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

28

358976R11

FRONT AXLE

AXLE, front, w/two Bushings, 48841D

1шт.

29

358978R1

PIN

front axle pivot

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Front axle pivot pin) (Optional with 110347) 1/4"-28 NPT x .54" lg

1шт.

30

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, straight, 1/4" (Front axle pivot pin) (Optional with 109454)

1шт.

31

Q3537

HEADED PIN,3/8" x 4 1/8"

PIN, headed, locking, 3/8 x 4-1/8" (Front axle pivot pin)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

32

358969R1

BOLSTER, lower

1шт.

179955

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"

2шт.

179959

SCREW, cap, hex-hd., 3/4-10NC x 3-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

33

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

34

350558R1

BOLT

front axle clamp

4шт.

103031

TROUGH

NUT, hex., 3/4-16NF

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

35

350556R1

CLAMP

front axle

4шт.

36

358967R91

KNUCKLE, steering, L.H., assembly (Composed of -

1шт.

358960R1

KNUCKLE

1шт.

48704D

SEAL

OIL SEAL

1шт.

358966R1

PIN

1шт.

48701D

SHIELD

1шт.

51901D

SPACER

1шт.

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

)

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

37

360385R91

STAY ROD, auxiliary, assembly (Composed of -

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

359003R1

CLAMP

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

359004R1

CLAMP

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

359002R1

END

1шт.

359001R1

END

1шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW

2шт.

360386R1

TUBE

1шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

38

359001R1

END, adjustable, auxiliary stay rod

2шт.

103031

TROUGH

NUT, hex., 3/8-16NF

2шт.

181513

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

39

359003R1

CLAMP

auxiliary stay rod (Adjustable end)

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

40

360386R1

TUBE, auxiliary stay rod

2шт.

41

359004R1

CLAMP

auxiliary stay rod (Threaded end)

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

42

359002R1

END, threaded, auxiliary stay rod

2шт.

103031

TROUGH

NUT, hex., 3/4-16NF

2шт.

181513

SCREW, cap, hex-hd., 3/4-16NF x 2-1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

43

359006R1

BOLT

BOLT, auxiliary stay rod mounting, front

8шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

44

359005R1

BRACKET, auxiliary stay rod mounting, front

4шт.

360384R91

ATTACHMENT, auxiliary stay rod (Consists of two each of Ref.# 38 - 44)

1шт.
