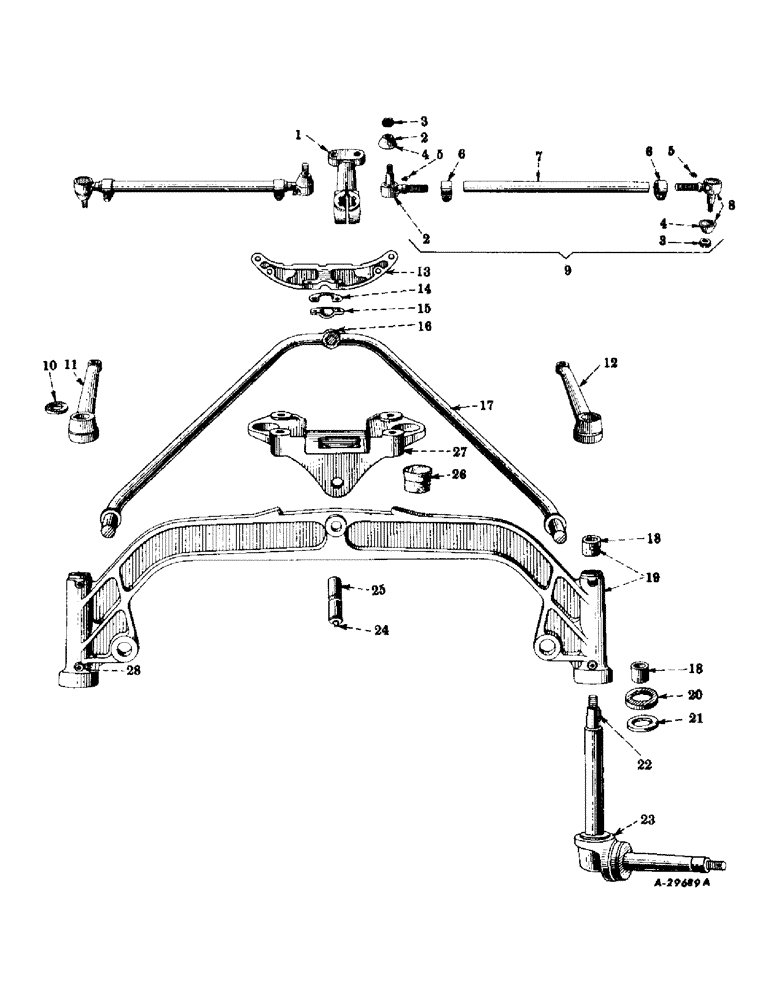

Запчасти Case IH SUPER-H (117) - CHASSIS, FRONT AXLE, BOLSTER AND STEERING CONNECTIONS, SUPER "HV" TRACTORS 501 TO 21621 (12) - CHASSIS

1

358348R1

ARM, steering gear

1шт.

425-1110

NUT,5/8"-18, G5

2шт.

181488

SCREW, cap, hex-hd., 5/8-18NF x 3"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

358352R91

END, tie rod, assembly (L.H. thd.) (Thompson Products 18SV171-A) (Composed of -

2шт.

358900R1

SEAL

COVER

1шт.

END

1шт.

358901R1

SLOTTED NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

3

358901R1

SLOTTED NUT

tie rod end (5/8-18NF) (Thompson Products 10MN38)

4шт.

4

358900R1

SEAL

COVER, dust (Thompson Products 14DC58)

4шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Tie rod) (Lincoln 5000) (Optional with 119512) 1/8"-27 x .66 lg

4шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Tie rod) (Alemite 1610) (Optional with 109461)

4шт.

6

358354R1

CLAMP, tie rod (Thompson Products 18MN5)

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-7/8"

4шт.

7

358351R1

TUBE, tie rod (Thompson Products 18RT375) 1.125" OD, 18.25" Length

2шт.

8

358353R91

END, tie rod, assembly (R.H. thd.) (Thompson Products 18SV157-A-1) (Composed of -

2шт.

358900R1

SEAL

COVER

1шт.

END

1шт.

358901R1

SLOTTED NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

9

358347R91

TIE ROD, assembly (Thompson Products 18T419) (Composed of -

2шт.

358354R1

CLAMP

2шт.

358352R91

END

1шт.

358353R91

END

1шт.

25-118

NUT,1/2"-20, G5

2шт.

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW

2шт.

358351R1

TUBE 1.125" OD, 18.25" Length

1шт.

10

65087D

WASHER, retaining, steering knuckle arm

2шт.

11

358349R1

ARM, steering knuckle, L.H.

1шт.

12

358350R1

ARM, steering knuckle, R.H.

1шт.

13

9494D

SOCKET, ball, stay rod

1шт.

179934

SCREW, cap, hex-hd., 5/8-11NC x 2-3/4"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

60762D

SHIM

stay rod ball socket cap

4шт.

15

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

181433

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 1-3/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16

10546D

BALL

stay rod

1шт.

17

358605R11

ROD, stay, w/Ball, 10546D

1шт.

128127

GUIDE

NUT, jam, hex., 1-1/2-12NF

2шт.

118029

WASHER, lock, special light, 1-1/2"

2шт.

18

353267R1

BUSHING, steering knuckle pivot

4шт.

19

356607R21

AXLE, front, w/four Bushing, 353267R1

1шт.

20

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

thrust, steering knuckle pivot

2шт.

21

55412D

WASHER

WASHER, felt, steering knuckle pivot

2шт.

22

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

KEY, Woodruff, No. 24, 1/4 x 1-1/2" (Steering knuckle arm)

2шт.

23

65085DC

KNUCKLE, steering, assembly (Composed of -

2шт.

55238DE

KNUCKLE

1шт.

48704D

SEAL

OIL SEAL

1шт.

65086D

PIN

1шт.

48701D

SHIELD

1шт.

51901D

SPACER

1шт.

48702D

WASHER,57.15mm ID x 82.55mm OD x 4.76mm Thk

)

1шт.

115781

NUT

hex., 1-14NF

2шт.

121326

WASHER,1"

LOCK, 1"

2шт.

24

Q3673

FITTING

lubrication, angle, 45 degrees (Front axle pivot) (Lincoln 5245) (Optional with 36177D)

1шт.

24

36177D

FITTING, lubrication, angle, 45 degrees (Front axle pivot) (Alemite 1695) (Optional with Q3673)

1шт.

25

65084D

PIVOT, front axle

1шт.

26

12522D

BUMPER, rubber, front axle

2шт.

27

356606R1

BOLSTER, lower

1шт.

280136

NUT,3/8"-16, G8

2шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-3/4"

2шт.

179954

SCREW, cap, hex-hd., 3/4-10NC x 2-1/2"

2шт.

179959

SCREW, cap, hex-hd., 3/4-10NC x 3-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

28

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Steering knuckle pivot) (Alemite 9610) (Optional with 109461)

4шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Steering knuckle pivot) (Lincoln 5000) (Optional with 119512) 1/8"-27 x .66 lg

4шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
