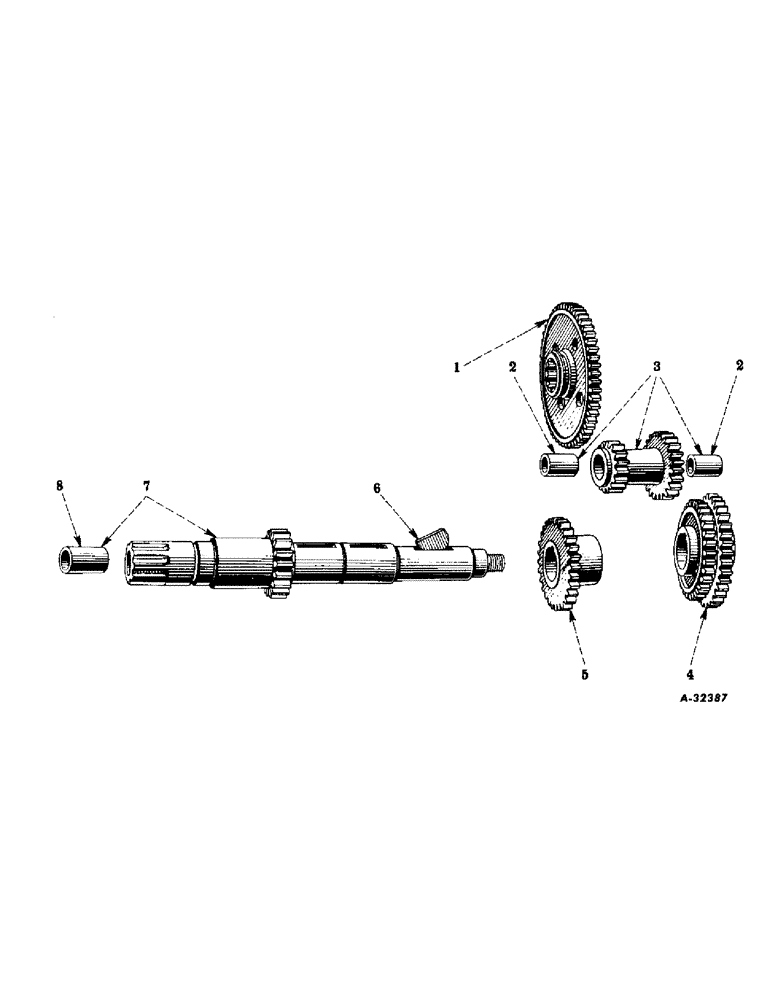

Запчасти Case IH SUPER-H (111) - CHASSIS, LOW-LOW SPEED ATTACHMENT, SUPER "H" ONLY (12) - CHASSIS

360447R91

ATTACHMENT, low-low speed (For tractors equipped with Pneumatic Front Wheel and Weight Attachments, 48600D and 48602D)

1шт.

1

53232DA

GEAR, sliding, first and reverse speed (53 teeth)

1шт.

2

43312DA

BUSHING,28.39mm ID x 31.69mm OD x 31.75mm L

reverse idler gear

2шт.

3

360441R11

GEAR, reverse idler (16 and 22 teeth), w/two Bushings, 43312DA (Optional with 360442R11)

1шт.

3

360442R11

GEAR, reverse idler (16 and 22 teeth), w/two Bushings, 43312DA (Optional with 360441R11)

1шт.

4

360443R1

GEAR, third and fourth speed driving (34 and 39 teeth)

1шт.

5

360444R1

GEAR, second speed driving (29 teeth) (Optional with 360445R1)

1шт.

5

360445R1

GEAR, second speed driving (29 teeth) (Optional with 360444R1)

1шт.

6

117987

KEY

Woodruff, No. 27, 1/4 x 2-1/8" (Transmission countershaft)

3шт.

7

60123DAX

COUNTERSHAFT, transmission and first speed driving gear (17 teeth), w/Bushing, 43328D

1шт.

8

43328D

BUSHING,22.67mm ID x 26.36mm OD x 33.27mm L

BUSHING, countershaft and first speed driving gear

1шт.
