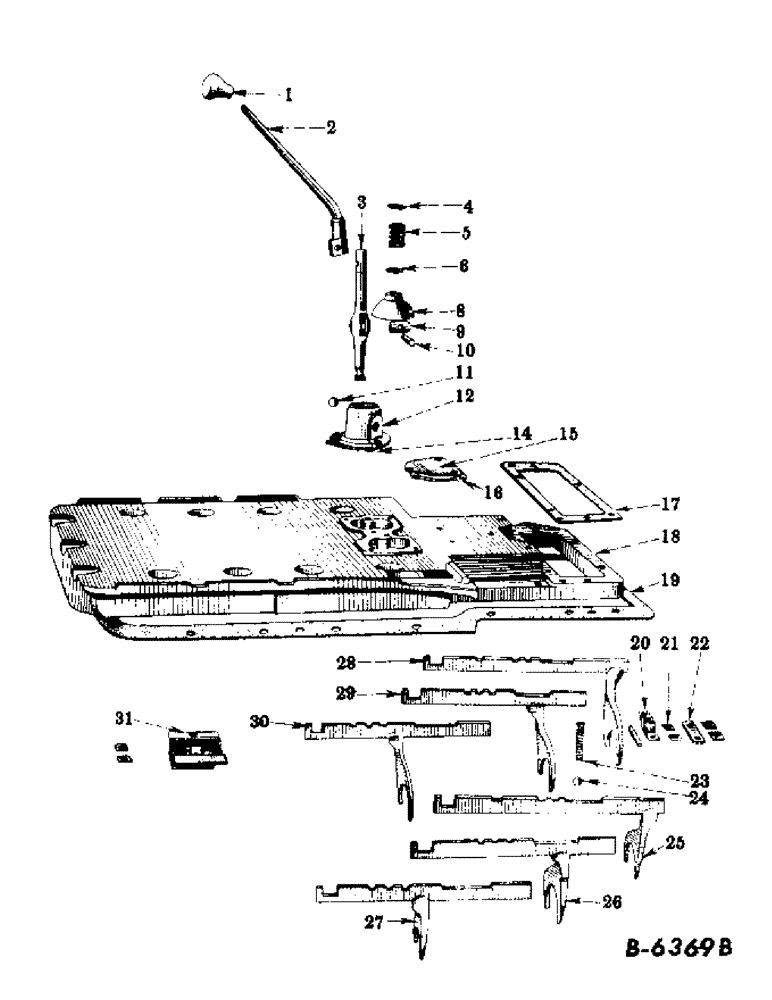

Запчасти Case IH SUPER-H (108) - CHASSIS, REVERSE OPERATION ATTACHMENT (12) - CHASSIS

358407R92

ATTACHMENT, reverse operation (rear frame cover and gear shifter rails for forward or reverse operation on tractors equipped with 10-38 or 11-38 pneumatic tires)

1шт.

358406R92

ATTACHMENT, reverse operation (gear shifter rails for tractors equipped with rear frame cover adaptable to forward or reverse operation)

1шт.

1

53717DA

BUTTON

BALL, gear shift lever

1шт.

2

359238R91

HANDLE, gear shift lever (will work for 355177R11)

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

350298R1

END, gear shift lever

1шт.

4

1657E

STOP

gear shift lever spring, upper

1шт.

5

29547D

SPRING

gear shift lever

1шт.

6

1657E

STOP

gear shift lever spring, lower

1шт.

8

355889R11

SHIELD

gear shift lever swivel housing, w/pin, 103408 (optional with 356665R91)

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, Split (Cotter), 3/16" x 1 1/4"

1шт.

8

356665R91

SHIELD, gear shift lever swivel housing, w/bushing, 20887DA and pin, 103408 (optional with 355889R11)

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, Split (Cotter), 3/16" x 1 1/4"

1шт.

9

40465DA

SHAFT

gear shift lever, large

1шт.

10

357003R1

AXLE PIN,11.11mm OD x 57.15mm L

SHAFT, gear shift lever swivel, small

1шт.

11

172529

PLUG

gear shift lever swivel housing hole

2шт.

12

355176R1

HOUSING, gear shift lever swivel

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

355173R1

GASKET, gear shift swivel housing

1шт.

15

355175R1

COVER, gear shift opening

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16

355173R1

GASKET, gear shift swivel housing

1шт.

17

49619DA

GASKET, pulley drive opening cover

1шт.

18

355189R2

COVER, rear frame

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-3/4"

2шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3"

10шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

13шт.

19

48646D

GASKET

rear frame cover

1шт.

20

48544D

GUIDE

gear shifter rail, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

59473D

LOCK

gear shifter rail guide bolt

6шт.

22

48391D

PLATE, stop, gear shifter rail

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

41058DA

SPRING

gear shifter poppet

4шт.

24

13722D

BALL

POPPET, gear shifter (optional with D2616

4шт.

24

D2616

BALL

POPPET, gear shifter (optional with 13722D)

4шт.

25

358411R11

RAIL AND FORK, shifter, fourth and fifth speed (reverse operation)

1шт.

26

358410R91

RAIL AND FORK, shifter, second and third speed (reverse operation)

1шт.

27

355167R11

RAIL AND FORK, shifter, first and reverse speed (reverse operation)

1шт.

28

358409R11

RAIL AND FORK, shifter, fourth and fifth speed (forward operation)

1шт.

29

358408R11

RAIL AND FORK, shifter, second and third speed (forward operation)

1шт.

30

355170R91

RAIL AND FORK, shifterfirst and reverse speed (forward operation)

1шт.

31

355739R91

GUIDE

gear shift rail, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

20887DA

BUSHING, gear shift swivel housing shield (used w/shield, 356665R91)

1шт.

43325D

COVER, power take-off (illustrated w/rear frame)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

43324D

GASKET

GASKET, power take-off cover (illustrated w/rear frame)

1шт.

49789D

GASKET

rear axle carrier (illustrated w/rear axle)

2шт.

5023EB

LEVER, hydraulic control shaft, outer (illustrated w/pump unit, hydraulic section)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q357

WASHER, plain, 13/32" I.D. x 2" O.D. x No. 18ga.

1шт.

350282R92

PEDAL, brake, assembly, L.H. (illustrated with brakes and connections)

1шт.

358413R91

PEDAL, brake, w/fitting, 66584D (illustrated w/brakes and connections)

1шт.

358412R91

PEDAL, clutch, w/fitting, 66584D (illustrated w/clutch housing and connections)

1шт.

4022D

RING, seal, bull pinion shaft bearing cage (llustrated w/rear axle and differential)

2шт.
