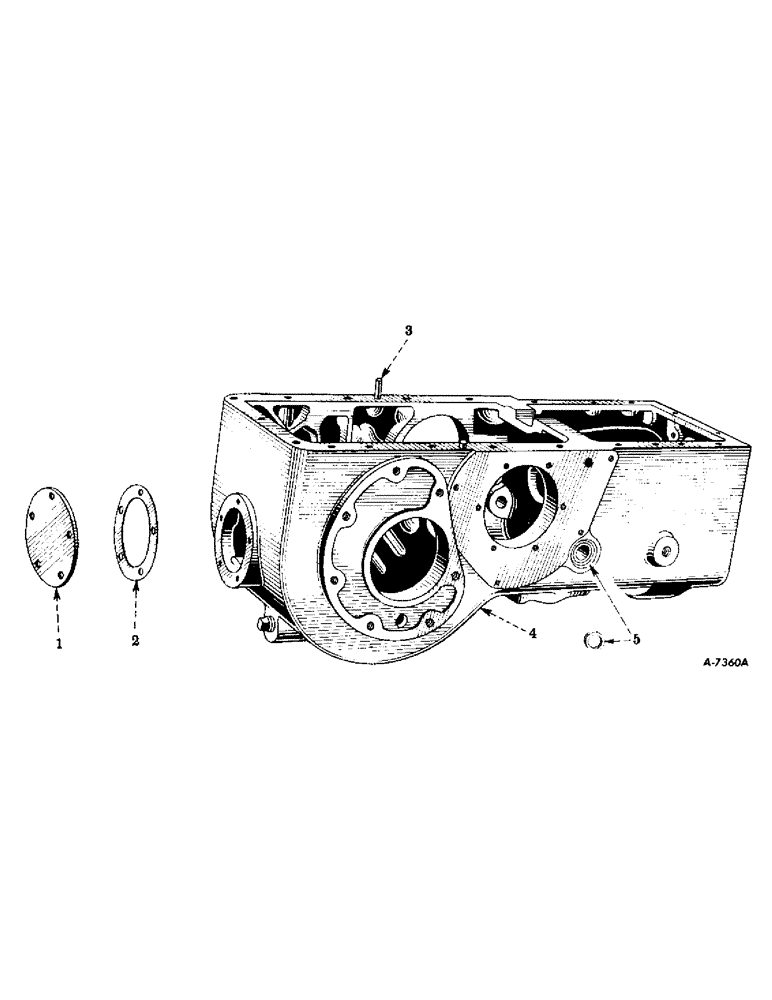

Запчасти Case IH SUPER-H (103) - CHASSIS, REAR FRAME (12) - CHASSIS

1

43325D

COVER, power take-off opening hole

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

2

43324D

GASKET

GASKET, power take-off opening hole cover

1шт.

3

48651D

DOWEL, rear frame cover

3шт.

4

8276DFX

FRAME, rear, assembly (Composed of -

1шт.

48651D

DOWEL

3шт.

8276DF

FRAME

1шт.

354514R91

SEAL

OIL SEAL

2шт.

103867

PLUG

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

1шт.

103870

PLUG

1шт.

172578

PLUG,Exp, 1 3/4"

)

1шт.

103867

PLUG

pipe, 3/8"

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

103870

PLUG, pipe, 1"

1шт.

5

354514R91

SEAL

OIL SEAL, brake pedal shaft (Optional with 360076R91 or 555397R91)

2шт.

5

360076R91

SEAL

OIL SEAL, brake pedal shaft (Optional with 354514R91 or 555397R91)

2шт.

5

555397R91

SEAL

OIL SEAL, brake pedal shaft (Optional with 354514R91 or 360076R91)

2шт.
