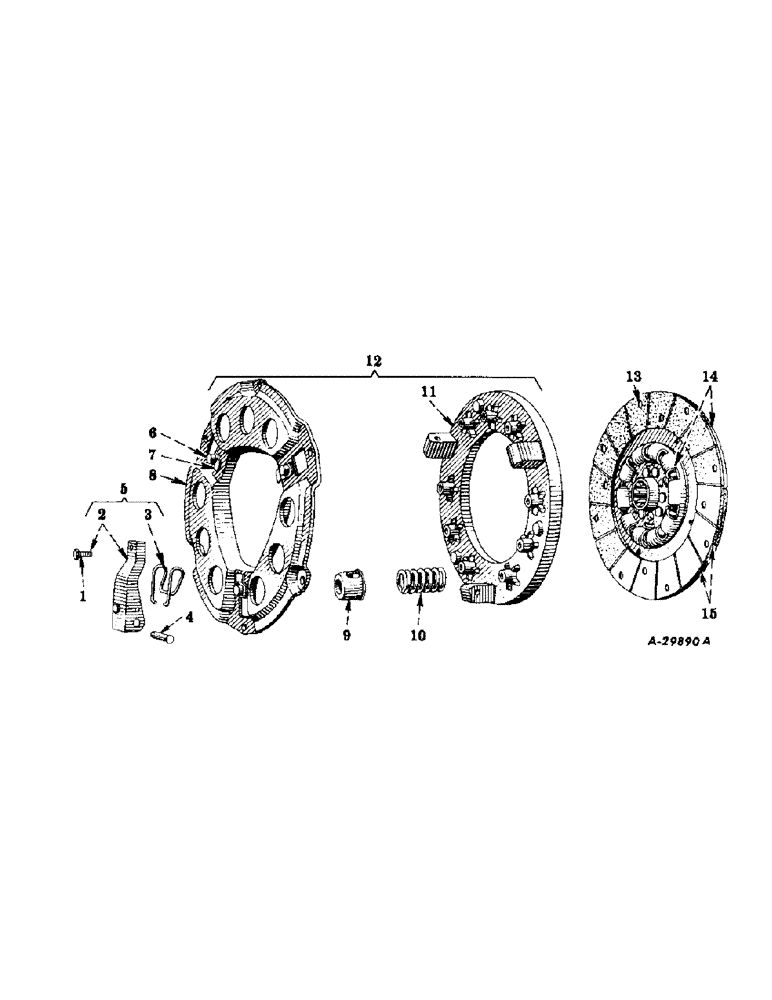

Запчасти Case IH SUPER-H (101) - CHASSIS, CLUTCH, ROCKFORD (12) - CHASSIS

358041R92

CLUTCH (10-1/2"), assembly (Driven disc and pressure plate) (Mfr's. No. CLA-2210-1)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

357301R1

ADJUSTMENT SCREW

adjusting (Mfr's.#CL-8875)

3шт.

2

358560R91

LEVER, w/Screw, 357301R1 (Mfr's.#UCL-9157)

3шт.

3

353318R1

SPRING, lever (Mfr's. No. CL-7098)

3шт.

4

52846D

PIN

lever (Mfr's. #CL-4404)

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

5

358559R91

LEVER, clutch, assembly (Composed of -

1шт.

358560R91

LEVER, assembly

3шт.

52846D

PIN

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

353318R1

SPRING)

3шт.

6

358561R1

SEAT, lever adjusting screw (Mfr's.# CL-9154)

3шт.

7

353313R1

CLIP

lever spring (Mfr's. No. CL-7099)

3шт.

8

358557R91

PLATE, back, w/three Clips, 353313R1 and three Seats, 358561R1 (Mfr's#UCL-9351)

1шт.

9

353316R1

SPRING CUP

CUP, clutch pressure spring (Mfr's.#CL-6847)

12шт.

10

52907D

SPRING

clutch (Mfr's. No. CL-23217-9)

9шт.

10

358593R91

SPRING

PACKAGE, clutch pressure spring (Consists of nine Springs, 52907D)

1шт.

11

358558R1

PLATE, pressure (Mfr's.#CL-9156)

1шт.

12

358555R91

PLATE, pressure, clutch, assembly (Mfr's.#UCLA-9153) (Composed of -

1шт.

353316R1

SPRING CUP

CUP

9шт.

358559R91

LEVER, assembly

1шт.

358557R91

PLATE, assembly

1шт.

358558R1

PLATE

1шт.

358593R91

SPRING

package)

1шт.

13

53795V

RIVET,Csk Hd, 3/16" x 5/16"

brs., tubular, csk-hd., 3/16 x 5/16"

14шт.

14

358556R92

PLATE

DISC, driven, clutch, w/Facing, 358592R11 (Mfr's.# UCL-20-3846)

1шт.

15

358592R11

FACING

PACKAGE, clutch facing (Consists of two Facings, w/fourteen Rivets, 53795V)

1шт.
