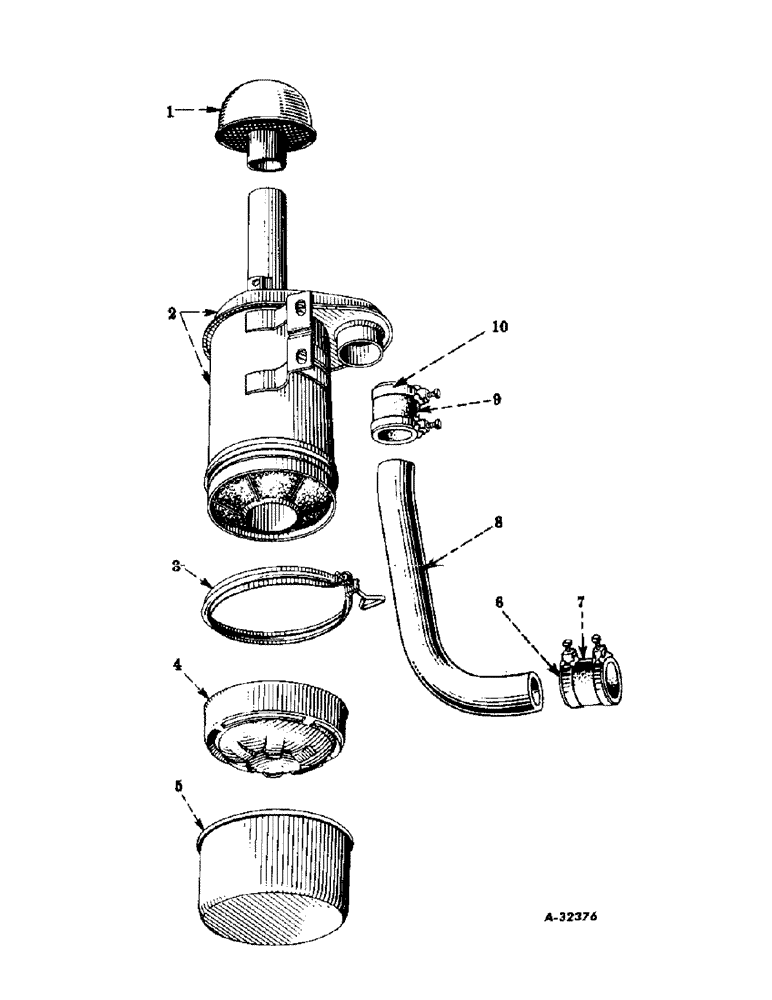

Запчасти Case IH SUPER-H (096) - CHASSIS, AIR CLEANER, UNITED SPECIALTIES, AND CONNECTIONS (12) - CHASSIS

359217R91

CLEANER, air, assembly (United Specialties) (Optional with 358016R91) (Mfr's. No. CTX52-D7655G) (Composed of -

1шт.

359706R1

BAFFLE

1шт.

359705R91

BODY

1шт.

359708R91

CLAMP

1шт.

359707R1

CUP

1шт.

1

353019R91

CAP

air intake (Donaldson) (Mfr's. No. X-1674-1)

1шт.

2

359705R91

BODY, (Mfr's. No. 330CXIA)

1шт.

280136

NUT,3/8"-16, G8

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

3

359708R91

CLAMP, oil cup retaining (Mfr's. No. 214-BXIA)

1шт.

4

359706R1

BAFFLE, oil cup (Mfr's. No. BX-15406C)

1шт.

5

359707R1

CUP, oil (Mfr's. No. 496-BX5A)

1шт.

6

45813D

CLAMP

air cleaner pipe to carburetor hose (Wittek GM-53)

2шт.

7

51940DA

HOSE, air cleaner, Serial Range: pipe-carburetor

1шт.

8

358019R1

PIPE, air cleaner

1шт.

9

262019R1

HOSE

air cleaner pipe to air cleaner, 2" I.D. x 3" long, 8 ply

1шт.

10

45715D

CLAMP

air cleaner pipe to air cleaner hose (Wittek GM-45)

2шт.
