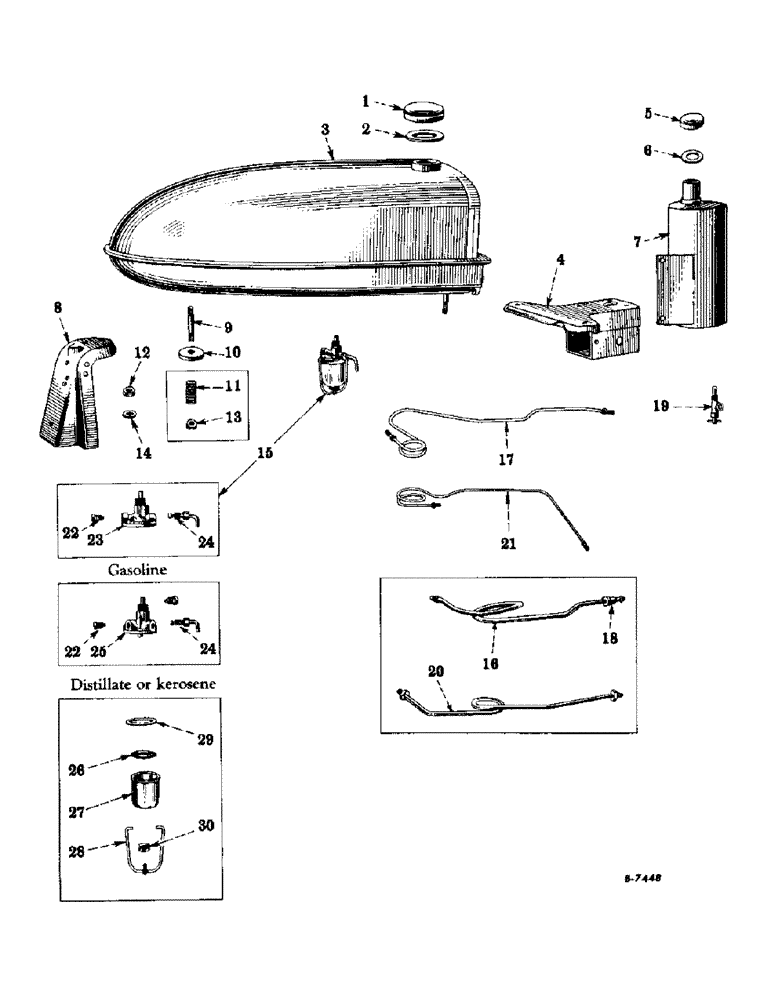

Запчасти Case IH SUPER-H (092) - CHASSIS, FUEL TANK, GASOLINE TANK, SUPPORTS, PIPING AND FUEL STRAINER (12) - CHASSIS

1

23995DB

CAP, fuel tank filler, w/Gasket, 23977DA

1шт.

2

23977DA

GASKET

fuel tank filler cap

1шт.

3

49639DDX

TANK, fuel, w/Cap, 23995DB

1шт.

12331R1

RIVET, csk-hd., tinned, 3/16 x 5/8"

18шт.

4

51117DA

SUPPORT, fuel tank, front (Gasoline)

1шт.

4

359648R91

SUPPORT, fuel tank, front (Distillate or kerosene)

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1" (2 used) (For Tractors, Serial Range: 501-19233)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (2 used) (For Tractors 501 to 19233) 7/16"

4шт.

5

40756D

FILLER CAP

CAP, gasoline tank filler (Distillate or kerosene)

1шт.

6

40752D

GASKET

gasoline tank filler cap (Distillate or kerosene)

1шт.

7

58364DBX

TANK, gasoline, w/filler Cap (Distillate or kerosene)

1шт.

280136

NUT,3/8"-16, G8

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1505

WASHER

13/32" I.D. x 1" O.D. x No. 16 ga.

2шт.

8

354256R21

SUPPORT, fuel tank, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

51122DA

STUD, fuel tank, rear (For Tractors, Serial Range: 501-19233)

1шт.

102646

PULLEY

NUT, slotted, hex., 7/16-20NF

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

9

359480R1

STUD, fuel tank, rear (For Tractors 19234 up)

1шт.

17081R1

NUT

lock, hex., cd-pltd., 7/16-20NF (Esna 22TE-070) (Optional with 82447R1)

1шт.

82447R1

NUT, lock, hex., cd-pltd., 7/16-20NF (Esna 21TE-070) (Optional with 17081R1)

1шт.

9

51122DA

STUD, fuel tank, front (For Tractors, Serial Range: 501-19233)

2шт.

102646

PULLEY

NUT, slotted, hex., 7/16-20NF

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

9

359480R1

STUD, fuel tank, front (For Tractors 19234 up)

2шт.

17081R1

NUT

lock, hex., cd-pltd., 7/16-20NF (Esna 22TE-070) (Optional with 82447R1)

2шт.

82447R1

NUT, lock, hex., cd-pltd., 7/16-20NF (Esna 21TE-070) (Optional with 17081R1)

2шт.

10

51121D

WASHER

PAD, fuel tank

3шт.

11

51124D

SPRING, hold down, fuel tank (For Tractors, Serial Range: 501-19233)

3шт.

12

60671D

INSULATOR BLOCK

PAD, fuel tank insulating, small (For Tractors 19234 up)

3шт.

13

102646

PULLEY

Follows Reference No. 9

1шт.

14

60683D

RETAINER

fuel tank insulating pad, small (For Tractors 19234 up)

3шт.

15

51066DCX

STRAINER ASSY.

See "Fuel Strainer" for detail parts

1шт.

16

358040R11

PIPE, fuel, strainer to carburetor, w/two Nuts, 29899D (Gasoline) (For Tractors, Serial Range: 501-19233)

1шт.

17

359481R11

PIPE, fuel, strainer to carburetor, w/two Nuts, 29899D (Gasoline) (For Tractors 19234 up)

1шт.

18

222-503

TUBE NUT,1/2"-20

NUT, coupling, fuel pipe (Carburetor end)

1шт.

19

55474D

VALVE, needle, gasoline tank

1шт.

19

55474DX

VALVE

needle, gasoline tank, 55474D, w/Nut, 29899D (Distillate or kerosene)

1шт.

20

58367DAX

PIPE, fuel, gasoline tank to strainer, w/two Nuts, 29899D (Distillate or kerosene) (For Tractors, Serial Range: 501-19233)

1шт.

21

359647R11

PIPE, fuel, needle valve to strainer, w/two Nuts, 29899D (Distillate or kerosene) (For Tractors 19234 up)

1шт.

222-503

TUBE NUT,1/2"-20

NUT, coupling, fuel tank needle valve (Distillate or kerosene)

1шт.

15

51066DD

STRAINER, fuel, w/Nut, 29899D (Gasoline) (Will work for 51066DCX) (Mfr's.#45244), (Imperial Brass Mfg. Company)

1шт.

15

58361DB

STRAINER ASSY.

STRAINER, fuel, w/Nut, 29899D (Distillate or kerosene) (Mfr's #45247), (Imperial Brass Mfg. Company)

1шт.

22

222-503

TUBE NUT,1/2"-20

NUT, coupling (Distillate or kerosene) (Mfr's. No. 81-L), fuel strainers (Imperial Brass Mfg. Company)

2шт.

22

222-503

TUBE NUT,1/2"-20

NUT, coupling (Gasoline) (Mfr's. #81-L), fuel strainers (Imperial Brass Mfg. Company)

1шт.

23

259402R91

BODY, strainer (Gasoline) (Mfr's. #44788-2), fuel strainers (Imperial Brass Mfg. Company)

1шт.

24

259403R91

COCK

STEM (Mfr's. #44801-7), fuel strainers (Imperial Brass Mfg. Company)

1шт.

25

354144R91

BODY, strainer (Distillate or kerosene) (Mfr's.#44789-2), fuel strainers (Imperial Brass Mfg. Company)

1шт.

26

13194D

STRAINER ASSY.

SCREEN, strainer (Mfr's.#25854), fuel strainers (Imperial Brass Mfg. Company)

1шт.

27

357957R1

BOWL

strainer (Mfr's. #44801-4), fuel strainers (Imperial Brass Mfg. Company)

1шт.

28

17564D

HOLDER

BAIL (Mfr's. No. 26984-C), fuel strainers (Imperial Brass Mfg. Company)

1шт.

29

355888R1

GASKET

strainer (Mfr's. #44801-3), fuel strainers (Imperial Brass Mfg. Company)

1шт.

30

17565DA

CUP

NUT AND CUP, strainer (Mfr's.#27208-F), fuel strainers (Imperial Brass Mfg. Company)

1шт.
