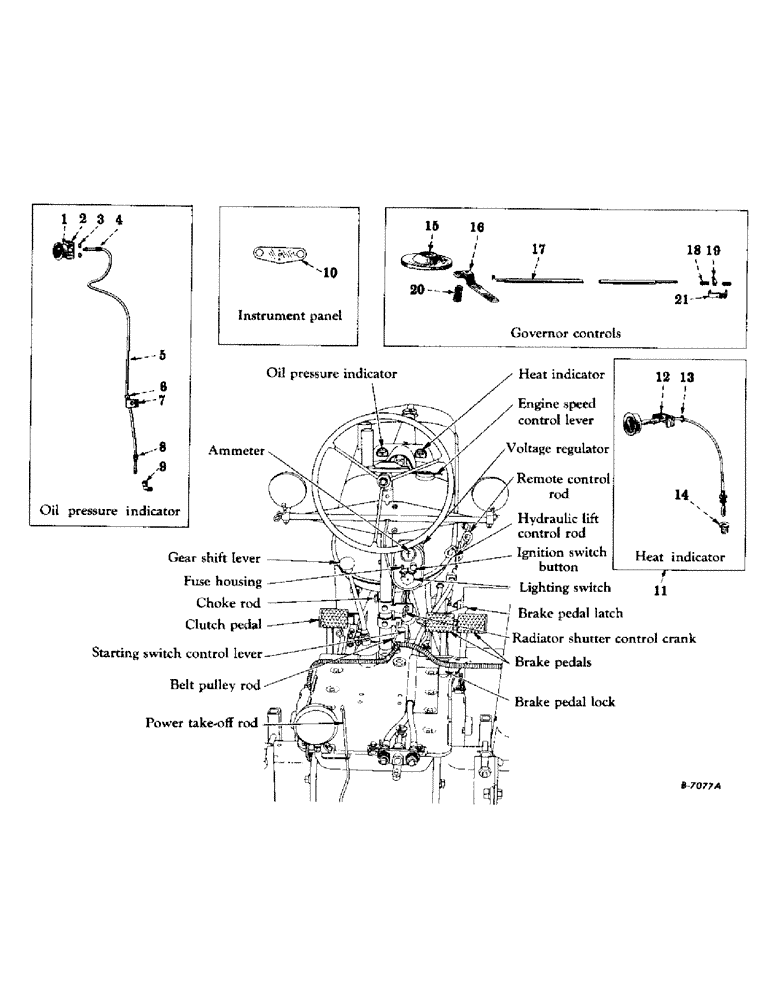

Запчасти Case IH SUPER-H (090) - CHASSIS, ENGINE CONTROLS AND INSTRUMENTS (12) - CHASSIS

1

41934DB

INDICATOR, oil pressure (Work range 0 to 75 lb. per sq. inch)

1шт.

372632A1

SPRING

hex., No. 12-24NC

2шт.

2

60805D

CLAMP, oil pressure indicator

1шт.

3

125750

WASHER, lock, external tooth, No. 12 (Shakeproof 1112) (Oil pressure indicator clamp)

2шт.

4

222-502

TUBE NUT,7/16"-24

NUT, coupling (Oil pipe to engine)

1шт.

5

52642DX

PIPE, oil engine to indicator, w/two Nuts, 29898D

1шт.

6

52728D

CUSHION, oil pipe

1шт.

7

355097R1

CLIP, oil pipe

1шт.

8

222-502

TUBE NUT,7/16"-24

NUT, coupling (Oil pipe to indicator)

1шт.

9

60046D

ELBOW

CONNECTOR, oil, Serial Range: pipe-engine

1шт.

9

60046DX

CONNECTOR, oil pipe to engine, w/Nut, 29898D

1шт.

10

57260D

PANEL, instrument

1шт.

11

67135D

DIPSTICK

INDICATOR, heat (Work range 170 degrees to 220 degrees)

1шт.

103089

hex., No. 12-24NC

2шт.

12

50417D

CLAMP, heat indicator

1шт.

13

125750

WASHER, lock, external-tooth, No. 12 (Heat indicator clamp stud)

2шт.

14

51510D

BUSHING

reducing, heat indicator

1шт.

15

51351DBXA

SECTOR, governor control, w/pivot Pin

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q1505

WASHER

plain, 13/32" I.D. x 1" O.D. x No. 16 ga.

1шт.

16

51348DAX

HANDLE

governor control, w/Hub

1шт.

17

51358DA

ROD, governor control, rear

1шт.

220065

NUT, hex., 5/16-18NC

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

18

51354DA

VALVE SPRING

SPRING, governor control rod equalizer

2шт.

19

51355D

PIVOT

SWIVEL, governor control rod

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

Q243

WASHER

plain, 21/64" I.D. x 3/4" O.D. x No. 16 ga.

1шт.

20

51349D

SPRING

governor control handle

1шт.

21

51353D

EQUALIZER, governor control rod

1шт.

22

358202R1

BRACKET, control (For Tractors, Serial Range: 501-19233)

1шт.

22

360212R1

BRACKET, control (Illustrated with Steering Mechanism) (For Tractors 19234 up)

1шт.

22

358441R1

BRACKET, control (Used with magneto ignition) (For Tractors, Serial Range: 501-19233)

1шт.

22

56682D

BRACKET, control (Used with magneto ignition) (For Tractors 19234 up)

1шт.

114773

NUT, hex., type "A", 7/16-14NC

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

358203R2

ROD, choke (For Tractors, Serial Range: 501-19233)

1шт.

359524R1

ROD, choke (For Tractors 19234 up)

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

1шт.

358204R1

ROD, starting switch control (Illustrated with cranking motor, lever and pull rod) (For Tractors, Serial Range: 501-19233)

1шт.

360211R1

ROD, starting switch control (Illustrated with Cranking Motor, Lever and Pull Rod) (For Tractors 19234 up)

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

51764D

SUPPORT, choke rod

1шт.

13000R1

NUT, hex., type "A", 1/4-20NC (For Tractors, Serial Range: 501-19233)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
