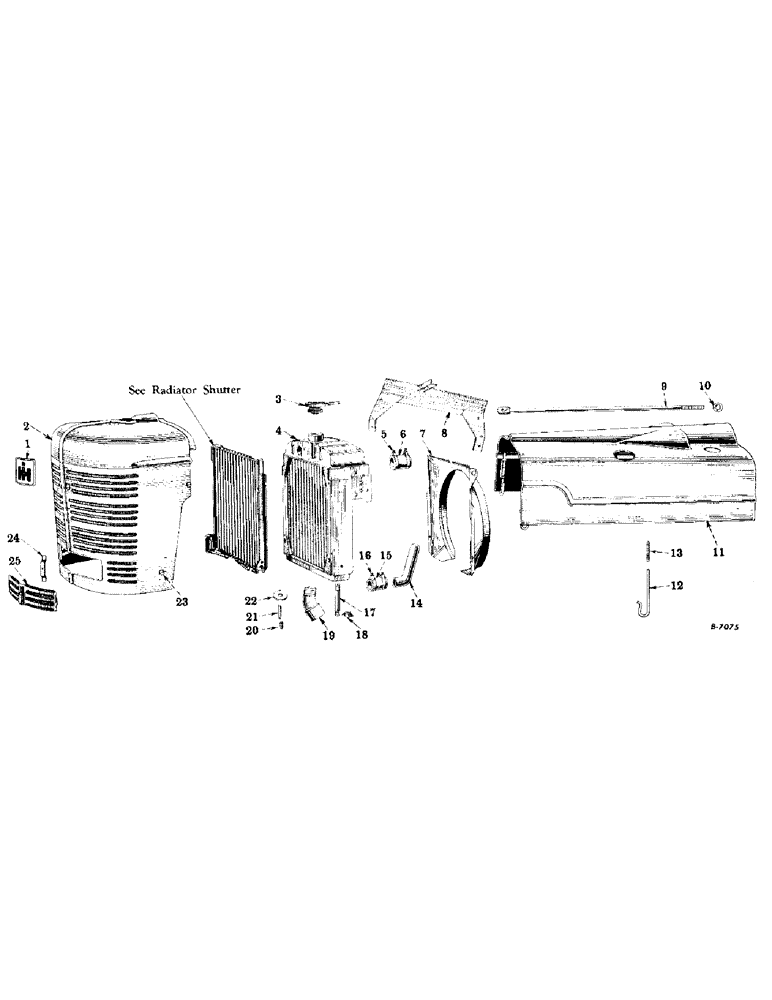

Запчасти Case IH SUPER-H (088) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD (12) - CHASSIS

1

357650R1

PLATE, name (IH)

1шт.

352581R1

SCREW, slotted-csk-fl-hd., No. 6 x 1/2"

2шт.

2

59515DD

GRILLE, radiator

1шт.

3

67448DD

CYLINDER END CAP

CAP, radiator, 352639R91 (Optional with 356710R91)

1шт.

3

356710R91

RADIATOR CAP

CAP, radiator (Optional with 67448DD)

1шт.

4

352628R92

RADIATOR, w/Cap, 67448DD or 356710R91 and two Studs, 48225DA

1шт.

5

357870R91

CLAMP

radiator inlet hose

2шт.

6

351703R1

HOSE

radiator inlet, 1-3/4" I.D. x 3-1/4" long, 3 ply

1шт.

7

50208DBX

HOUSING, fan, w/Extension

1шт.

13539R1

BOLT,Sq Hd, 1/4" - 20 x 4 3/4"

machine, sq-hd., 1/4-20NC x 4-3/4"

4шт.

13000R1

NUT, hex., 1/4-20NC

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

67849D

TIE PLATE, radiator brace

1шт.

13000R1

NUT, hex., 1/4-20NC

4шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

67853D

TIE ROD, radiator

1шт.

280136

NUT,3/8"-16, G8

1шт.

103027

NUT, hex., 7/16-20NF

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

10

19588D

WASHER

lock, internal-tooth (Radiator tie rod)

1шт.

11

49632DAX

HOOD (Distillate or kerosene)

1шт.

11

56452DAX

HOOD (Gasoline)

1шт.

12

50997D

HOOK

hood clamp

4шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

4шт.

13

48707DA

SPRING

hood clamp hook

4шт.

14

353852R1

HOSE

PIPE, radiator outlet (Optional with 48828D)

1шт.

14

48828D

TUBE

PIPE, radiator outlet (Optional with 353852R1)

1шт.

15

48827D

HOSE, radiator outlet, 1-1/2" I.D. x 2-1/2" long, 3 ply

2шт.

16

357870R91

CLAMP

radiator outlet hose

4шт.

17

219326

LUBE NIPPLE,Nipple, 3/8" NPT x 5"

PIPE, radiator drain (3/8" standard pipe 5" long, threaded both ends)

1шт.

17

12579R1

NIPPLE, LUBE

PIPE, radiator drain (3/8" standard pipe 8" long, threaded both ends

1шт.

Tractors equipped with wide front axle in short wheel base position

1шт.

18

13047DA

PLUG

CAP, radiator drain pipe

1шт.

19

120702

ELBOW,45 Degree, 3/8" NPT Street

street, 3/8" (45 degrees) (Radiator drain pipe)

1шт.

For tractors equipped with wide front axle in short wheel base position

1шт.

20

67205D

SPRING

radiator hold-down

2шт.

21

48825DA

STUD, radiator mounting

2шт.

125357

NUT, hex., castellated, cd-pltd., 7/16-20NF

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Q1515

WASHER

plain, 1/2" I.D. x 7/8" O.D. x No. 14 ga.

4шт.

22

18464D

PAD, radiator

2шт.

23

56668D

SCREW

radiator grille fastening

4шт.

24

41273D

PLATE, lock, radiator grille insert

1шт.

25

48963DXA

INSERT, w/Screen, radiator grille

1шт.

110534

SCREW

fl-hd., No. 10-24 x 7/8"

1шт.

114614

WASHER

lock, external-tooth, csk-hd., No. 10 (Radiator grille insert)

1шт.

656830R91

COVER, exhaust pipe opening (Used with exhaust pipe attachment, 355205R92 and 355206R92)

1шт.
